OEM Parts Victory 2014 Victory Highball All Options Fender, Rear - V14wb36 All Options

2014 Victory Highball All Options V14WB36 - Fender, Rear - V14wb36 All Options

Fender, Rear - V14WB36 All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

WLD-FENDER, REAR, VGS, FLAT, BLK

Part #: 1014064-463 Required per assembly: 1
Currently Not Available
1

FENDER, REAR

Part #: 1014064-1373 Required per assembly: 1
Currently Not Available
2

SCR-SOCHD, M8X25

Part #: 7518084 Required per assembly: 4
Currently Not Available
2

SCR-SOCHD, M8X25

Part #: 7518084 Required per assembly: 4
Currently Not Available
3

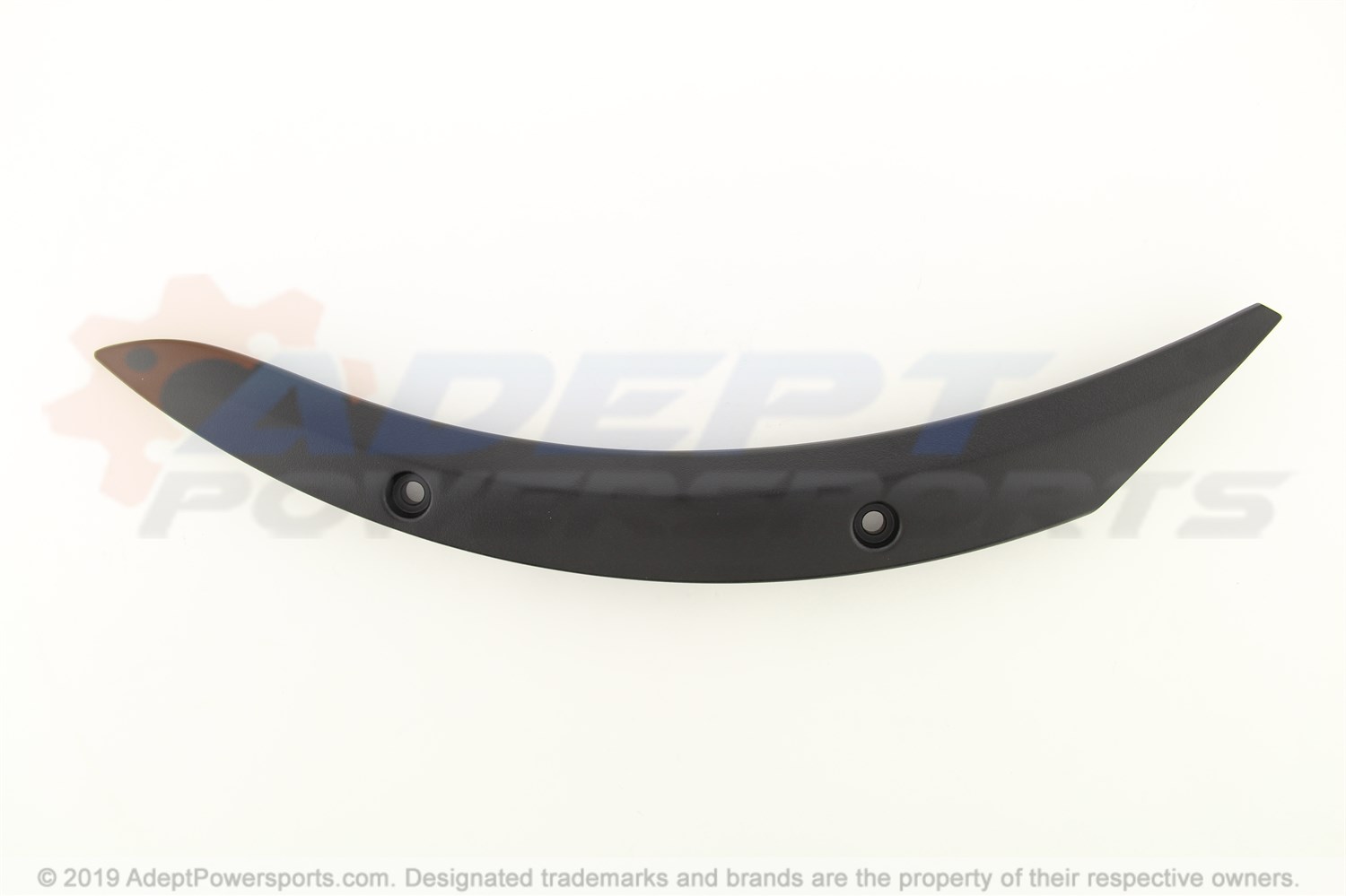

Victory 5631841-521 Cvr-Strut, 180, Lh, Cast, Eng, Blk

CVR-STRUT, 180, LH, CAST, ENG, BLK

Part #: 5631841-521 Required per assembly: 1
Currently Not Available
3
Victory 5631841-521 Cvr-Strut, 180, Lh, Cast, Eng, Blk

CVR-STRUT, 180, LH, CAST, ENG, BLK

Part #: 5631841-521 Required per assembly: 1
Currently Not Available
3

CVR-STRUT, 180, RH, CAST, ENG, BLK

Part #: 5631842-521 Required per assembly: 1
Currently Not Available
3

CVR-STRUT, 180, RH, CAST, ENG, BLK

Part #: 5631842-521 Required per assembly: 1
Currently Not Available
4
Polaris 7671178 Plug-Fender, Rear

PLUG-FENDER, REAR

Part #: 7671178 Required per assembly: 1
Currently Not Available
5
Polaris 7517704 Screw

SCREW

Part #: 7517704 Required per assembly: 4
Currently Not Available
6
Polaris 7556064 Washer, Flat

WASHER, FLAT

Part #: 7556064 Required per assembly: 4
Currently Not Available
7

SLEEVE-SHOULDERED, M6

Part #: 5134082 Required per assembly: 4
Currently Not Available
8
Polaris 7710495 Nut

NUT

Part #: 7710495 Required per assembly: 4
Currently Not Available
9

BRKT-LP, CC, NYLON, 6

Part #: 5435514 Required per assembly: 1
Currently Not Available
