Frame - V14sw36 All Options replacement parts for 2014 Victory Vision All Options

OEM Parts Victory 2014 Victory Vision All Options Frame - V14sw36 All Options

Frame - V14SW36 All Options Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SUBFRAME-COCKPIT, MACH Part #: 5136940 Required per assembly: 1 Currently Not Available
2	WELD-MNT, RETAINER Part #: 1015647 Required per assembly: 1 Currently Not Available

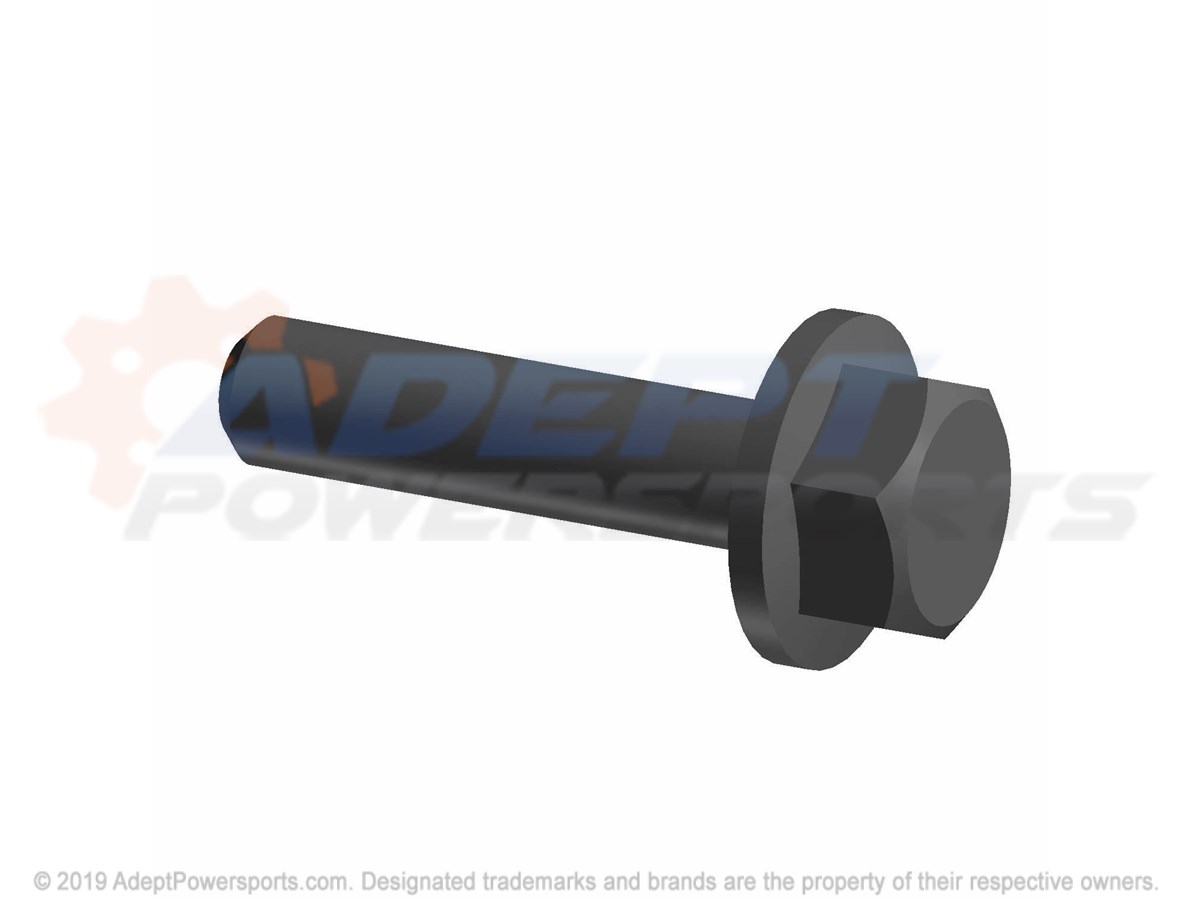

3	SCREW Part #: 7518533 Required per assembly: 1 Note: Screw, Flange Currently Not Available
4	ASM-AIRBOX, FRAME, SUB Part #: 1015629 Required per assembly: 1 Currently Not Available
5	BUMPER-HANDLE CLOSEOUT Part #: 5412969 Required per assembly: 4 Currently Not Available
6	NUT-HEXHD, M12, DIN980V Part #: 7547232 Required per assembly: 2 Currently Not Available
7	FOAM, SUBFRAME, SEAL Part #: 5813251 Required per assembly: 1 Currently Not Available
8	SUPPORT-SADDLEBAG, MACH Part #: 5135560 Required per assembly: 1 Note: INCL. 10 Currently Not Available
9	SCR-HXFLGHD, M8X25, 0600086 Part #: 7518569 Required per assembly: 4 Currently Not Available
10	INSERT Part #: 7547407 Required per assembly: 4 Currently Not Available
11	MAINFRAME-REAR, MACH Part #: 5136288 Required per assembly: 1 Currently Not Available
12	FLAP-DEBRIS Part #: 5813054 Required per assembly: 1 Currently Not Available
13	SCR-M6X1.0, 15, HEX, BUTT, SHLD Part #: 7518484 Required per assembly: 2 Currently Not Available
14	SCR-HEXHD, M8X20, ZINC, 0600088 Part #: 7518097 Required per assembly: 4 Currently Not Available
15	WASHER, FLAT Part #: 7555960 Required per assembly: 4 Currently Not Available
16	WELD-NUT PLATE Part #: 1015484 Required per assembly: 2 Currently Not Available
17	SCR-HEXHD, M10X100 Part #: 7518125 Required per assembly: 2 Currently Not Available
18	WELD-CRUISE CONTROL BRKT Part #: 1017358 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7517950 Required per assembly: 4 Note: 2 PER SIDE Currently Not Available
19	SCREW Part #: 7517950 Required per assembly: 4 Note: 2 PER SIDE Currently Not Available
20	SCR-HXFLGHD, M8X35 Part #: 7517881 Required per assembly: 2 Currently Not Available
21	SCREW Part #: 7517458 Required per assembly: 2 Currently Not Available
22	SCR-HXFLGHD, M8X25, 0600086 Part #: 7518569 Required per assembly: 4 Currently Not Available
23	WELD-LOWER, FRONT, FRAME, BLK Part #: 1016036-266 Required per assembly: 1 Currently Not Available
