Ski replacement parts for 2014 Yamaha Phazer RTX

OEM Parts Yamaha 2014 Yamaha Phazer RTX Ski

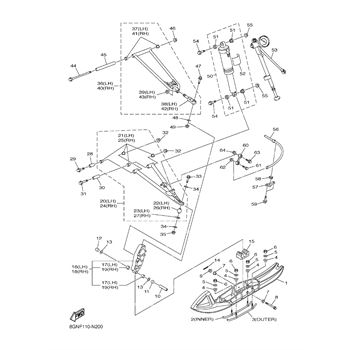

SKI Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GEN II 135MM TUNER SKI BK Part #: SMA-8JPDS-00-00 Required per assembly: 2 $164.17 - + Add to cart
2	8JH CARBIDE PAIR - 9MM RD 2\" Part #: SMA-8JH31-02-00 Required per assembly: 2 Not Available
3	8JH RUNNER SET - NO CARBIDE Part #: SMA-8JH31-01-00 Required per assembly: 2 $54.31 - + Add to cart
4	COLLAR Part #: 90387-08064-00 Required per assembly: 8 $9.99 $9.74 - + Add to cart
5	WASHER, PLATE Part #: 90201-08053-00 Required per assembly: 8 Not Available
6	NUT, NYLON Part #: 95717-08300-00 Required per assembly: 8 Note: ALT. PART $3.04 $2.51 - + Add to cart
7	COLLAR 1 (INDIGO) (INDIGO) Part #: 8EX-F3754-00-00 Required per assembly: 4 $10.49 $7.24 - + Add to cart
8	BOLT, FLANGE Part #: 90105-10070-00 Required per assembly: 2 $13.49 $9.30 - + Add to cart
9	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
10	COLLAR Part #: 90387-1012H-00 Required per assembly: 2 $27.98 $20.32 - + Add to cart
11	COLLAR Part #: 90387-16017-00 Required per assembly: 2 $6.49 $4.34 - + Add to cart
12	COLLAR Part #: 90387-16018-00 Required per assembly: 2 $35.99 $24.95 - + Add to cart
13	WASHER, PLATE Part #: 90201-16022-00 Required per assembly: 4 $10.49 $8.30 - + Add to cart
14	PIN, COTTER Part #: 91490-20025-00 Required per assembly: 2 $1.99 $1.29 - + Add to cart
15	STOPPER 1 Part #: 8GK-23743-00-00 Required per assembly: 2 $63.99 $51.08 - + Add to cart
16	STEERING KNUCKLE ASSEMBLY (LEFT) Part #: 8GK-23501-01-00 Required per assembly: 1 Note: (LEFT) $417.99 $408.53 - + Add to cart
17	BUSH, BIMETAL, FORMED Part #: 90384-16N51-00 Required per assembly: 2 $5.49 $4.43 - + Add to cart
18	STEERING KNUCKLE ASSEMBLY (RIGHT) Part #: 8GK-23502-01-00 Required per assembly: 1 Note: (RIGHT) $324.99 $318.73 - + Add to cart
19	BUSH, BIMETAL, FORMED Part #: 90384-16N51-00 Required per assembly: 2 $5.49 $4.43 - + Add to cart
20	FRONT LOWER ARM COMP. (LEFT) Part #: 8GN-23570-C0-00 Required per assembly: 1 Note: (LEFT) $370.68 - + Add to cart
21	BUSH, SOLID Part #: 90381-16003-00 Required per assembly: 4 $25.98 $21.17 - + Add to cart
22	BALL JOINT 2 Part #: 8GK-23579-01-00 Required per assembly: 1 $136.99 $130.71 - + Add to cart
23	CIRCLIP Part #: 99009-35700-00 Required per assembly: 1 $3.70 $2.49 - + Add to cart
24	FRONT LOWER ARM COMP. (RIGHT) Part #: 8GN-23580-C0-00 Required per assembly: 1 Note: (RIGHT) $370.68 - + Add to cart
25	BUSH, SOLID Part #: 90381-16003-00 Required per assembly: 4 $25.98 $21.17 - + Add to cart
26	BALL JOINT 2 Part #: 8GK-23579-01-00 Required per assembly: 1 $136.99 $130.71 - + Add to cart
27	CIRCLIP Part #: 99009-35700-00 Required per assembly: 1 $3.70 $2.49 - + Add to cart
28	COLLAR Part #: 90387-10093-00 Required per assembly: 2 $22.98 $17.89 - + Add to cart
29	BOLT, FLANGE Part #: 90105-10211-00 Required per assembly: 2 $9.49 $5.85 - + Add to cart
30	COLLAR Part #: 90387-10074-00 Required per assembly: 2 $31.98 $23.51 - + Add to cart
31	BOLT, FLANGE Part #: 90105-10212-00 Required per assembly: 2 $8.49 $5.50 - + Add to cart
32	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 4 $2.70 $2.25 - + Add to cart
33	BOLT, FLANGE Part #: 90105-10210-00 Required per assembly: 2 $7.49 $4.51 - + Add to cart
34	WASHER, PLATE Part #: 90201-10051-00 Required per assembly: 4 $10.49 $7.12 - + Add to cart
35	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
36	FRONT UPPER ARM COMP. (LEFT) Part #: 8GK-23540-C0-00 Required per assembly: 1 Note: (LEFT) $260.11 - + Add to cart
37	BUSH, SOLID Part #: 90381-15003-00 Required per assembly: 2 $31.98 $23.15 - + Add to cart
38	BALL JOINT 1 Part #: 8GK-23549-00-00 Required per assembly: 1 $170.99 $146.06 - + Add to cart
39	NUT, SELF-LOCKING, (8BF) Part #: 95607-14200-00 Required per assembly: 1 $13.49 $9.99 - + Add to cart
40	FRONT UPPER ARM COMP. (RIGHT) Part #: 8GK-23550-C0-00 Required per assembly: 1 Note: (RIGHT) $263.22 - + Add to cart
41	BUSH, SOLID Part #: 90381-15003-00 Required per assembly: 2 $31.98 $23.15 - + Add to cart
42	BALL JOINT 1 Part #: 8GK-23549-00-00 Required per assembly: 1 $170.99 $146.06 - + Add to cart
43	NUT, SELF-LOCKING, (8BF) Part #: 95607-14200-00 Required per assembly: 1 $13.49 $9.99 - + Add to cart
44	BOLT, FLANGE Part #: 90105-10213-00 Required per assembly: 2 $18.48 $15.23 - + Add to cart
45	COLLAR Part #: 90387-10073-00 Required per assembly: 2 $32.99 $24.89 - + Add to cart
46	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
47	BOLT Part #: 91312-10045-00 Required per assembly: 2 $5.59 $4.08 - + Add to cart
48	WASHER, PLATE Part #: 90201-10052-00 Required per assembly: 2 $9.49 $6.17 - + Add to cart
49	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
50	ABSORBER ASSEMBLY 1 Part #: 8GN-F376A-A0-00 Required per assembly: 2 Not Available
51	BUSH Part #: 8GN-2376B-09-00 Required per assembly: 4 $49.99 $41.87 - + Add to cart
53	FOX MEGA FLOAT PUMP AP Part #: SMA-MEGAF-PU-MP Required per assembly: 1 $142.99 $140.07 - + Add to cart
54	BOLT, FLANGE Part #: 95817-10045-00 Required per assembly: 4 $6.99 $4.45 - + Add to cart
55	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 4 $2.70 $2.25 - + Add to cart
56	BAR, STABILIZER, FRONT Part #: 8GN-2386E-00-00 Required per assembly: 1 Note: AP (14MM) $299.99 $268.95 - + Add to cart
57	HOLDER, STABILIZER, FRONT Part #: 8GN-2386C-00-00 Required per assembly: 2 $41.99 $33.82 - + Add to cart
58	BUSH, STABILIZER, FRONT Part #: 8GN-2386G-00-00 Required per assembly: 2 Note: AP (14.1MM) $12.49 $10.27 - + Add to cart
59	BOLT, FLANGE Part #: 95812-08020-00 Required per assembly: 4 $2.79 $1.66 - + Add to cart
60	JOINT, STABILIZER, 1 Part #: 8GN-2385L-00-00 Required per assembly: 2 $110.98 $95.79 - + Add to cart
61	BOLT, HEX Part #: 97017-10035-00 Required per assembly: 2 Note: YTM200K $8.49 $5.70 - + Add to cart
62	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
63	BOLT, FLANGE Part #: 95817-08040-00 Required per assembly: 2 $7.49 $5.32 - + Add to cart
64	NUT, SELF-LOCKING Part #: 90185-08169-00 Required per assembly: 2 $9.49 $6.97 - + Add to cart
