OEM Parts Yamaha 2014 Yamaha RS90PLTER Headlight

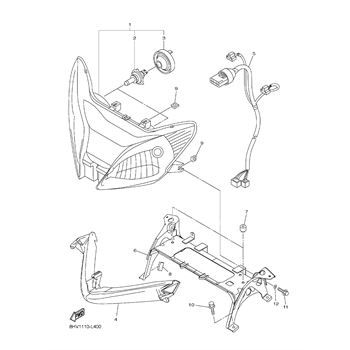

2014 Yamaha RS90PLTER - Headlight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

HEADLIGHT UNIT ASSEMBLY

Part #: 8FP-84310-00-00 Required per assembly: 1
$528.30
-
+
Add to cart
2

BULB, HEADLIGHT, (12V-60/55W)

Part #: 8FP-84314-00-00 Required per assembly: 2 Note: (12V-60/55W)
$44.99
$35.20
-
+
Add to cart
3

COVER, SOCKET

Part #: 5GJ-84397-00-00 Required per assembly: 2
$36.99
$25.73
-
+
Add to cart
4

DAMPER, HEADLIGHT, 1

Part #: 8FP-84366-00-00 Required per assembly: 1
$107.98
$92.44
-
+
Add to cart
5

CORD, HEADLIGHT

Part #: 8HV-84359-00-00 Required per assembly: 1
$81.98
$73.98
-
+
Add to cart
6

STAY, HEADLIGHT, 1

Part #: 8HV-84118-00-00 Required per assembly: 1
$253.99
$247.05
-
+
Add to cart
7

STOPPER, MAIN, STAND

Part #: 1UJ-27114-00-00 Required per assembly: 2
$7.49
$6.00
-
+
Add to cart
8

TAPE 4

Part #: 8FA-7717H-00-00 Required per assembly: 1
$1.75
$1.47
-
+
Add to cart
9

NUT, SPRING

Part #: 90183-06100-00 Required per assembly: 4
$11.49
$7.74
-
+
Add to cart
10

BOLT, FLANGE

Part #: 95817-06016-00 Required per assembly: 4
$1.95
$1.47
-
+
Add to cart
11

BOLT, HEXAGON, DEEP, RECESS

Part #: 97D95-06016-00 Required per assembly: 2
$2.75
$1.87
-
+
Add to cart
12

WASHER, SPRING

Part #: 92995-06100-00 Required per assembly: 2 Note: Sold in multiples of 5 only
$3.45
$3.24
-
+
Add to cart
