Brake replacement parts for 2014 Yamaha RX10PXTEL

OEM Parts Yamaha 2014 Yamaha RX10PXTEL Brake

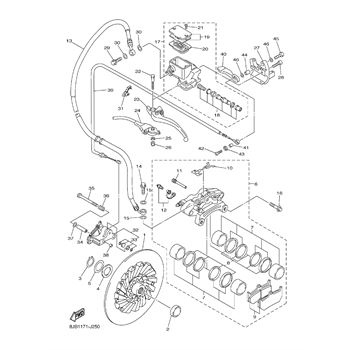

BRAKE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	DISK BRAKE ASSEMBLY Part #: 8GL-2581T-00-00 Required per assembly: 1 $245.99 $220.09 - + Add to cart
2	COLLAR Part #: 90387-25021-00 Required per assembly: 1 $36.99 $30.07 - + Add to cart
3	CIRCLIP Part #: 99009-22400-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
4	WASHER, PLATE, (T=1.0) Part #: 90201-225A4-00 Required per assembly: 1 $10.49 $7.70 - + Add to cart
5	WASHER, PLATE, (T=0.5) Part #: 90201-222F0-00 Required per assembly: 3 Note: (T=0.5) (T=0.5) UN $7.99 $5.79 - + Add to cart
6	CALIPER ASSEMBLY (LEFT) Part #: 8FU-2580T-01-00 Required per assembly: 1 Note: (LEFT) $492.99 $484.31 - + Add to cart
7	PISTON, ASSEMBLY, CALIPER Part #: 8FU-W0057-00-00 Required per assembly: 2 $113.98 $102.74 - + Add to cart
8	CALIPER SEAL KIT Part #: 3JD-W0047-10-00 Required per assembly: 1 $61.99 $50.92 - + Add to cart
9	BRAKE PAD KIT 2 Part #: 8FU-W0046-01-00 Required per assembly: 1 $67.98 $61.30 - + Add to cart
10	SUPPORT, PAD Part #: 8FU-25919-00-00 Required per assembly: 1 $18.98 $15.74 - + Add to cart
11	PIN, PAD Part #: 8FU-25924-00-00 Required per assembly: 1 $13.49 $10.69 - + Add to cart
12	BLEED SCREW KIT Part #: 8CR-W0048-00-00 Required per assembly: 2 $14.49 $9.53 - + Add to cart
13	HOSE, BRAKE, 1 Part #: 8GT-25872-20-00 Required per assembly: 1 $65.98 $59.65 - + Add to cart
14	BOLT, UNION Part #: 90401-10015-00 Required per assembly: 1 $12.49 $9.75 - + Add to cart
15	WASHER, PLATE Part #: 90201-10118-00 Required per assembly: 2 Note: Sold in multiples of 5 only $3.79 $2.84 - + Add to cart
16	BOLT, FLANGE Part #: 90105-10096-00 Required per assembly: 2 $11.49 $8.69 - + Add to cart
17	MASTER CYLINDER SUB ASSEMBLY Part #: 8FA-W2587-00-00 Required per assembly: 1 $267.99 $251.02 - + Add to cart
18	CYLINDER, KIT, MASTER Part #: 8CR-W0041-00-00 Required per assembly: 1 $62.99 $47.90 - + Add to cart
19	RESERVOIR CAP SET Part #: 8CR-W2585-00-00 Required per assembly: 1 $44.99 $35.12 - + Add to cart
20	DIAPHRAGM, RESERVOIR Part #: 55U-25854-00-00 Required per assembly: 1 $30.98 $21.30 - + Add to cart
21	SCREW, FLAT, HEAD Part #: 98707-04012-00 Required per assembly: 2 Note: Sold in multiples of 5 only $1.85 $1.41 - + Add to cart
22	BOLT, LEVER Part #: 8CR-2589F-00-00 Required per assembly: 1 $7.49 $5.96 - + Add to cart
23	LEVER, 1, ADJUSTABLE Part #: 8DN-83912-00-00 Required per assembly: 1 $61.99 $51.03 - + Add to cart
24	STOP SWITCH ASSEMBLY Part #: 8FP-82530-00-00 Required per assembly: 1 $53.99 $44.11 - + Add to cart
25	WASHER, PLAIN Part #: 8CR-8398X-00-00 Required per assembly: 1 $11.99 $8.62 - + Add to cart
26	NUT, FLANGE, (4GB) Part #: 95707-05300-00 Required per assembly: 1 $4.54 $2.69 - + Add to cart
27	BRACKET, MASTER, CYLINDER Part #: 8FA-25867-00-00 Required per assembly: 1 $34.99 $28.02 - + Add to cart
28	BOLT Part #: 5YU-26332-00-00 Required per assembly: 2 $2.70 $1.84 - + Add to cart
29	BOLT, UNION Part #: 90401-10015-00 Required per assembly: 1 $12.49 $9.75 - + Add to cart
30	WASHER, PLATE Part #: 90201-10118-00 Required per assembly: 2 Note: Sold in multiples of 5 only $3.79 $2.84 - + Add to cart
31	CLAMP Part #: 90464-14012-00 Required per assembly: 1 $2.85 $2.37 - + Add to cart
32	PARKING BRAKE COMP. Part #: 8FU-25970-01-00 Required per assembly: 1 $214.99 $193.34 - + Add to cart
33	PARKING BRAKE PAD KIT Part #: 8FA-W0045-00-00 Required per assembly: 1 $60.99 $52.32 - + Add to cart
34	COLLAR Part #: 90387-06058-00 Required per assembly: 2 $8.49 $5.79 - + Add to cart
35	BOLT Part #: 90111-06048-00 Required per assembly: 2 $5.49 $4.48 - + Add to cart
36	SPRING, COMPRESSION Part #: 90501-120A0-00 Required per assembly: 2 $11.49 $7.30 - + Add to cart
37	WASHER, PLATE Part #: 90201-12161-00 Required per assembly: 2 $8.49 $5.50 - + Add to cart
38	COLLAR Part #: 90387-06085-00 Required per assembly: 2 $6.49 $5.07 - + Add to cart
39	CABLE, BRAKE Part #: 8FP-26351-10-00 Required per assembly: 1 $55.99 $48.97 - + Add to cart
40	LEVER 2 Part #: 8FA-83922-00-00 Required per assembly: 1 $33.99 $29.45 - + Add to cart
41	COLLAR Part #: 90387-06043-00 Required per assembly: 1 $9.49 $6.55 - + Add to cart
42	BOLT, BUTTON, HEAD Part #: 92017-06014-00 Required per assembly: 1 $4.59 $2.74 - + Add to cart
43	WASHER, PLATE Part #: 90201-06M08-00 Required per assembly: 1 $2.50 $2.34 - + Add to cart
44	COLLAR Part #: 90387-081M9-00 Required per assembly: 1 $2.89 $1.86 - + Add to cart
45	BOLT, HEX., SOCKET, BUTTON Part #: 90111-08054-00 Required per assembly: 1 $1.80 $1.51 - + Add to cart
46	WASHER PLATE 141181390000 Part #: 90201-08085-00 Required per assembly: 2 $10.49 $6.27 - + Add to cart
