OEM Parts Yamaha 2014 Yamaha SRViper RTX Crankcase

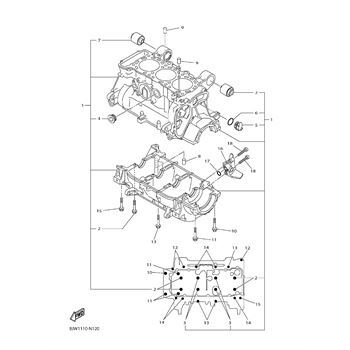

2014 Yamaha SRViper RTX SR10REB - Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

CRANKCASE ASSEMBLY

Part #: 8JK-15109-08-00 Required per assembly: 1
$4,340.27
$3,983.70
-
+
Add to cart
2

BOLT, WITH, WASHER

Part #: 90119-09004-00 Required per assembly: 4
$12.49
$9.01
-
+
Add to cart
3

BOLT, WITH, WASHER

Part #: 90119-09011-00 Required per assembly: 4
$46.99
$35.05
-
+
Add to cart
4

PLUG, STRAIGHT, SCREW

Part #: 90340-27129-00 Required per assembly: 1
$5.59
$4.84
-
+
Add to cart
5

PLUG, BLIND, 1

Part #: 8ES-15167-00-00 Required per assembly: 1
$12.99
$8.54
-
+
Add to cart
6

O-RING(1HX)

Part #: 93210-24709-00 Required per assembly: 1
$10.49
$7.95
-
+
Add to cart
7

DAMPER

Part #: 8FA-2139X-00-00 Required per assembly: 2
$42.99
$37.69
-
+
Add to cart
8

PIN, DOWEL, (3VD)

Part #: 99530-10114-00 Required per assembly: 1
$2.64
$2.24
-
+
Add to cart
9

PIN, DOWEL, (3VD)

Part #: 99530-10114-00 Required per assembly: 2
$2.64
$2.24
-
+
Add to cart
10

BOLT, FLANGE

Part #: 95817-08055-00 Required per assembly: 1
$4.21
$2.77
-
+
Add to cart
11

BOLT, FLANGE, (JN5)

Part #: 95817-08070-00 Required per assembly: 3
$3.75
$2.21
-
+
Add to cart
12

BOLT

Part #: 90109-06185-00 Required per assembly: 1
$9.49
$6.59
-
+
Add to cart
13

BOLT, FLANGE

Part #: 95812-06055-00 Required per assembly: 5
$1.89
$1.44
-
+
Add to cart
14

BOLT, FLANGE

Part #: 95812-06080-00 Required per assembly: 3
$9.49
$6.21
-
+
Add to cart
15

BOLT, FLANGE

Part #: 95817-06080-00 Required per assembly: 3
$5.49
$2.71
-
+
Add to cart
16

JOINT

Part #: 8JH-15319-00-00 Required per assembly: 1
$60.99
$49.61
-
+
Add to cart
17

O-RING

Part #: 93210-13657-00 Required per assembly: 1
$1.70
$1.09
-
+
Add to cart
18

BOLT, HEXAGON, SOCKET, HEAD, (1VJ)

Part #: 90110-06138-00 Required per assembly: 2
$6.49
$3.75
-
+
Add to cart
