Primary Sheave replacement parts for 2014 Yamaha SRViper RTX SE

OEM Parts Yamaha 2014 Yamaha SRViper RTX SE Primary Sheave

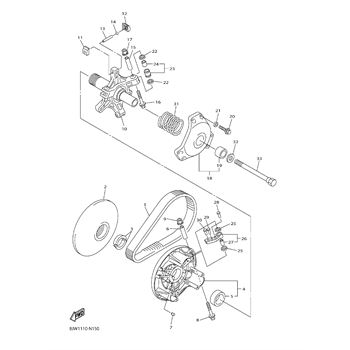

PRIMARY SHEAVE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	V-BELT, 8JP Part #: 8JP-17641-00-00 Required per assembly: 1 $129.99 $124.88 - + Add to cart
2	SHEAVE, PRIMARY, FIXED Part #: 8FA-17611-01-00 Required per assembly: 1 $223.99 $195.62 - + Add to cart
3	STOPPER Part #: 8V0-17639-00-00 Required per assembly: 2 $16.48 $10.33 - + Add to cart
4	PRIMARY SLIDING SHEAVE COMP. Part #: 8FP-17620-00-00 Required per assembly: 1 $473.99 $460.87 - + Add to cart
5	BUSH, BIMETAL, FORMED(8AS) Part #: 90384-41242-00 Required per assembly: 1 $65.98 $50.59 - + Add to cart
6	COLLAR Part #: 90387-0514T-00 Required per assembly: 3 $18.48 $14.61 - + Add to cart
7	BOLT, SET Part #: 90113-05041-00 Required per assembly: 6 $9.49 $6.55 - + Add to cart
8	BOLT, WASHER, BASED Part #: 90105-05644-00 Required per assembly: 3 $2.54 $1.91 - + Add to cart
9	NUT, S/L, FLANGE Part #: 95607-05200-00 Required per assembly: 3 $10.49 $6.73 - + Add to cart
10	SPIDER COMPLETE Part #: 8ES-17640-02-00 Required per assembly: 1 $492.99 $431.33 - + Add to cart
11	SLIDER Part #: 8BW-17653-00-00 Required per assembly: 3 $17.98 $13.61 - + Add to cart
12	SLIDER Part #: 8ES-17653-00-00 Required per assembly: 3 $28.98 $21.06 - + Add to cart
13	PIN, SPRING Part #: 91609-50032-00 Required per assembly: 3 $4.50 $3.58 - + Add to cart
14	DAMPER, SLIDER Part #: 8ES-17655-00-00 Required per assembly: 3 $2.70 $1.78 - + Add to cart
15	COLLAR Part #: 90387-0514U-00 Required per assembly: 3 $22.98 $15.59 - + Add to cart
16	BOLT, WASHER, BASED Part #: 90105-05644-00 Required per assembly: 3 $2.54 $1.91 - + Add to cart
17	NUT, S/L, FLANGE Part #: 95607-05200-00 Required per assembly: 3 $10.49 $6.73 - + Add to cart
18	PRIMARY SHEAVE CAP COMP. Part #: 8DF-17630-00-00 Required per assembly: 1 $201.99 $173.09 - + Add to cart
19	BUSH, SOLID Part #: 90380-28237-00 Required per assembly: 1 $41.99 $31.66 - + Add to cart
20	BOLT, HEXAGON Part #: 97017-06030-00 Required per assembly: 6 $3.89 $2.95 - + Add to cart
21	WASHER, PLATE, (6TA) Part #: 92907-06600-00 Required per assembly: 6 $1.00 $0.77 - + Add to cart
22	WASHER, PLATE Part #: 90202-09227-00 Required per assembly: 6 $11.49 $7.35 - + Add to cart
23	ROLLER, COMP, (D=15.6MM) Part #: 8FG-17624-20-00 Required per assembly: 3 $117.98 $97.24 - + Add to cart
24	BUSH Part #: 90386-09001-00 Required per assembly: 1 $69.98 $54.25 - + Add to cart
25	WASHER, PLATE Part #: 90202-08204-00 Required per assembly: 6 Note: (5NL1) $9.49 $5.78 - + Add to cart
26	WEIGHT COMP Part #: 8GL-17605-00-00 Required per assembly: 3 Note: UR $110.98 $93.02 - + Add to cart
27	BUSH Part #: 90386-08002-00 Required per assembly: 1 $12.99 $11.76 - + Add to cart
28	RIVET, COUNTERSUNK, (ST13.9MM) Part #: 90261-06034-00 Required per assembly: 3 Note: (ST13.9MM) UR $8.49 $5.68 - + Add to cart
29	RIVET, COUNTERSUNK, (ST13.9MM) Part #: 90261-06034-00 Required per assembly: 3 Note: (ST13.9MM) UR $8.49 $5.68 - + Add to cart
30	RIVET, COUNTERSUNK, (ST13.3MM) Part #: 90261-06019-00 Required per assembly: 3 Note: (ST13.3MM) (ST13.3MM) UR $9.49 $6.68 - + Add to cart
31	SPRING, COMPRESSION Part #: 90501-570A0-00 Required per assembly: 1 $47.99 $36.82 - + Add to cart
32	WASHER, SPRING Part #: 92907-16100-00 Required per assembly: 1 $16.48 $11.85 - + Add to cart
33	BOLT (L=156.5MM) Part #: 8V0-17647-10-00 Required per assembly: 1 $28.98 $21.08 - + Add to cart
