2014 Yamaha Super Tenere XTZ12EGY - Electrical 3

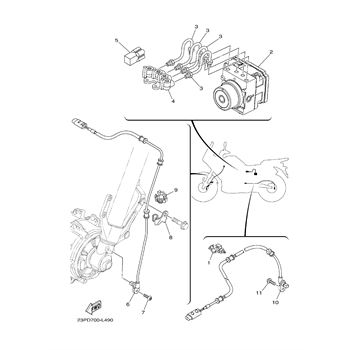

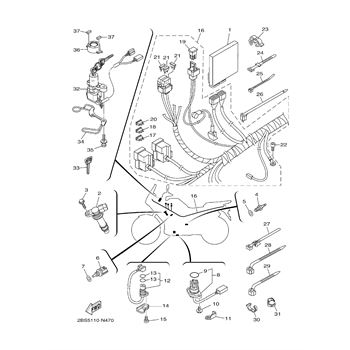

ELECTRICAL 3 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

CLAMP

Part #: 90464-10008-00 Required per assembly: 1
$3.79
$2.60
-
+
Add to cart
2

HYDRAULIC UNIT ASSEMBLY

Part #: 23P-85930-19-00 Required per assembly: 1
$2,513.38
$2,297.89
-
+
Add to cart
3

PIPE, BRAKE

Part #: 23P-25871-01-00 Required per assembly: 4
$11.49
$9.30
-
+
Add to cart
4

JOINT

Part #: 23P-25885-00-00 Required per assembly: 1
$91.98
$83.42
-
+
Add to cart
5

CONNECTOR

Part #: 3YA-82378-00-00 Required per assembly: 1
$11.49
$9.62
-
+
Add to cart
6

WHEEL, SENSOR, ASSEMBLY, FRONT

Part #: 23P-85970-00-00 Required per assembly: 1
$232.99
$201.66
-
+
Add to cart
7

BOLT, BUTTON, HEAD

Part #: 92014-06014-00 Required per assembly: 1
$4.04
$2.60
-
+
Add to cart
8

HOLDER, CABLE, 1

Part #: 23P-23318-00-00 Required per assembly: 1
$15.49
$11.57
-
+
Add to cart
9

CLAMP

Part #: 90464-12013-00 Required per assembly: 2
$9.49
$6.24
-
+
Add to cart
10

WHEEL, SENSOR, ASSEMBLY, REAR

Part #: 23P-85980-00-00 Required per assembly: 1
$174.99
$151.43
-
+
Add to cart
11

BOLT, BUTTON, HEAD

Part #: 92014-06014-00 Required per assembly: 1
$4.04
$2.60
-
+
Add to cart
