Crankshaft Piston replacement parts for 2014 Yamaha Stryker

OEM Parts Yamaha 2014 Yamaha Stryker Crankshaft Piston

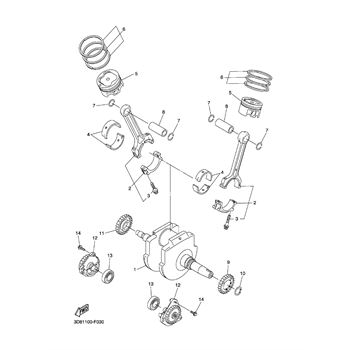

CRANKSHAFT PISTON Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKSHAFT ASSEMBLY Part #: 3D8-11400-01-00 Required per assembly: 1 $650.29 $615.18 - + Add to cart
2	CONNECTING ROD ASSEMBLY Part #: 3D8-11650-10-00 Required per assembly: 2 $202.99 $190.22 - + Add to cart
3	BOLT, CONNECTING, ROD Part #: 5YU-11654-00-00 Required per assembly: 2 $8.49 $6.79 - + Add to cart
4	PLANE, BEARING, CONNECTING, ROD Part #: 5YU-11656-30-00 Required per assembly: 4 Note: UR GREEN $17.98 $14.86 - + Add to cart
4	PLANE, BEARING, CONNECTING, ROD Part #: 5YU-11656-10-00 Required per assembly: 4 Note: UR BLACK $18.98 $15.24 - + Add to cart
4	PLANE, BEARING, CONNECTING, ROD Part #: 5YU-11656-20-00 Required per assembly: 4 Note: UR BROWN $18.98 $15.44 - + Add to cart
4	PLANE, BEARING, CONNECTING, ROD Part #: 5YU-11656-40-00 Required per assembly: 4 Note: UR YELLOW $18.98 $14.21 - + Add to cart
4	PLANE, BEARING, CONNECTING, ROD Part #: 5YU-11656-00-00 Required per assembly: 4 Note: UR BLUE $18.98 $15.35 - + Add to cart
5	PISTON (STD) Part #: 3D8-11631-00-00 Required per assembly: 2 $176.99 $157.10 - + Add to cart
6	PISTON RING SET (STD) Part #: 1D7-11610-00-00 Required per assembly: 2 $58.99 $46.92 - + Add to cart
7	CIRCLIP Part #: 93450-24154-00 Required per assembly: 4 $3.39 $2.81 - + Add to cart
8	PIN, PISTON Part #: 5VK-11633-00-00 Required per assembly: 2 $45.99 $38.04 - + Add to cart
9	BALANCER WEIGHT GEAR COMP. Part #: 3D8-11530-00-00 Required per assembly: 1 $185.99 $173.80 - + Add to cart
10	CIRCLIP Part #: 99009-40400-00 Required per assembly: 1 $4.20 $3.46 - + Add to cart
11	GEAR, 1 Part #: 3D8-11543-00-00 Required per assembly: 1 $117.98 $106.60 - + Add to cart
12	BALANCER ASSEMBLY Part #: 3D8-11500-00-00 Required per assembly: 2 $281.99 $276.94 - + Add to cart
13	BEARING Part #: 93306-20458-00 Required per assembly: 2 $47.99 $36.56 - + Add to cart
14	BOLT Part #: 90109-06015-00 Required per assembly: 6 $5.49 $3.93 - + Add to cart
