OEM Parts Yamaha 2014 Yamaha Bolt Starter

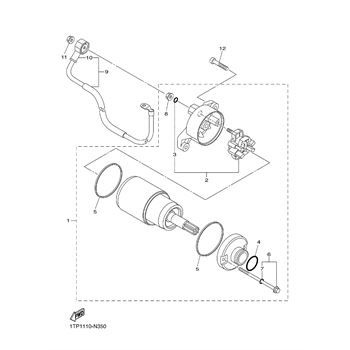

2014 Yamaha Bolt XVS95CEB - Starter

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

GEAR 3

Part #: 5S7-15515-00-00 Required per assembly: 1
$141.99
$132.74
-
+
Add to cart
2

WASHER

Part #: 5S7-15561-00-00 Required per assembly: 1
$13.49
$10.81
-
+
Add to cart
3

STARTER ONE-WAY ASSEMBLY

Part #: 4NK-15590-00-00 Required per assembly: 1
$316.99
$273.67
-
+
Add to cart
4

BOLT, SOCKET

Part #: 91317-08025-00 Required per assembly: 3
$9.49
$6.12
-
+
Add to cart
5

GEAR, IDLER, 1

Part #: 5S7-15512-01-00 Required per assembly: 1
$143.99
$128.23
-
+
Add to cart
6

SHAFT 1

Part #: 1D7-15521-00-00 Required per assembly: 1
$9.49
$7.94
-
+
Add to cart
7

BRG, R-B, 6000, 26MM, 19G, KY

Part #: 93306-00004-00 Required per assembly: 1
$41.99
$32.13
-
+
Add to cart
8

GEAR, IDLER, 1

Part #: 3D8-15512-01-00 Required per assembly: 1
$74.98
$67.80
-
+
Add to cart
9

SHAFT 2

Part #: 4WM-15522-00-00 Required per assembly: 1
$13.99
$11.48
-
+
Add to cart
10

WASHER, PLATE

Part #: 90201-350F3-00 Required per assembly: 1
$11.49
$9.09
-
+
Add to cart
11

KEY, WOODRUFF

Part #: 90280-05001-00 Required per assembly: 1
$13.49
$11.58
-
+
Add to cart
12

WASHER, PLATE

Part #: 90201-12008-00 Required per assembly: 1
$16.48
$10.96
-
+
Add to cart
13

BOLT, WASHER, BASED

Part #: 90105-12584-00 Required per assembly: 1
$20.98
$16.95
-
+
Add to cart
