Frame replacement parts for 2014 Yamaha YDREX4 JW95

OEM Parts Yamaha 2014 Yamaha YDREX4 JW95 Frame

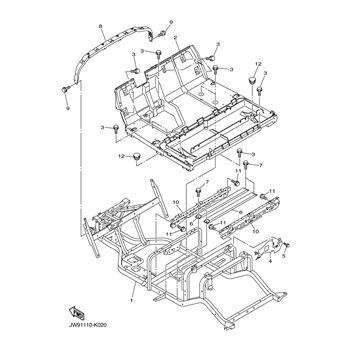

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME Part #: JW8-F2501-02-00 Required per assembly: 1 $3,387.78 - + Add to cart
2	FOOTREST 1 Part #: JW9-F7411-01-00 Required per assembly: 1 $810.24 - + Add to cart
3	BOLT Part #: JW1-F1738-00-00 Required per assembly: 12 $2.14 $1.66 - + Add to cart
4	BRACKET, 3 Part #: JW9-F252M-00-00 Required per assembly: 1 Not Available
5	BOLT, FLANGE Part #: 90105-06831-00 Required per assembly: 3 $2.29 $1.72 - + Add to cart
6	MBR., CROSS Part #: JW9-F2198-01-00 Required per assembly: 2 Not Available
7	BOLT Part #: JW1-F1738-00-00 Required per assembly: 4 $2.14 $1.66 - + Add to cart
8	BRACKET, DASH, UPPER Part #: JW1-F258G-02-00 Required per assembly: 1 $110.46 - + Add to cart
9	BOLT, FLANGE Part #: 90105-06831-00 Required per assembly: 4 $2.29 $1.72 - + Add to cart
10	STAY, BATTERY, 1 Part #: JW9-F2535-00-00 Required per assembly: 2 $23.98 $23.37 - + Add to cart
11	BOLT Part #: JW1-F1738-00-00 Required per assembly: 4 $2.14 $1.66 - + Add to cart
12	PLUG Part #: JW9-F2417-00-00 Required per assembly: 2 $2.99 $2.12 - + Add to cart
