Exhaust replacement parts for 2014 Yamaha Grizzly 350 Hunt 4WD

OEM Parts Yamaha 2014 Yamaha Grizzly 350 Hunt 4WD Exhaust

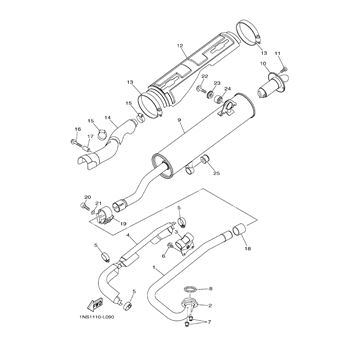

EXHAUST Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PIPE, EXHAUST, 1 Part #: 5UH-E4611-00-00 Required per assembly: 1 Note: (YMUS) Not Available
2	NUT, RING Part #: 5UH-E4612-00-00 Required per assembly: 1 Note: (YMUS) $23.98 $18.34 - + Add to cart
3	BAND 1 Part #: 1NS-E477R-00-00 Required per assembly: 1 Not Available
4	PROTECTOR, EXHAUST, PIPE Part #: 5UH-E4628-01-00 Required per assembly: 1 Not Available
5	BAND 2 Part #: 5UH-E477T-00-00 Required per assembly: 3 Note: (YMUS) $19.93 $18.11 - + Add to cart
6	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 3 $1.95 $1.47 - + Add to cart
7	NUT Part #: 90179-06668-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
8	GASKET, EXHAUST, PIPE Part #: 3GD-14613-00-00 Required per assembly: 1 $15.49 $12.17 - + Add to cart
9	MUFFLER 1 Part #: 1NS-E4711-00-00 Required per assembly: 1 $429.99 $407.88 - + Add to cart
10	PIPE, OUTLET Part #: 5ND-E4752-00-00 Required per assembly: 1 $119.98 $104.06 - + Add to cart
11	BOLT, MUFFLER, /, DRAIN Part #: 5ND-E4719-00-00 Required per assembly: 3 $6.49 $4.01 - + Add to cart
12	PROTECTOR, MUFFLER, 1 Part #: 5ND-E4718-00-00 Required per assembly: 1 Not Available
13	BAND, SILENCER Part #: 5ND-E4788-00-00 Required per assembly: 2 Not Available
14	PROTECTOR, MUFFLER, 2 Part #: 1NS-E4728-00-00 Required per assembly: 1 $218.99 $183.54 - + Add to cart
15	BAND 2 Part #: 5UH-E477T-00-00 Required per assembly: 2 Note: (YMUS) $19.93 $18.11 - + Add to cart
16	BOLT, FLANGE Part #: 9580P-06040-00 Required per assembly: 1 Not Available
17	COLLAR Part #: 5UH-E4638-00-00 Required per assembly: 1 Note: (YMUS) Not Available
18	GASKET, MUFFLER Part #: 3YF-14714-00-00 Required per assembly: 1 $39.99 $29.24 - + Add to cart
19	BAND, MUFFLER Part #: 5ND-E4715-00-00 Required per assembly: 1 $15.99 $12.81 - + Add to cart
20	BOLT Part #: 5ND-E4777-00-00 Required per assembly: 2 $5.49 $4.16 - + Add to cart
21	WASHER Part #: 5ND-E4759-00-00 Required per assembly: 2 Not Available
22	BOLT, FLANGE Part #: 95817-08040-00 Required per assembly: 1 $7.49 $5.32 - + Add to cart
23	WASHER Part #: 3B4-14759-01-00 Required per assembly: 1 $19.98 $14.82 - + Add to cart
24	DAMPER, FOOTREST Part #: 1HP-F7414-00-00 Required per assembly: 1 $23.98 $19.78 - + Add to cart
25	DAMPER, MUFFLER Part #: 1NS-E4737-00-00 Required per assembly: 1 $3.10 $2.59 - + Add to cart
