Drive Shaft replacement parts for 2014 Yamaha Grizzly 450 Hunting

OEM Parts Yamaha 2014 Yamaha Grizzly 450 Hunting Drive Shaft

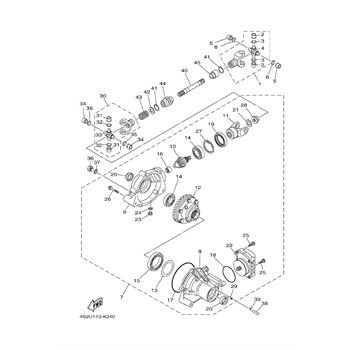

DRIVE SHAFT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CROSS JOINT COMP. 3 Part #: 1D9-46108-01-00 Required per assembly: 1 ~~$291.99~~ $254.11 - + Add to cart
2	BEARING Part #: 93399-99948-00 Required per assembly: 2 ~~$60.99~~ $47.95 - + Add to cart
3	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 ~~$8.49~~ $5.15 - + Add to cart
4	SPIDER Part #: 5GT-46187-00-00 Required per assembly: 1 ~~$117.98~~ $98.05 - + Add to cart
5	BEARING Part #: 93399-99948-00 Required per assembly: 2 ~~$60.99~~ $47.95 - + Add to cart
6	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 ~~$8.49~~ $5.15 - + Add to cart
7	REAR AXLE GEAR CASE ASSEMBLY Part #: 1CT-G6101-11-00 Required per assembly: 1 ~~$910.40~~ $842.64 - + Add to cart
8	HOUSING, DRIVE, SHA Part #: 1CT-G6151-01-00 Required per assembly: 1 ~~$222.99~~ $208.52 - + Add to cart
9	COVER Part #: 1CT-G2134-01-00 Required per assembly: 1 ~~$197.99~~ $148.02 - + Add to cart
10	HOUSING, BEARING Part #: 1CT-G6152-01-00 Required per assembly: 1 ~~$94.98~~ $86.06 - + Add to cart
11	GASKET, COVER Part #: 1CT-G631E-00-00 Required per assembly: 1 ~~$22.98~~ $20.02 - + Add to cart
12	GSKT., CASE Part #: 1CT-G631A-00-00 Required per assembly: 1 ~~$18.98~~ $17.21 - + Add to cart
13	STOPPER, RING, GEAR Part #: 1CT-G6156-00-00 Required per assembly: 1 Not Available
14	BREATHER Part #: 1CT-E5371-00-00 Required per assembly: 1 ~~$13.99~~ $12.97 - + Add to cart
15	OIL SEAL Part #: 1CT-E511A-10-00 Required per assembly: 2 ~~$43.99~~ $34.50 - + Add to cart
16	GASKET Part #: 1CT-E1195-00-00 Required per assembly: 2 ~~$6.99~~ $5.26 - + Add to cart
17	PIN, DOWEL, 1 Part #: 1CT-E3362-00-00 Required per assembly: 4 ~~$3.95~~ $3.61 - + Add to cart
18	GASKET Part #: 1CT-G6819-00-00 Required per assembly: 1 ~~$4.95~~ $3.81 - + Add to cart
19	BOLT Part #: 1CT-E2157-00-00 Required per assembly: 15 ~~$4.65~~ $3.87 - + Add to cart
20	BOLT Part #: 1CT-E2228-00-00 Required per assembly: 2 ~~$3.85~~ $2.74 - + Add to cart
21	NUT, ADJUSTING Part #: 1CT-E3275-00-00 Required per assembly: 1 ~~$2.99~~ $2.96 - + Add to cart
22	COUPLING Part #: 1CT-G6126-00-00 Required per assembly: 1 ~~$55.99~~ $48.28 - + Add to cart
23	NUT Part #: 1CT-G4583-00-00 Required per assembly: 1 ~~$100.98~~ $82.34 - + Add to cart
24	YOKE, JOINT Part #: 1CT-G6186-00-00 Required per assembly: 1 ~~$191.99~~ $157.58 - + Add to cart
25	WASHER 1 Part #: 1CT-E1557-00-00 Required per assembly: 1 ~~$23.98~~ $21.20 - + Add to cart
26	NUT, LOCK Part #: 1CT-E6377-00-00 Required per assembly: 1 ~~$5.49~~ $4.02 - + Add to cart
27	OIL SEAL Part #: 1CT-E511B-10-00 Required per assembly: 1 ~~$36.99~~ $33.10 - + Add to cart
28	SHIM, PINION Part #: 1CT-E7531-00-00 Required per assembly: 1 ~~$8.99~~ $8.07 - + Add to cart
29	BEARING 1 Part #: 1CT-E1428-00-00 Required per assembly: 1 ~~$125.98~~ $102.06 - + Add to cart
30	BEARING 2 Part #: 1CT-E1429-00-00 Required per assembly: 1 ~~$76.98~~ $61.93 - + Add to cart
31	OIL, RING, PISTON Part #: 1CT-E1614-00-00 Required per assembly: 1 ~~$14.49~~ $9.80 - + Add to cart
32	SHIM Part #: 1CT-G5567-00-00 Required per assembly: 1 ~~$16.48~~ $13.49 - + Add to cart
33	SHIM Part #: 1CT-G5577-00-00 Required per assembly: 1 ~~$16.48~~ $12.70 - + Add to cart
34	BEARING Part #: 1CT-E142A-00-00 Required per assembly: 1 ~~$64.98~~ $48.02 - + Add to cart
35	BEARING 4 Part #: 1CT-E142B-00-00 Required per assembly: 1 ~~$102.98~~ $83.42 - + Add to cart
36	RING GEAR SET Part #: 1CT-G61A0-01-00 Required per assembly: 1 ~~$1,093.82~~ $1,009.38 - + Add to cart
37	INSERT, PLATE Part #: 1CT-F5345-00-00 Required per assembly: 4 ~~$72.98~~ $63.23 - + Add to cart
38	PLATE 1 Part #: 1CT-F539F-00-00 Required per assembly: 5 ~~$28.98~~ $21.58 - + Add to cart
39	PLATE, GUIDE Part #: 1CT-F5689-00-00 Required per assembly: 1 ~~$139.99~~ $116.61 - + Add to cart
40	SPRING, RETURN Part #: 1CT-G6277-00-00 Required per assembly: 2 ~~$4.90~~ $4.34 - + Add to cart
41	SPRING Part #: 1CT-F476L-00-00 Required per assembly: 1 ~~$13.49~~ $11.69 - + Add to cart
42	BOLT, LOCK, PLATE Part #: 1CT-G2478-10-00 Required per assembly: 4 Not Available
43	CAMSHAFT Part #: 1CT-F5351-00-00 Required per assembly: 1 Not Available
44	WASHER Part #: 1CT-E2289-10-00 Required per assembly: 1 Not Available
45	LEVER, CAMSHAFT Part #: 1CT-F5355-00-00 Required per assembly: 1 Not Available
46	END, CABLE, 3 Part #: 1CT-F6374-00-00 Required per assembly: 2 Not Available
47	WASHER 2 Part #: 1CT-G1298-00-00 Required per assembly: 1 ~~$7.99~~ $6.55 - + Add to cart
48	RING, SEAL Part #: 1CT-E4005-10-00 Required per assembly: 1 Not Available
49	WASHER, 1 Part #: 1CT-G1297-00-00 Required per assembly: 4 ~~$5.49~~ $3.61 - + Add to cart
50	WASHER 2 Part #: 1CT-E1558-00-00 Required per assembly: 2 Not Available
51	GUIDE 1 Part #: 1CT-E469U-00-00 Required per assembly: 2 Not Available
52	PIN, STRAIGHT Part #: 1CT-E319L-00-00 Required per assembly: 2 Not Available
53	BALL Part #: 1CT-E7051-00-00 Required per assembly: 6 ~~$4.20~~ $3.46 - + Add to cart
54	BOLT 2 Part #: 1CT-E22A1-00-00 Required per assembly: 1 ~~$2.99~~ $2.95 - + Add to cart
55	CLIP Part #: 1CT-E1486-00-00 Required per assembly: 1 Not Available
56	CLIP Part #: 1CT-G5319-00-00 Required per assembly: 2 ~~$5.49~~ $3.99 - + Add to cart
57	SHIM Part #: 1CT-E3147-00-00 Required per assembly: 1 ~~$2.99~~ $2.69 - + Add to cart
58	SPRING, TENSION Part #: 90506-14397-00 Required per assembly: 1 ~~$5.99~~ $3.67 - + Add to cart
59	CROSS JOINT COMP. 2 Part #: 1CT-46107-00-00 Required per assembly: 1 ~~$242.99~~ $217.06 - + Add to cart
60	BEARING Part #: 93399-99948-00 Required per assembly: 2 ~~$60.99~~ $47.95 - + Add to cart
61	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 ~~$8.49~~ $5.15 - + Add to cart
62	SPIDER Part #: 5GT-46187-00-00 Required per assembly: 1 ~~$117.98~~ $98.05 - + Add to cart
63	BEARING Part #: 93399-99948-00 Required per assembly: 2 ~~$60.99~~ $47.95 - + Add to cart
64	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 ~~$8.49~~ $5.15 - + Add to cart
65	SEAL 1 Part #: 5GT-46136-00-00 Required per assembly: 1 ~~$18.98~~ $15.39 - + Add to cart
66	HOSE (L900) Part #: 90445-078C4-00 Required per assembly: 1 Not Available
67	CLIP, SCISSOR Part #: 90467-07029-00 Required per assembly: 1 ~~$2.60~~ $1.89 - + Add to cart
68	BOLT, FLANGE Part #: 90105-10844-00 Required per assembly: 2 ~~$4.15~~ $3.49 - + Add to cart
69	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 ~~$2.70~~ $2.25 - + Add to cart
70	BOLT, FLANGE Part #: 95817-10045-00 Required per assembly: 1 ~~$6.99~~ $4.45 - + Add to cart
