Front Differential replacement parts for 2014 Yamaha YFM700DHE

OEM Parts Yamaha 2014 Yamaha YFM700DHE Front Differential

FRONT DIFFERENTIAL Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT AXLE GEAR CASE COMP. Part #: 1HP-46160-01-00 Required per assembly: 1 $2,383.76 $2,182.06 - + Add to cart
2	HOUSING, BEARING, 2 Part #: 3B4-46162-01-00 Required per assembly: 1 $392.99 $384.29 - + Add to cart
3	HOUSING, SHAFT, DRIVE, 2 Part #: 3B4-46161-00-00 Required per assembly: 1 $275.99 $243.39 - + Add to cart
4	PINION, DRIVE, 2 Part #: 1XD-46141-00-00 Required per assembly: 1 $265.99 $230.34 - + Add to cart

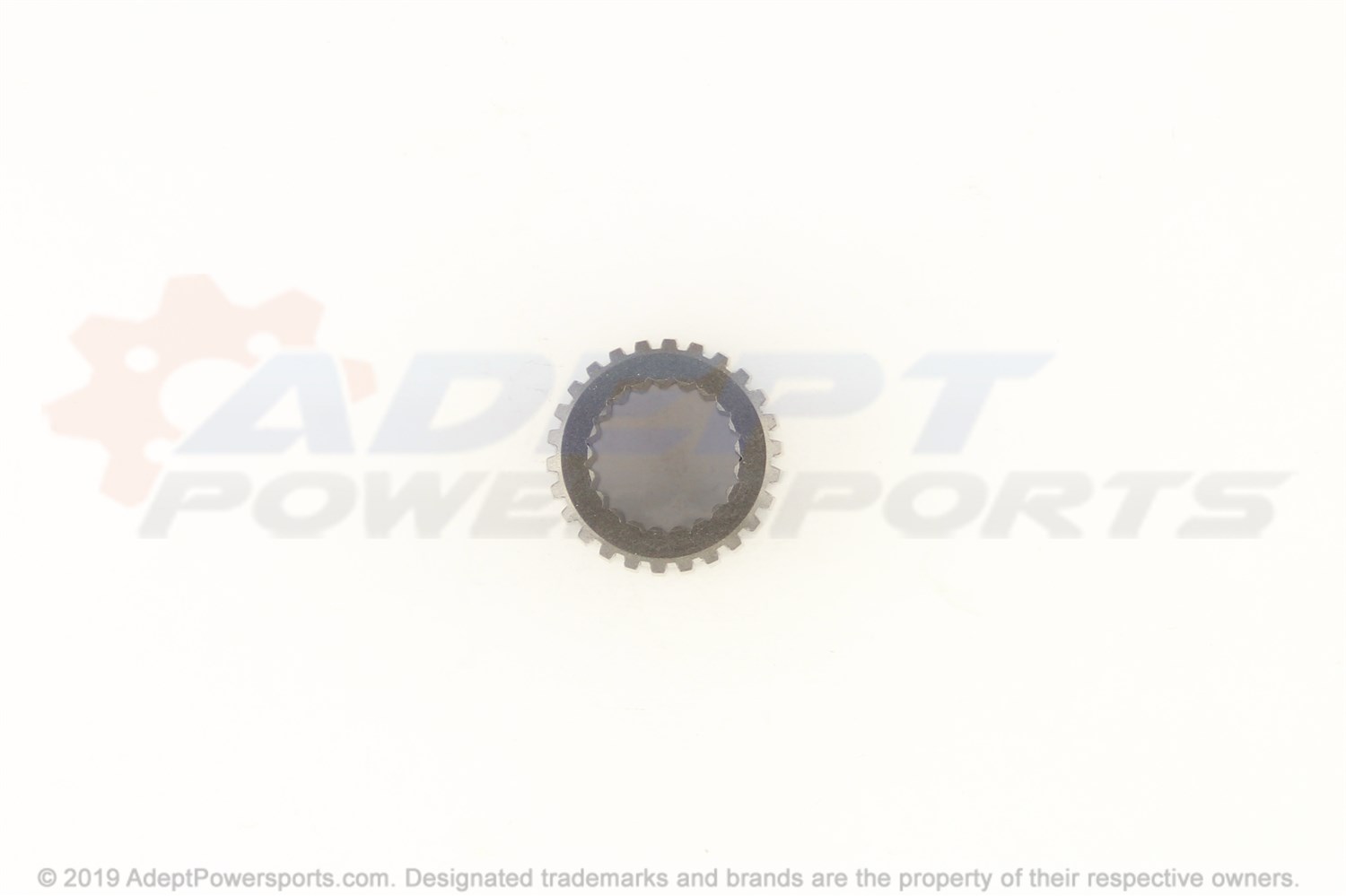

5	CUPLING Part #: 3B4-67839-10-00 Required per assembly: 1 $178.99 $154.18 - + Add to cart
6	LIMITED SLIP DIFF. ASSEMBLY Part #: 1XD-46470-01-00 Required per assembly: 1 $1,027.03 $933.66 - + Add to cart
7	SHIM, RING, GEAR, (01T) Part #: 3B4-46117-00-00 Required per assembly: 1 Note: UR $9.99 $8.00 - + Add to cart
8	BEARING (2HR) Part #: 93306-00612-00 Required per assembly: 2 $51.99 $42.99 - + Add to cart
9	BEARING 1 Part #: 3B4-46164-00-00 Required per assembly: 1 $93.98 $80.50 - + Add to cart
10	BEARING 3 Part #: 3B4-46166-00-00 Required per assembly: 1 $30.98 $21.77 - + Add to cart
11	O-RING 1 Part #: 3B4-46134-00-00 Required per assembly: 1 $19.98 $15.65 - + Add to cart
12	O-RING 2 Part #: 3B4-46135-00-00 Required per assembly: 1 $5.99 $5.03 - + Add to cart
13	OIL SEAL Part #: 93105-46001-00 Required per assembly: 1 $23.98 $18.42 - + Add to cart
14	SEAL, OIL, 1 Part #: 3B4-46163-00-00 Required per assembly: 2 $19.98 $16.57 - + Add to cart
15	WASHER Part #: 3B4-47359-00-00 Required per assembly: 1 $8.49 $6.67 - + Add to cart
16	SERVO MOTOR COMP Part #: 1HP-4616A-00-00 Required per assembly: 1 $585.99 $555.87 - + Add to cart
17	PLUG, STRAIGHT, SCREW Part #: 90340-10001-00 Required per assembly: 1 $6.49 $3.58 - + Add to cart
18	GASKET Part #: 90430-10003-00 Required per assembly: 1 $9.49 $8.06 - + Add to cart
19	BOLT, FLANGE Part #: 95812-06014-00 Required per assembly: 3 $6.49 $5.35 - + Add to cart
20	BOLT, FLANGE Part #: 95817-08040-00 Required per assembly: 5 $7.49 $5.32 - + Add to cart
21	RING, HOLE, SNAP, 1 Part #: 3B4-46142-00-00 Required per assembly: 1 $11.99 $10.21 - + Add to cart
22	NUT 1 Part #: 4WV-46145-11-00 Required per assembly: 1 $13.49 $9.43 - + Add to cart
23	TUBE Part #: 5GH-46293-00-00 Required per assembly: 1 $7.49 $6.18 - + Add to cart
24	PLUG, STRAIGHT, SCREW Part #: 90340-14029-00 Required per assembly: 1 $4.59 $3.14 - + Add to cart
25	GASKET Part #: 214-11198-01-00 Required per assembly: 1 $3.16 $2.66 - + Add to cart
26	HOSE (L1050) Part #: 90445-072G8-00 Required per assembly: 1 $32.99 $23.06 - + Add to cart
27	CLIP, SCISSOR Part #: 90467-07029-00 Required per assembly: 1 $2.60 $1.89 - + Add to cart
28	SHAFT, DRIVE, 2 Part #: 1HP-G6173-00-00 Required per assembly: 1 $130.99 $105.78 - + Add to cart
29	SPRING, COMPRESSION Part #: 90501-20361-00 Required per assembly: 1 $14.49 $10.72 - + Add to cart
30	SEAL 2 Part #: 5KM-46137-00-00 Required per assembly: 1 Note: (USA) $17.98 $14.36 - + Add to cart
31	SEAL 1 Part #: 5KM-46136-00-00 Required per assembly: 1 Note: (USA) $9.49 $7.61 - + Add to cart
32	CIRCLIP, S-TYPE Part #: 99009-19400-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
33	COUPLING Part #: 5KM-46126-00-00 Required per assembly: 1 Note: (USA) $71.98 $58.97 - + Add to cart
34	CIRCLIP, S-TYPE Part #: 93410-22039-00 Required per assembly: 1 Note: Sold in multiples of 5 only $9.49 $6.05 - + Add to cart
35	DAMPER Part #: 5KM-46559-00-00 Required per assembly: 1 Note: (USA) $8.49 $6.73 - + Add to cart
	SHIM, RING, GEAR, (03T) Part #: 3B4-46117-20-00 Required per assembly: 1 Note: UR $11.49 $8.89 - + Add to cart
	SHIM, RING, GEAR, (04T) Part #: 3B4-46117-30-00 Required per assembly: 1 Note: UR $10.49 $8.00 - + Add to cart
	SHIM, RING, GEAR, (02T) Part #: 3B4-46117-10-00 Required per assembly: 1 Note: UR $16.48 $13.23 - + Add to cart
