Dash Assembly replacement parts for 2015 Arctic Cat Wildcat Trail Red

OEM Parts Arctic Cat 2015 Arctic Cat Wildcat Trail Red Dash Assembly

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	DASH BOARD W/ WARNING DECALS (INC. 2-5) Part #: 5506-601 Required per assembly: 1 Currently Not Available
2	DECAL, WARNING-AGE Part #: 3411-918 Required per assembly: 1 Currently Not Available
3	DECAL, WARNING-DASH LH Part #: 2411-893 Required per assembly: 1 Currently Not Available
4	DECAL, WARNING-DASH RH (1 PASS) Part #: 2411-892 Required per assembly: 1 Currently Not Available
5	GROMMET, PANEL-SIDE Part #: 0423-678 Required per assembly: 1 Currently Not Available
6	SCREW, FUEL TANK MOUNT(M6X18 DP) Part #: 0423-609 Required per assembly: 6 $2.04 $1.67 - + Add to cart

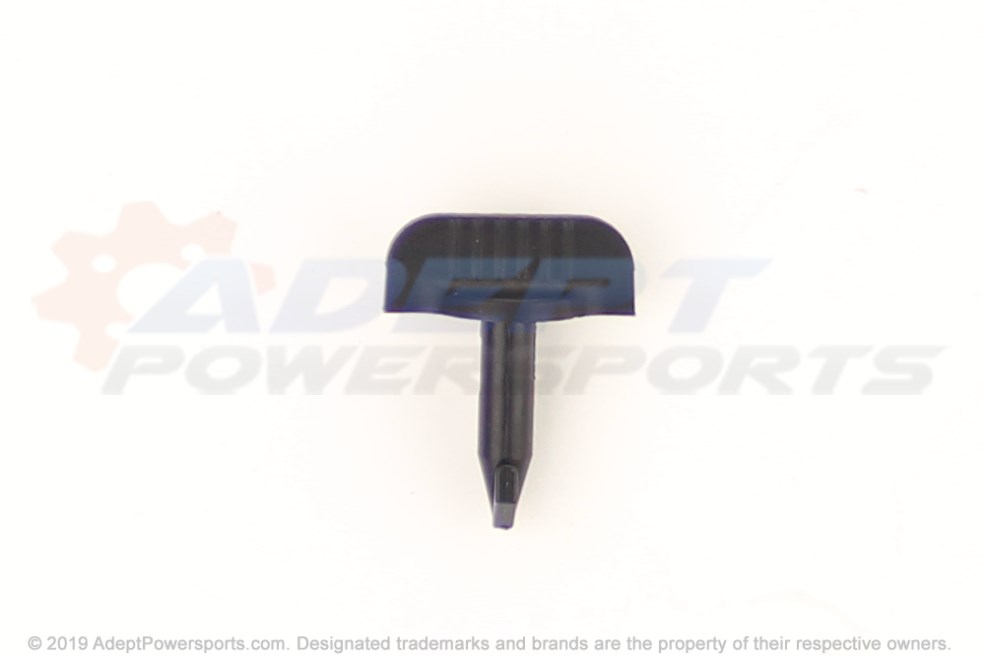

7	PLUG, CHRISTMAS TREE Part #: 0623-544 $1.89 $1.44 - + Add to cart
8	SWITCH, IGNITION-START (014 UTV) (INC. 8-10) Part #: 0430-106 Required per assembly: 1 Currently Not Available
9	NUT, SWITCH (CY) Part #: 0430-112 Required per assembly: 1 Currently Not Available
10	KEY, BLANK (CY-A) Part #: 0430-109 Required per assembly: 1 Currently Not Available
10	KEY, BLANK (CY-B) Part #: 0430-110 Required per assembly: 1 Currently Not Available
11	COVER, KEY (CY) Part #: 0430-111 Required per assembly: 1 Currently Not Available
12	SWITCH, LIGHTS (WC50) Part #: 0409-160 Required per assembly: 1 Currently Not Available
13	SWITCH,2/4/LOCK Part #: 0409-061 Required per assembly: 1 Currently Not Available
14	PLUG, SWITCH HOLE Part #: 0409-070 Required per assembly: 1 Currently Not Available
15	OUTLET,ACCESSORY - 12V DC Part #: 0641-897 Required per assembly: 1 Currently Not Available
16	GAUGE, PS-ISO (015 WC TRAIL) (INC. 17) Part #: 0520-246 Required per assembly: 1 Currently Not Available
17	RING, MOUNT-GAUGE Part #: 0409-161 Required per assembly: 1 Currently Not Available
18	NET, GLOVE BOX-ENGLISH Part #: 5506-412 Required per assembly: 1 Currently Not Available
19	FASTENER, QUARTER TURN - ASSEMBLY (INC. 17-19) Part #: 1423-218 Required per assembly: 2 Currently Not Available
20	RECEIVER, QUARTER TURN FASTENER Part #: 1423-208 Required per assembly: 2 Currently Not Available
21	RETAINER, QUARTER TURN FASTENER Part #: 1423-209 Required per assembly: 2 Currently Not Available
22	KNOB, QUARTER TURN FASTENER Part #: 1423-207 Required per assembly: 2 Currently Not Available
