Transmission replacement parts for 2015 Can Am Maverick MAX 1000 STD XRS-DPS

OEM Parts Can Am 2015 Can Am Maverick MAX 1000 STD XRS DPS Transmission

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CVT AIR GUIDE Part #: 420612304 Required per assembly: 1 Currently Not Available
2	O-RING Part #: 420430408 Required per assembly: 1 Currently Not Available
3	O-RING Part #: 420631089 Required per assembly: 1 Currently Not Available
4	HEX.SCREW M6 X 20 Part #: 420441311 Required per assembly: 8 Currently Not Available
5	FLAT WASHER Part #: 224061121 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
6	ELASTIC STOP NUT M6. MODEL-XT Part #: 232561434 Required per assembly: 1 Currently Not Available
7	GASKET Part #: 420430127 Required per assembly: 1 Currently Not Available
8	GOVERNOR CUP ASSEMBLY Part #: 420280524 Required per assembly: 1 Currently Not Available
9	SLIDER SHOE SET (1 SET = 12 SHOES) Part #: 420281296 Required per assembly: 1 Currently Not Available
10	AXLE ROLLER Part #: 417223257 Required per assembly: 6 $5.08 $4.11 - + Add to cart
11	ROLLER Part #: 420229999 Required per assembly: 6 Currently Not Available
12	HALF-OUTHER ASSEMBLY (INCLUDES 12 TO 14) Part #: 420280462 Required per assembly: 1 Currently Not Available
13	SLIDE PLATE Part #: 420651763 Required per assembly: 12 Currently Not Available
14	ELASTIC STOP NUT M5 Part #: 232551414 Required per assembly: 24 $0.75 $0.61 - + Add to cart
15a	CENTRIFUGAL LEVER KIT (SET OF 6). Part #: 420248608 Required per assembly: 1 Currently Not Available
19	COMPRESSION SPRING, DRIVE PULLEY Part #: 420238615 Required per assembly: 1 Currently Not Available
20	SPRING SEAT Part #: 420627578 Required per assembly: 1 Currently Not Available
21	DRIVE PULLEY CLUTCH Part #: 420657370 Required per assembly: 1 Currently Not Available
22	BALL BEARING Part #: 420632377 Required per assembly: 2 Currently Not Available
23	RETAINING RING Part #: 420245951 Required per assembly: 1 Currently Not Available
24	INNER HALF Part #: 420280577 Required per assembly: 1 Currently Not Available
25	SPRING SLEEVE Part #: 420229577 Required per assembly: 2 Currently Not Available
26	SPRING Part #: 420239134 Required per assembly: 2 Currently Not Available
27	CLUTCH BOLT REPAIR KIT Part #: 703500842 Required per assembly: 1 Currently Not Available
28	WASHER 40 MM Part #: 420427061 Required per assembly: 1 Currently Not Available
29	WASHER 30 MM Part #: 420427054 Required per assembly: 1 Currently Not Available
32	CAM Part #: 420280474 Required per assembly: 1 Currently Not Available
33	DRIVEN PULLEY SHAFT Part #: 420220914 Required per assembly: 1 Currently Not Available
34	COMPRESSION SPRING Part #: 420238176 Required per assembly: 1 Currently Not Available
35	HALF-INNER ASSEMBLY Part #: 420280188 Required per assembly: 1 Currently Not Available
36	OUTER HALF PULLEY ASSEMBLY Part #: 420280178 Required per assembly: 1 Currently Not Available
37	BALL BEARING Part #: 420932421 Required per assembly: 1 Currently Not Available
38	RETAINING RING Part #: 420245911 Required per assembly: 1 Currently Not Available
39	TORQUE GEAR Part #: 420660124 Required per assembly: 1 Currently Not Available
40	V BELT Part #: 422280364 Required per assembly: 1 Currently Not Available
41	THRUST WASHER Part #: 420627590 Required per assembly: 1 Currently Not Available
42	STUD SCREW M10 X 136 Part #: 420441900 Required per assembly: 1 Currently Not Available
42a	HEX NUT ISO 4032 M10-10 Part #: 420242097 Required per assembly: 1 Currently Not Available
42b	HEX NUT ISO 4035 M10 Part #: 420242402 Required per assembly: 1 Currently Not Available

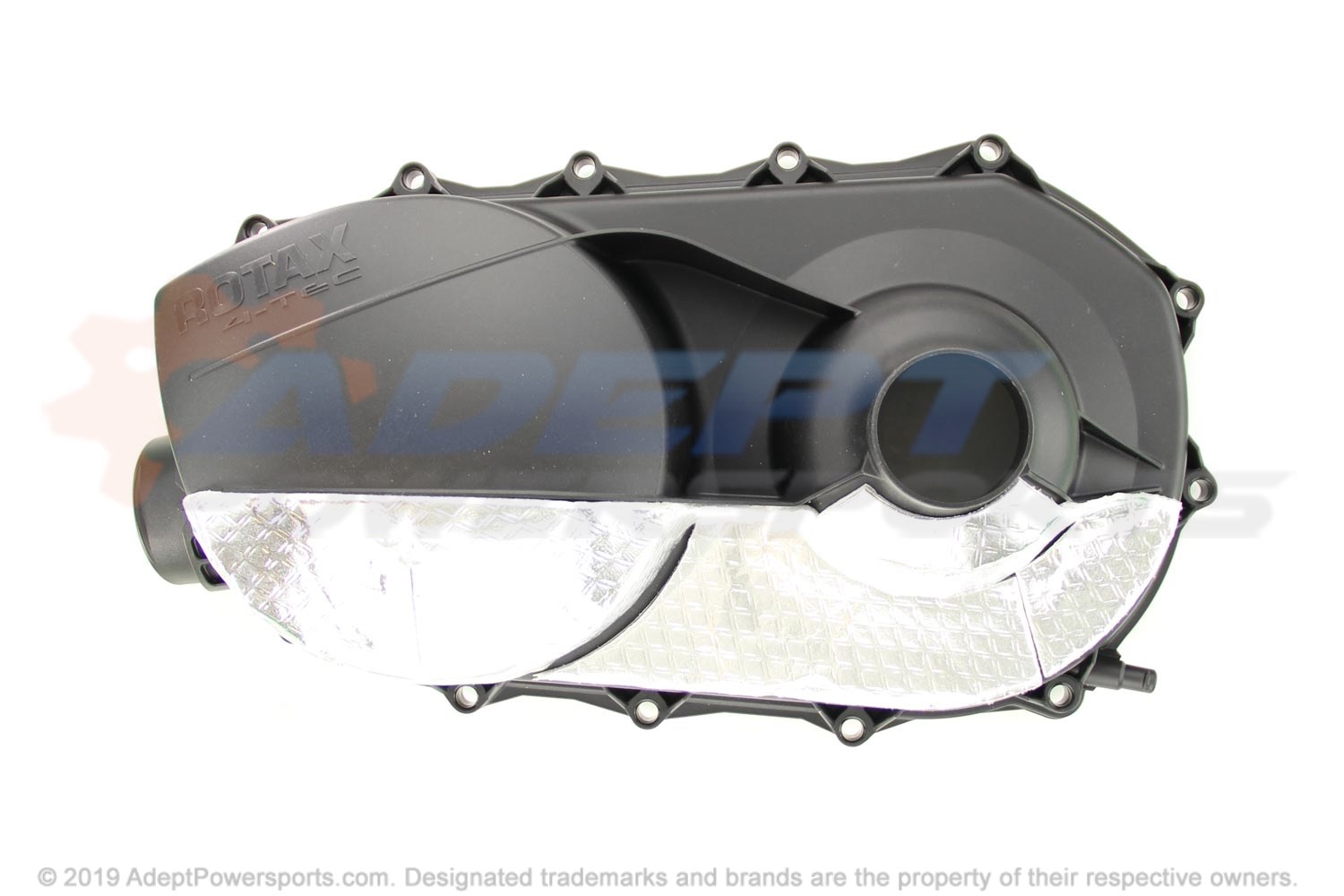

43	VARIATOR COVER ASSEMBLY. INCLUDE 45, XMR Part #: 420212286 Required per assembly: 1 Note: Cover with dual inlet. After July 1, 2013 Currently Not Available
44	HEX. DISTANCE SCREW M6 X 30.5 Part #: 420440568 Required per assembly: 13 Note: For identical TORX head screw see p/n 420440561 Currently Not Available
45	HEAT PROTECTION MAT Part #: 715900313 Required per assembly: 1 Currently Not Available
46	DRAIN PLUG KIT Part #: 707001179 Required per assembly: 1 Currently Not Available
