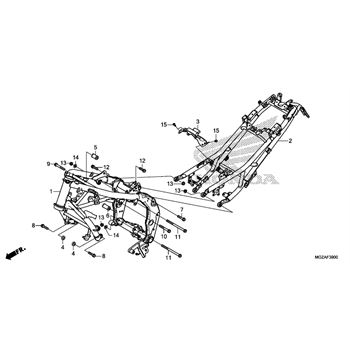

Frame replacement parts for 2015 Honda CB500FA

OEM Parts Honda 2015 Honda CB500FA Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	FRAME NH303M (MAT AXIS GRAY METALLIC) Part #: 50100-MGZ-A41ZA Required per assembly: 1 ~~$546.75~~ $433.01 - + Add to cart
001	FRAME NH303M (MAT AXIS GRAY METALLIC) Part #: 50100-MGZ-A42ZA Required per assembly: 1 ~~$546.75~~ $433.01 - + Add to cart
001	FRAME NH303M (MAT AXIS GRAY METALLIC) Part #: 50100-MGZ-J41ZA Required per assembly: 1 ~~$671.76~~ $528.96 - + Add to cart
002	RAIL, SEAT Part #: 50240-MGZ-J02 Required per assembly: 1 ~~$348.87~~ $278.09 - + Add to cart
002	RAIL, SEAT Part #: 50240-MGZ-J02 Required per assembly: 1 ~~$348.87~~ $278.09 - + Add to cart
003	BRACKET, FUEL, TANK Part #: 50295-MGZ-J00 Required per assembly: 1 $14.62 - + Add to cart
004	COLLAR, A, ENG, HGR Part #: 50351-MGZ-J01 Required per assembly: 2 $6.14 - + Add to cart
005	COLLAR, B, R., ENG, HGR Part #: 50353-MGZ-J00 Required per assembly: 1 $9.44 - + Add to cart
006	COLLAR, B, L., ENG, HGR Part #: 50354-MGZ-J00 Required per assembly: 1 $10.66 - + Add to cart
007	BOLT, FLANGE, (10X45) Part #: 90101-KTB-000 Required per assembly: 2 $5.94 - + Add to cart
008	BOLT, FLANGE, (10X40) Part #: 90101-MGZ-J00 Required per assembly: 2 ~~$3.03~~ $2.73 - + Add to cart
009	BOLT, FLANGE, (10X65) Part #: 90102-MGZ-J00 Required per assembly: 1 ~~$2.96~~ $2.65 - + Add to cart
010	BOLT, FLANGE, (10X75) Part #: 90103-MGZ-J00 Required per assembly: 1 ~~$3.27~~ $3.07 - + Add to cart
011	BOLT, FLANGE, (10X146), (DR) Part #: 90104-KYJ-900 Required per assembly: 2 $4.34 - + Add to cart
012	BOLT, FLANGE, (10X35) Part #: 90168-S2A-010 Required per assembly: 2 $6.44 - + Add to cart
013	NUT, FLANGE, (10MM) Part #: 94050-10000 Required per assembly: 4 $2.47 - + Add to cart
014	WASHER, PLAIN, (10MM) Part #: 94101-10800 Required per assembly: 2 $2.58 - + Add to cart
015	BOLT, FLANGE, (6X14) Part #: 95701-06014-08 Required per assembly: 4 ~~$2.63~~ $2.43 - + Add to cart
