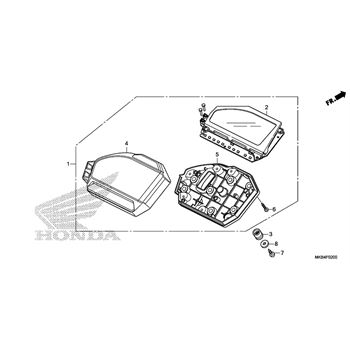

2015 Honda CBR1000S - Meter

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
001

METER, COMBINATION

Part #: 37100-MGP-A01 Required per assembly: 1
$1,413.53
$1,144.20
002

METER ASSEMBLY

Part #: 37130-MGP-A01 Required per assembly: 1
$1,217.00
$985.12
003

RUBBER

Part #: 37244-MM4-000 Required per assembly: 3
$6.15
$5.47
004

CASE ASSEMBLY (UPPER)

Part #: 37610-MGP-A01 Required per assembly: 1
$218.91
$177.20
005

CASE ASSEMBLY (LOWER)

Part #: 37620-MGP-D01 Required per assembly: 1
$51.65
$41.82
006

SCREW, TAP, (3X16)

Part #: 93903-22420 Required per assembly: 8
$2.02
$1.87
007

SCREW, TAP, (5X14)

Part #: 93913-25380 Required per assembly: 3
$1.95
$1.80
008

WASHER, PLAIN, (5MM)

Part #: 94103-05700 Required per assembly: 3
$1.98
$1.83

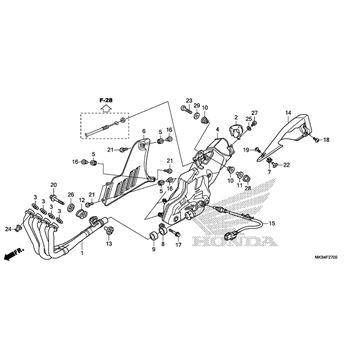

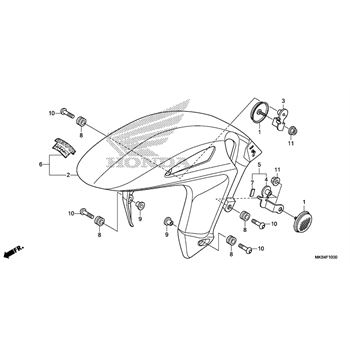

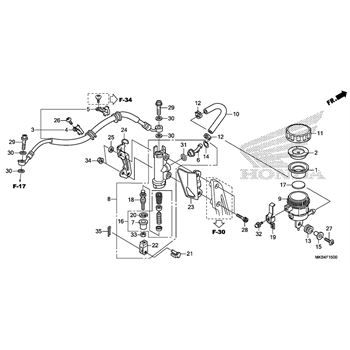

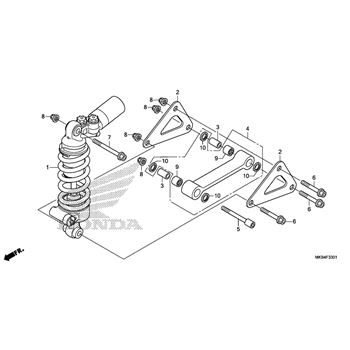

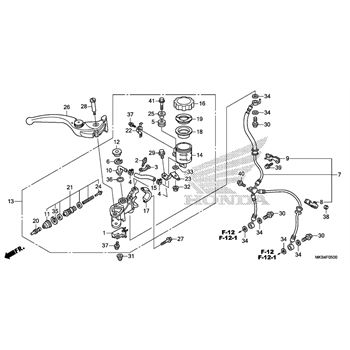

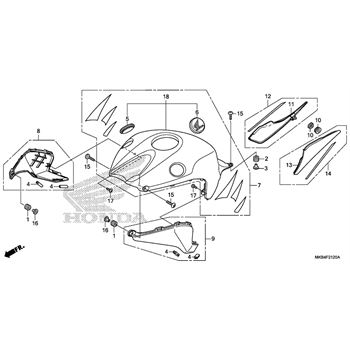

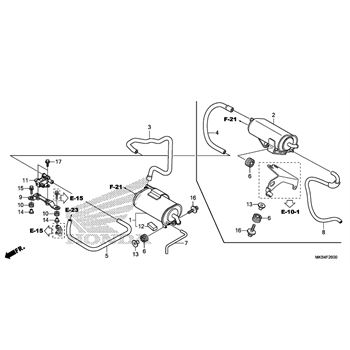

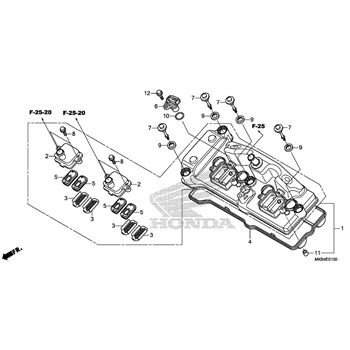

Other assembly diagrams for this model
