Radiator replacement parts for 2015 Honda VT750C2B

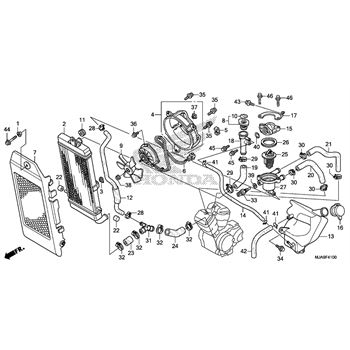

OEM Parts Honda 2015 Honda VT750C2B Radiator

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COLLAR Part #: 17216-HA7-670 Required per assembly: 1 $7.40 $6.49 - + Add to cart
002	RADIATOR (COO) Part #: 19010-MFE-305 Required per assembly: 1 $534.20 $449.80 - + Add to cart
003	NUT, SETTING Part #: 19014-KEA-003 Required per assembly: 2 $4.42 $4.02 - + Add to cart
004	SHROUD (COO) Part #: 19015-MBA-305 Required per assembly: 1 $49.04 $46.17 - + Add to cart
005	CLIP, HARNESS Part #: 19017-PK1-004 Required per assembly: 1 $9.64 $9.03 - + Add to cart
006	MOTOR, ASSEMBLY, FAN Part #: 19030-MFE-641 Required per assembly: 1 $290.53 $235.18 - + Add to cart
007	GRILLE, RADIATOR Part #: 19032-MEG-000 Required per assembly: 1 $66.16 $53.56 - + Add to cart
008	CAP, RADIATOR Part #: 19037-GEE-710 Required per assembly: 1 $35.08 $29.26 - + Add to cart
009	FAN, COOLING Part #: 19040-MF5-751 Required per assembly: 1 $69.08 $49.92 - + Add to cart
010	LABEL, RADIATOR, CAP Part #: 19046-PAA-A00 Required per assembly: 1 $4.36 $3.96 - + Add to cart
011	RUBBER Part #: 19051-KA3-710 Required per assembly: 1 $6.07 $5.42 - + Add to cart
012	HOSE, BYPASS Part #: 19071-MFE-640 Required per assembly: 1 $26.08 $21.11 - + Add to cart
013	TANK, RESERVE, (COO) Part #: 19101-MEG-305 Required per assembly: 1 $32.89 $26.62 - + Add to cart
014	HOSE, RESERVE, TANK Part #: 19102-MEG-000 Required per assembly: 1 $9.50 $8.20 - + Add to cart
015	CAP, THERMOSTAT Part #: 19103-MBA-000 Required per assembly: 1 $53.78 $43.53 - + Add to cart
016	CAP, RESERVE, TANK Part #: 19104-MB0-700 Required per assembly: 1 $14.10 $11.75 - + Add to cart
017	STAY, THERMOSTAT, CASE Part #: 19105-MFE-640 Required per assembly: 1 $5.18 $4.71 - + Add to cart
018	NECK, FILLER Part #: 19106-MFE-641 Required per assembly: 1 $35.65 $29.73 - + Add to cart
019	HOSE, RADIATOR, (UPPER) Part #: 19107-MFE-640 Required per assembly: 1 $10.67 $9.14 - + Add to cart
020	HOSE, FR., OUTLET, WATER Part #: 19108-MFE-640 Required per assembly: 1 $12.35 $10.30 - + Add to cart
021	HOSE, RR., OUTLET, WATER Part #: 19110-MFE-640 Required per assembly: 1 $14.89 $12.05 - + Add to cart
022	MOUNT, RADIATOR Part #: 19112-MF5-840 Required per assembly: 2 $6.15 $5.47 - + Add to cart
023	HOSE, A, RADIATOR, (LOWER) Part #: 19115-MEG-A60 Required per assembly: 1 $13.90 $11.57 - + Add to cart
024	HOSE, B, RADIATOR, (LOWER) Part #: 19116-MEG-A60 Required per assembly: 1 $17.37 $14.05 - + Add to cart
025	THERMOSTAT ASSEMBLY Part #: 19300-MCH-A00 Required per assembly: 1 $55.36 $46.17 - + Add to cart
026	RUBBER, THERMOSTAT Part #: 19305-KV3-010 Required per assembly: 1 $7.29 $6.40 - + Add to cart
027	CASE, THERMOSTAT Part #: 19311-MFE-640 Required per assembly: 1 $63.00 $51.00 - + Add to cart
028	CLAMP (25MM) Part #: 19504-KY1-003 Required per assembly: 2 $11.92 $10.16 - + Add to cart
029	CLAMP, WATER, HOSE Part #: 19505-ML3-770 Required per assembly: 2 $8.51 $7.39 - + Add to cart
030	CLAMP, B, WATER, HOSE Part #: 19506-KS6-700 Required per assembly: 4 $9.02 $7.79 - + Add to cart
031	JOINT, THREE, WAY, HOSE Part #: 19507-MFE-640 Required per assembly: 1 $6.75 $5.97 - + Add to cart
032	CLAMP, RADIATOR, HOSE Part #: 19509-MM5-003 Required per assembly: 4 $15.74 $13.12 - + Add to cart
033	SENSOR, WATER, TEMP Part #: 37870-KRJ-901 $35.64 $29.71 - + Add to cart
034	BOLT, FLANGE, (6MM) Part #: 90111-162-000 Required per assembly: 1 $3.91 $3.55 - + Add to cart
035	BOLT-WASHER (6X16) Part #: 90120-KCR-003 Required per assembly: 3 $5.28 $5.26 - + Add to cart
036	BOLT, FLANGE, (5MM) Part #: 90196-MBB-003 Required per assembly: 3 $3.69 $3.35 - + Add to cart
037	NUT, SPECIAL, (5MM) Part #: 90303-MBB-003 Required per assembly: 3 $4.32 - + Add to cart
038	NUT, SERRATE, (5MM) Part #: 90315-MK3-003 Required per assembly: 1 $3.29 $3.06 - + Add to cart
039	WASHER (12MM) Part #: 90454-MC7-000 Required per assembly: 1 $3.64 $3.31 - + Add to cart
040	O-RING (23X2.4) Part #: 94608-30000 Required per assembly: 1 $2.22 $2.06 - + Add to cart
041	CLIP, TUBE, (C11) Part #: 95002-70000 Required per assembly: 3 $2.64 $2.45 - + Add to cart
042	BULK HOSE (7X3000) Part #: 95005-70003-30M $27.19 $24.71 - + Add to cart
043	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 1 $2.63 $2.44 - + Add to cart
044	BOLT, FLANGE, (6X28) Part #: 95701-06028-07 Required per assembly: 1 $2.17 $2.00 - + Add to cart
045	BOLT, FLANGE, (6X12) Part #: 96001-06012-00 Required per assembly: 2 $2.79 $2.60 - + Add to cart
046	BOLT, FLANGE, (6X20) Part #: 96001-06020-00 Required per assembly: 2 $2.27 $2.10 - + Add to cart
