Headlight Pod - A15shs57cs (49Atvheadlight15850sp) replacement parts for 2015 Polaris Sportsman 570 SP EPS, Tractor

OEM Parts Polaris 2015 Polaris Sportsman 570 SP EPS, Tractor Headlight Pod - A15shs57cs (49Atvheadlight15850sp)

Headlight Pod - A15SHS57CS (49ATVHEADLIGHT15850SP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	POD-HDLT, FRONT, PNTD, SUNSET, RED Part #: 5451313-520 Required per assembly: 1 Currently Not Available

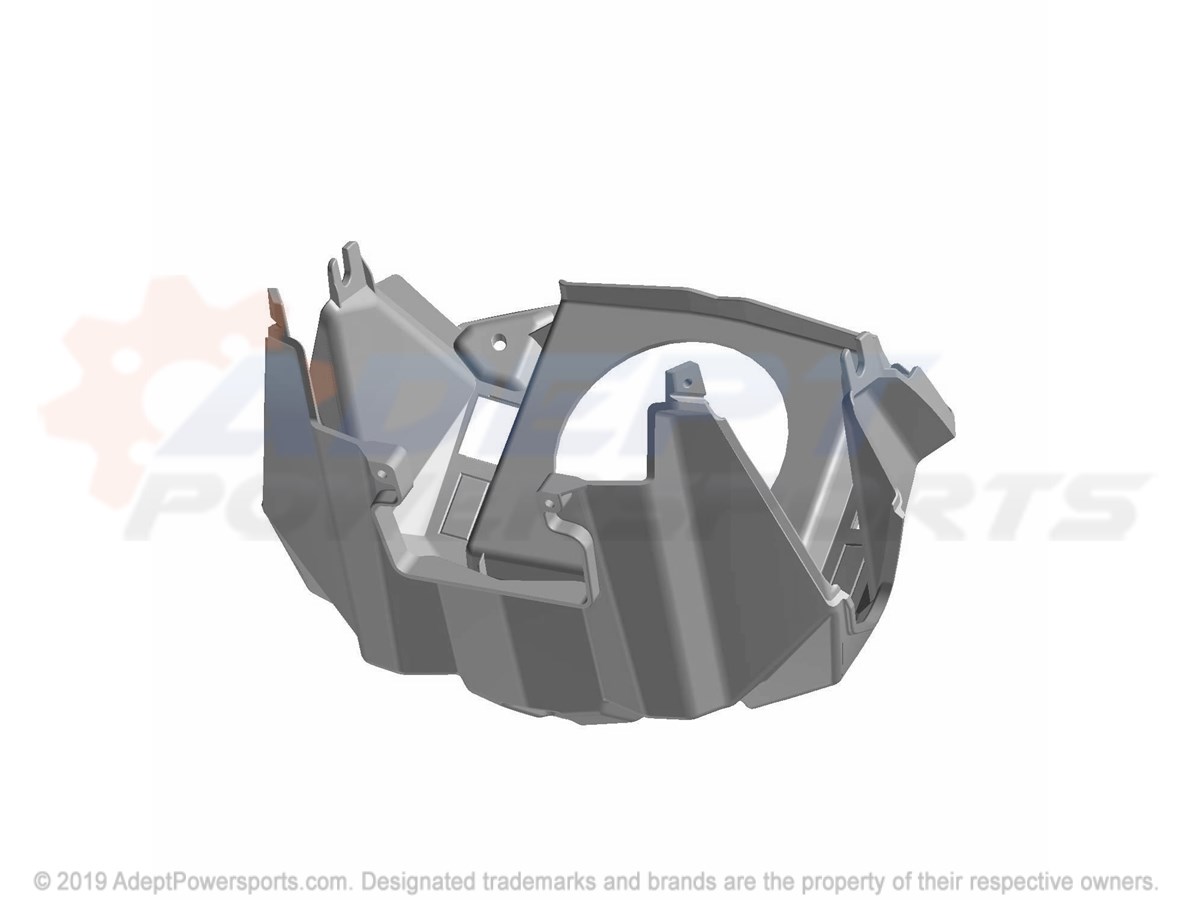

2	POD-HDLT, RR, W/RND, CUTOUT3, BLK Part #: 5451816-070 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7518238 Required per assembly: 5 ~~$3.79~~ $1.73 - + Add to cart
4	CLIP-SCREW, #8/10, .03-.10, PANEL Part #: 7670127 Required per assembly: 5 Currently Not Available
5	SCREW Part #: 7517441 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7512026 Required per assembly: 2 Note: Screw Currently Not Available
