Seat - A15sje57as/Av (49Atvseat14sp570trg) replacement parts for 2015 Polaris Sportsman 570 SP Touring

OEM Parts Polaris 2015 Polaris Sportsman 570 SP Touring Seat - A15sje57as/Av (49Atvseat14sp570trg)

Seat - A15SJE57AS/AV (49ATVSEAT14SP570TRG) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

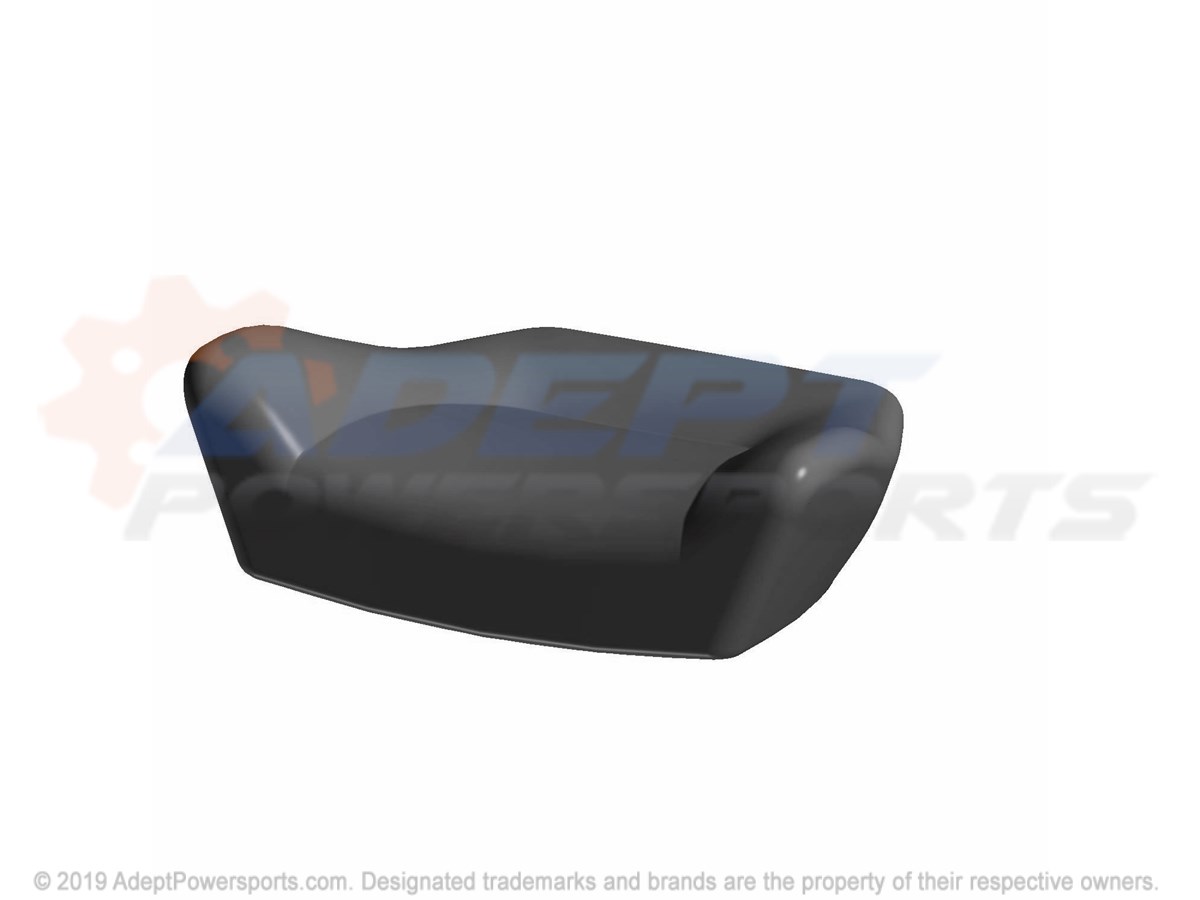

1	ASSEMBLY, SEAT, OPERATOR Part #: 2685589 Required per assembly: 1 Currently Not Available
2	BUMPER-RUBBER Part #: 5412067 Required per assembly: 4 Note: Bumper, Rubber Currently Not Available
3	ASSEMBLY, COVER, W/DECAL Part #: 2685590 Required per assembly: 1 Currently Not Available
4	GROMMET, SEAT, LATCH Part #: 5413691 Required per assembly: 2 Currently Not Available
5	SUPPORT, SEAT, BACK, BLACK Part #: 1020037-067 Required per assembly: 1 Currently Not Available

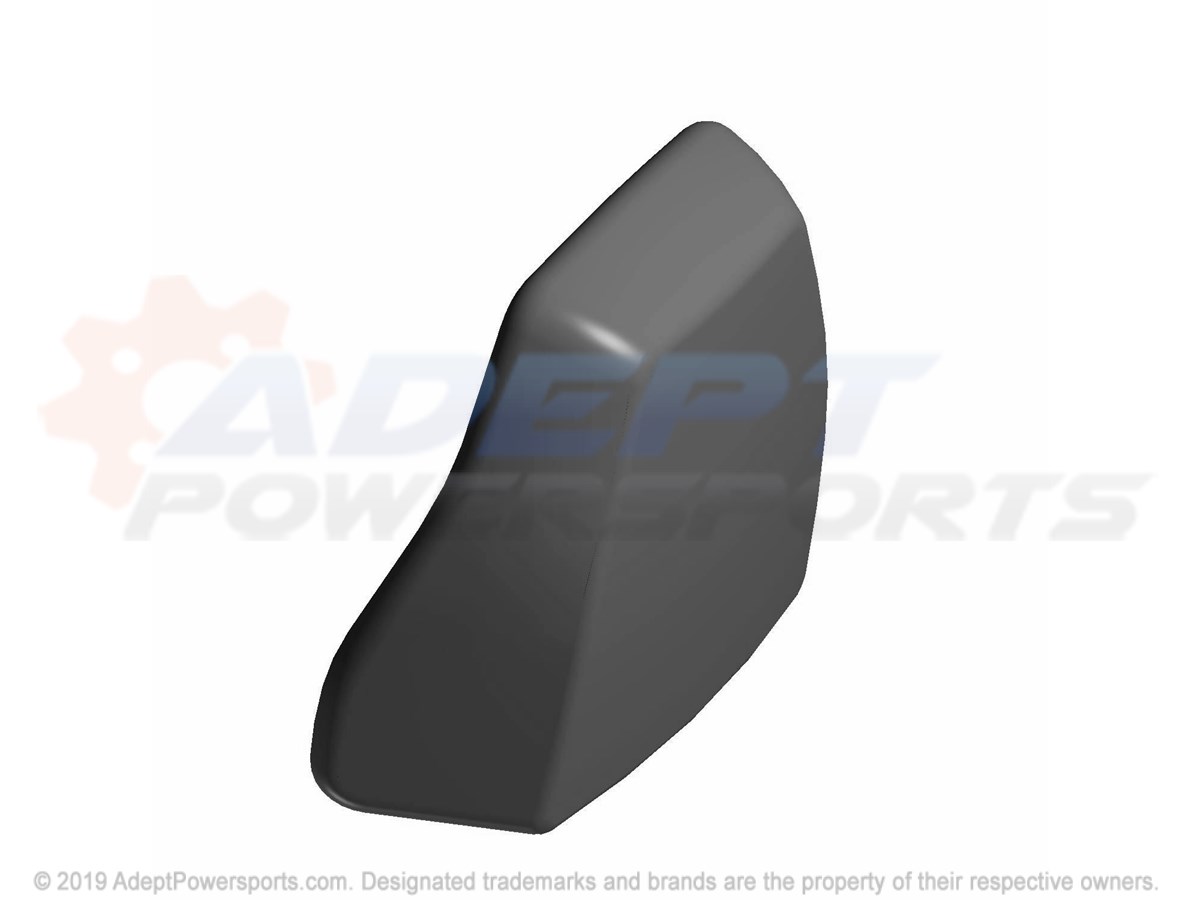

6	ASM-SEAT, PASS, STX, BLK Part #: 2686320 Required per assembly: 1 Currently Not Available
7	ASM-SEAT, COVER, PASS, STX, BLK Part #: 2686321 Required per assembly: 1 Currently Not Available
8	PLATE, SEAT, BACK, SUPPORT Part #: 5251351-329 Required per assembly: 1 Currently Not Available
9	BUMPER-RUBBER Part #: 5412067 Required per assembly: 2 Note: Bumper, Rubber Currently Not Available
10	SCREW Part #: 7512253 Required per assembly: 4 Note: Screw Currently Not Available
11	SCREW Part #: 7518280 Required per assembly: 4 Currently Not Available
12	NUT Part #: 7542153 Required per assembly: 4 Note: Nut, Flanged, Nylok ~~$3.47~~ $2.30 - + Add to cart
