Steering Post Asm. - A15sva85ad (49Atvsteering15scram850) replacement parts for 2015 Polaris Scrambler 850

OEM Parts Polaris 2015 Polaris Scrambler 850 Steering Post Asm. - A15sva85ad (49Atvsteering15scram850)

Steering Post Asm. - A15SVA85AD (49ATVSTEERING15SCRAM850) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, TIE, ROD Part #: 1824007 Required per assembly: 2 Currently Not Available
2	PIN-COTTER Part #: 7661205 Required per assembly: 4 ~~$35.99~~ $1.15 - + Add to cart
3	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
4	WASHER, FLAT Part #: 7556153 Required per assembly: 2 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
5	NUT, FLANGE Part #: 7547317 Required per assembly: 4 Currently Not Available
6	BUSHING-UPPER STEERING Part #: 5438904 Required per assembly: 2 Currently Not Available
7	BRACKET, UPPER, STEERING, BUSHING Part #: 5259997 Required per assembly: 1 Currently Not Available
8	BOLT, CARRIAGE Part #: 7518479 Required per assembly: 2 Currently Not Available
9	SCREW, FLANGE Part #: 7518450 Required per assembly: 4 Currently Not Available

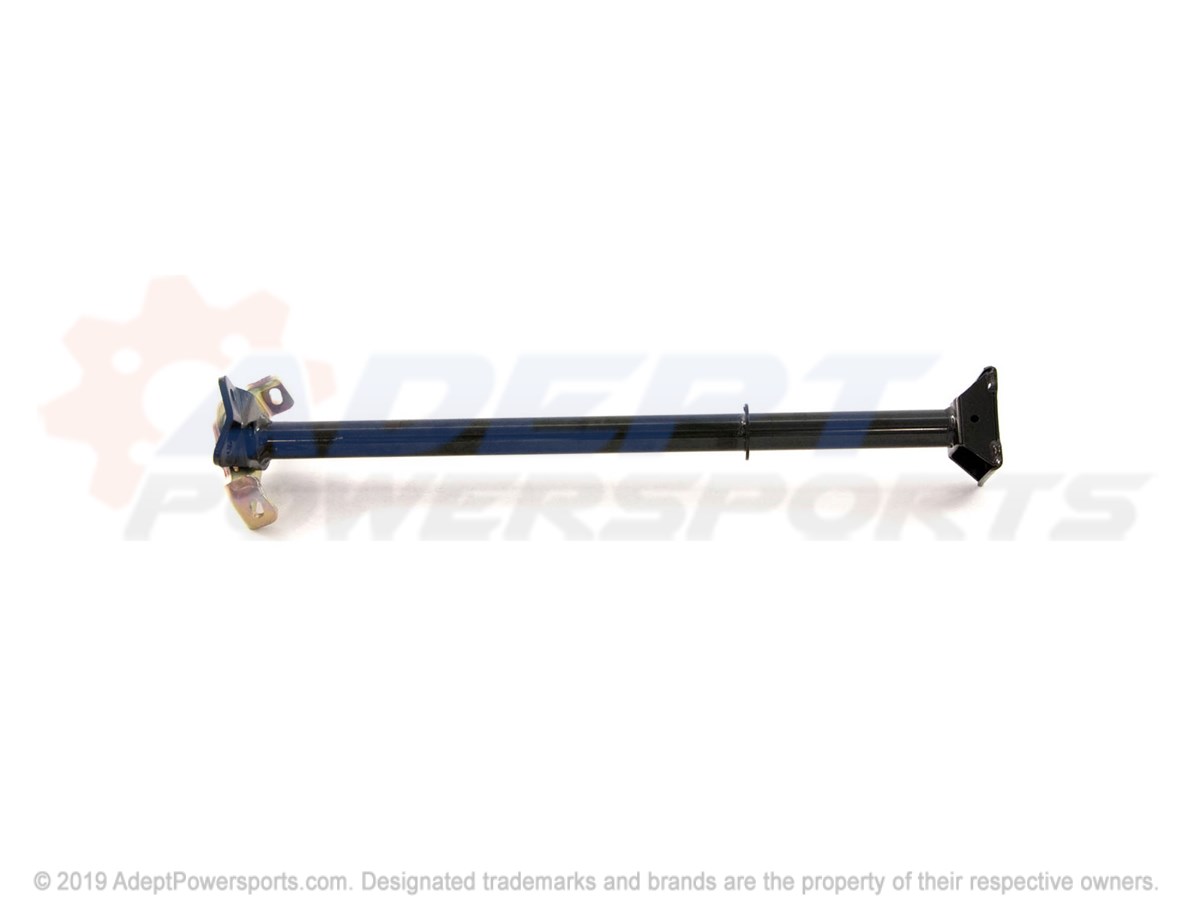

10	ASM-STEERING POST Part #: 1824281 Required per assembly: 1 Currently Not Available
