Rear Cab - A15sva85fd (49Atvcabrr13850scram) replacement parts for 2015 Polaris Scrambler 850 EU

OEM Parts Polaris 2015 Polaris Scrambler 850 EU Rear Cab - A15sva85fd (49Atvcabrr13850scram)

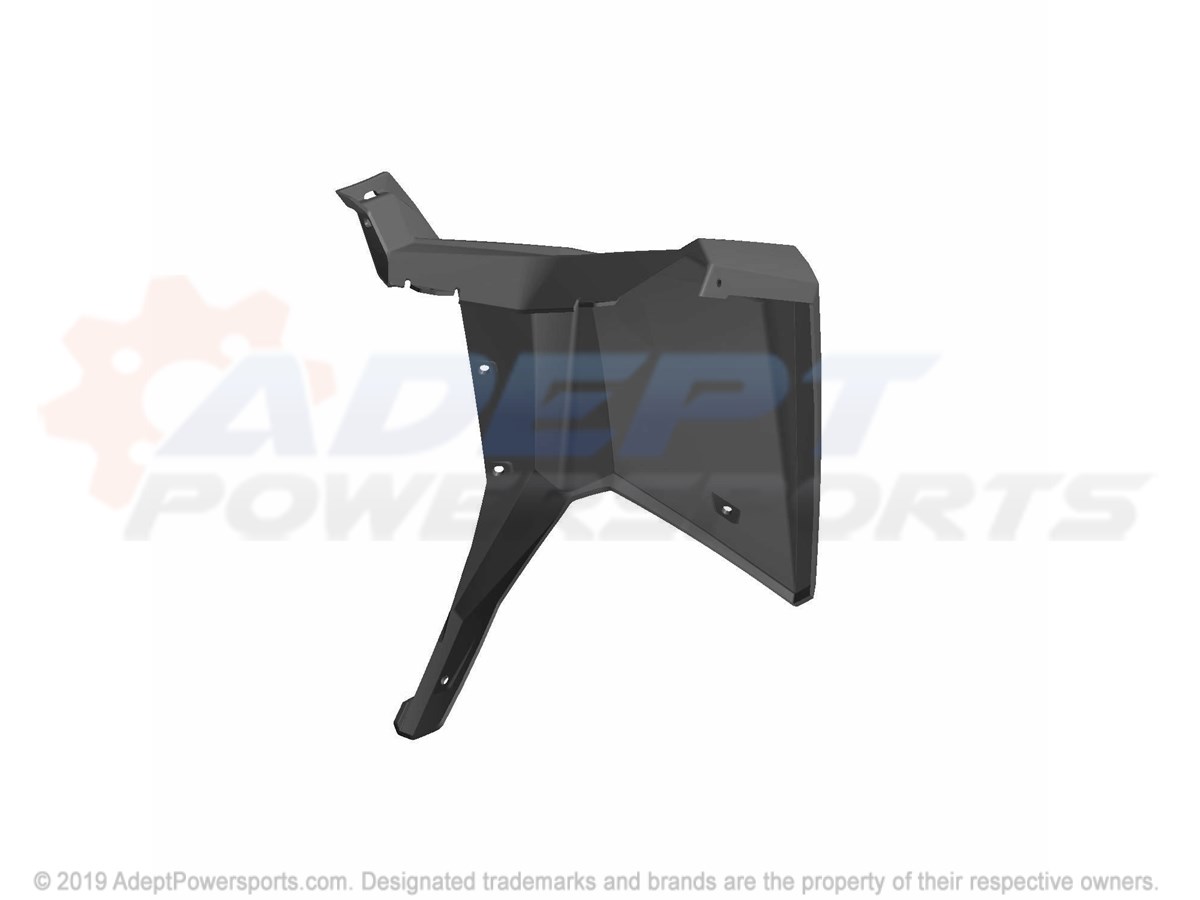

Rear Cab - A15SVA85FD (49ATVCABRR13850SCRAM) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SHIELD, HEAT Part #: 5256534 Required per assembly: 1 Currently Not Available
2	ASM-RR, CAB, LH, SCRAMBLER, EU, RED Part #: 2635752-293 Required per assembly: 1 Note: INCL. WARNING DECAL Currently Not Available
3	CAB, REAR, RH, INDY, RED Part #: 5439326-293 Required per assembly: 1 Currently Not Available
4	FOIL, FIBER, BOX, REAR Part #: 5813924 Required per assembly: 1 Currently Not Available
5	RIVET Part #: 7661855 Required per assembly: 10 ~~$2.99~~ $1.73 - + Add to cart
