Rear Cab And Rear Rack - A15sxe95fk (49Atvcabrr15f1eu) replacement parts for 2015 Polaris Forest 1000 EU

OEM Parts Polaris 2015 Polaris Forest 1000 EU Rear Cab And Rear Rack - A15sxe95fk (49Atvcabrr15f1eu)

Rear Cab and Rear Rack - A15SXE95FK (49ATVCABRR15F1EU) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

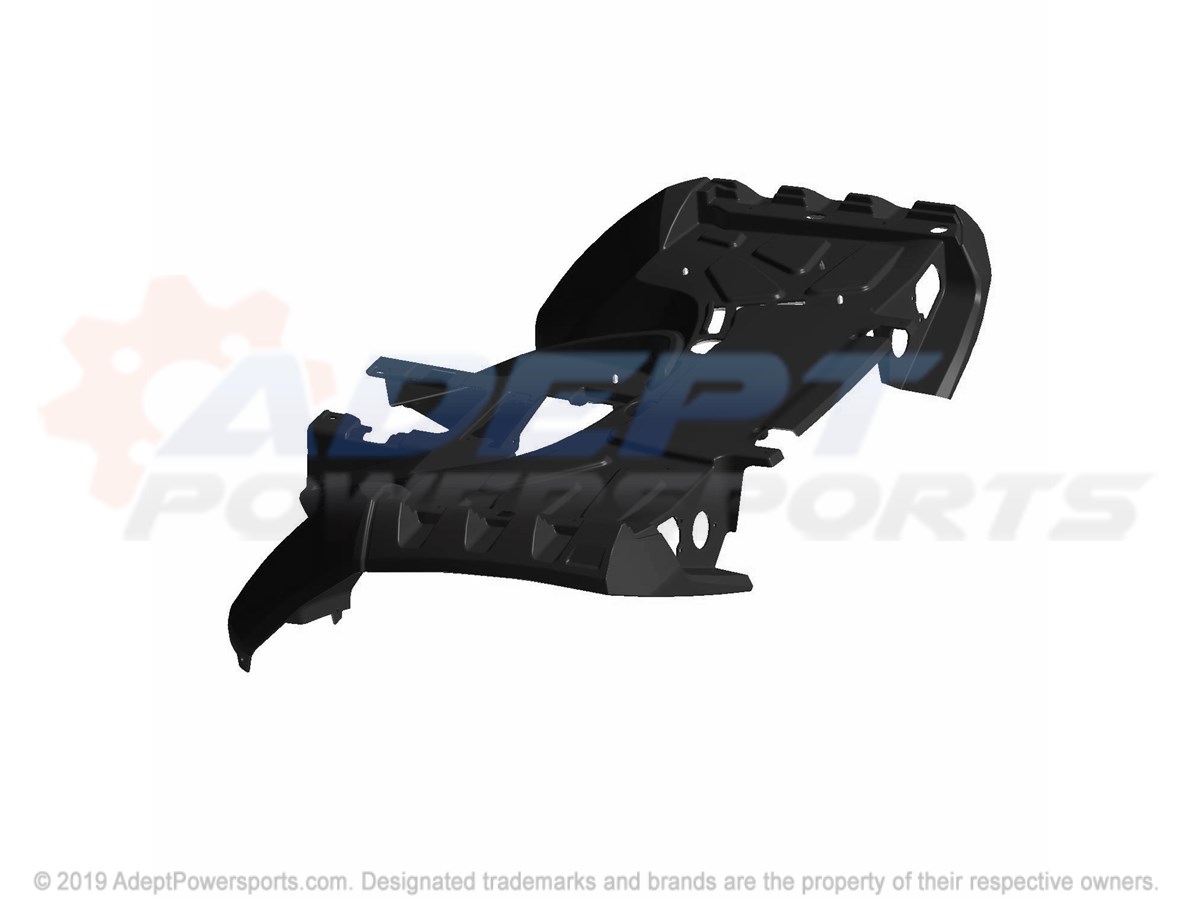

1	ASM-CAB, REAR, BLACK, PEARL Part #: 2635037-666 Required per assembly: 1 Note: INCL. 13,14 Currently Not Available
2	ASM-REAR, RACK, EU, BLK Part #: 2635749-070 Required per assembly: 1 Note: INCL. WARNING DECAL Currently Not Available
3	WASHER, WROUGHT Part #: 7558302 Required per assembly: 4 Currently Not Available
4	NUT Part #: 7547274 Required per assembly: 8 Note: Nut, Flange Currently Not Available
5	SCREW Part #: 7519001 Required per assembly: 12 Currently Not Available
6	SCREW Part #: 7518555 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
7	RIVET Part #: 7661855 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
8	TUBE, SUPPORT, RACK, REAR, FRONT, BLACK Part #: 5335770-329 Required per assembly: 1 Currently Not Available
9	BRACKET, RACK, REAR, BLACK Part #: 1016782-329 Required per assembly: 1 Currently Not Available
10	SUPPORT, RACK, REAR, BLACK Part #: 1015776-067 Required per assembly: 1 Currently Not Available

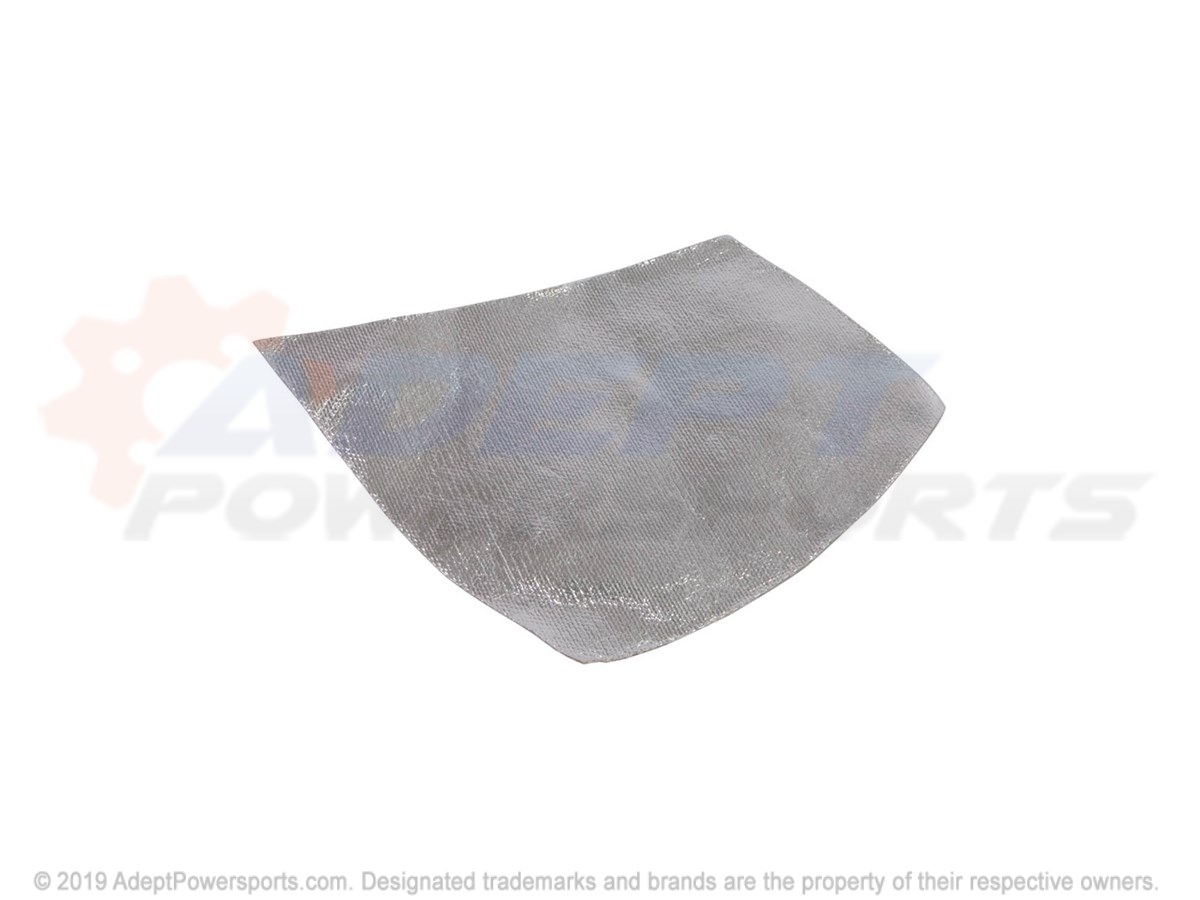

11	SHIELD-HEAT Part #: 5260147 Required per assembly: 1 Currently Not Available
12	SHIELD-HEAT FOOTWELL Part #: 5260610 Required per assembly: 1 Currently Not Available
13	SHIELD-HEAT REAR CAB Part #: 5254434 Required per assembly: 1 Currently Not Available
14	CLIP, PLASTIC, DART, NYLON Part #: 7670090 Required per assembly: 2 Note: Clip, Dart ~~$2.99~~ $1.73 - + Add to cart
15	FOIL-SHIELD, FENDER, RH Part #: 5814216 Required per assembly: 1 Currently Not Available
