Rear Cab And Footwell - A15sye85as/Av (100050) replacement parts for 2015 Polaris Sportsman Touring 850 SP

OEM Parts Polaris 2015 Polaris Sportsman Touring 850 SP Rear Cab And Footwell - A15sye85as/Av (100050)

Rear Cab and Footwell - A15SYE85AS/AV (100050) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RIVET Part #: 7661855 Required per assembly: 18 ~~$2.99~~ $1.73 - + Add to cart
2	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 8 Currently Not Available
3	SCREW Part #: 7518529 Required per assembly: 12 ~~$2.99~~ $1.73 - + Add to cart
4	CAB-RR, SPM, TOUR, PNTD, BLUE, FIRE Part #: 5451775-620 Required per assembly: 1 Currently Not Available

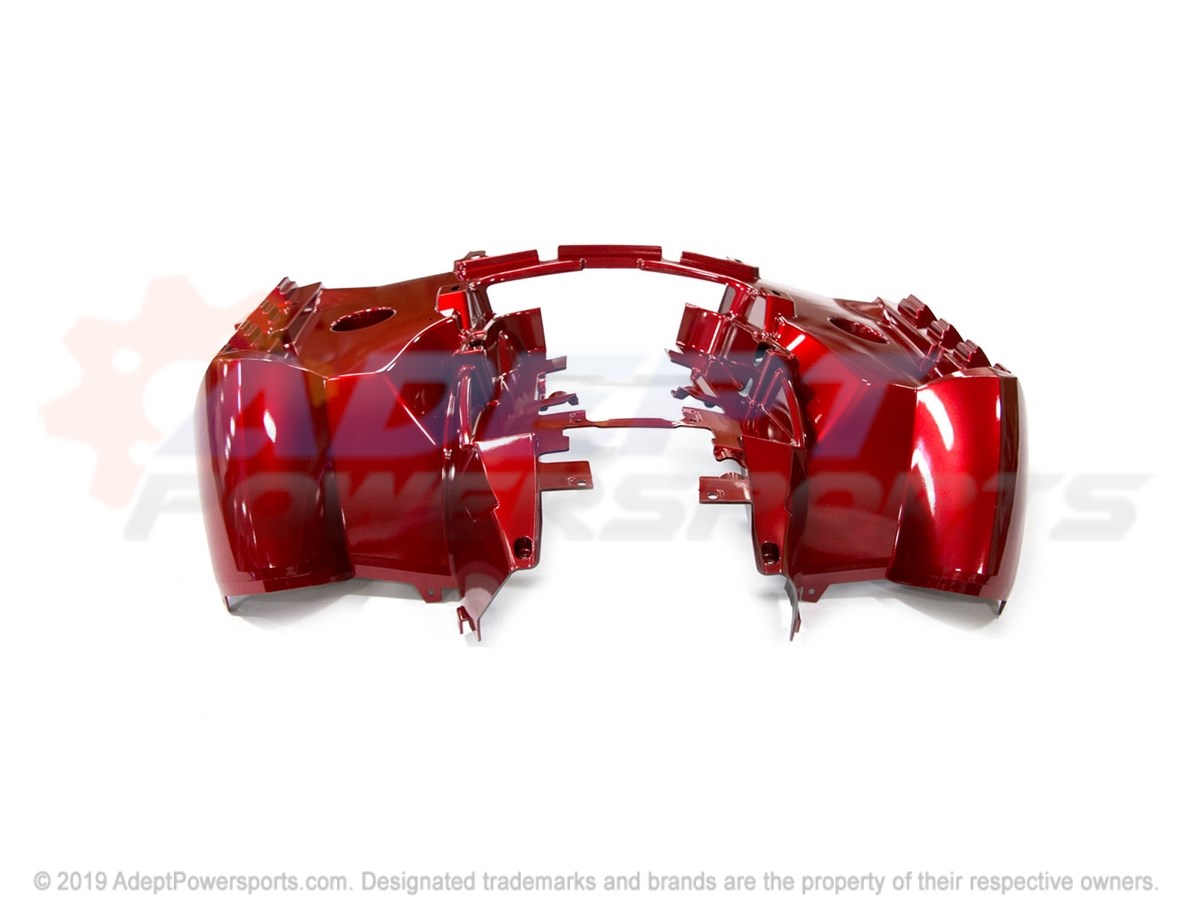

4	CAB-RR, SPM, TRG, PNTD, SUNSET, RED Part #: 5451775-520 Required per assembly: 1 Currently Not Available
5	NUT Part #: 7547274 Required per assembly: 12 Note: Nut, Flange Currently Not Available

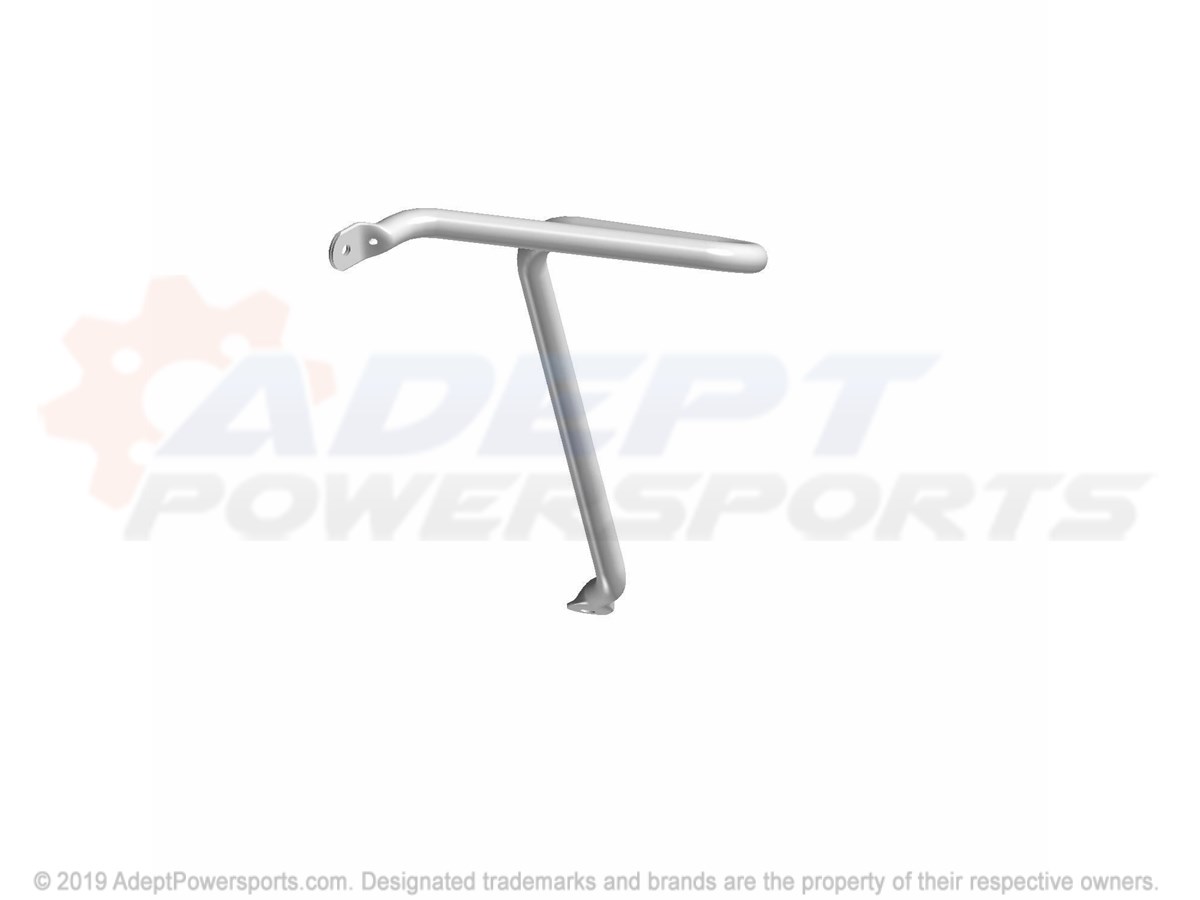

6	SUPPORT, FOOTPAD, LH Part #: 5437600 Required per assembly: 2 Currently Not Available
7	SUPPORT, FOOTPAD, RH Part #: 5437601 Required per assembly: 1 Currently Not Available
8	FOOTWELL, BLACK, LH Part #: 5437888-070 Required per assembly: 1 Currently Not Available
8	FOOTWELL-RH BLK Part #: 5439078-070 Required per assembly: 1 Currently Not Available

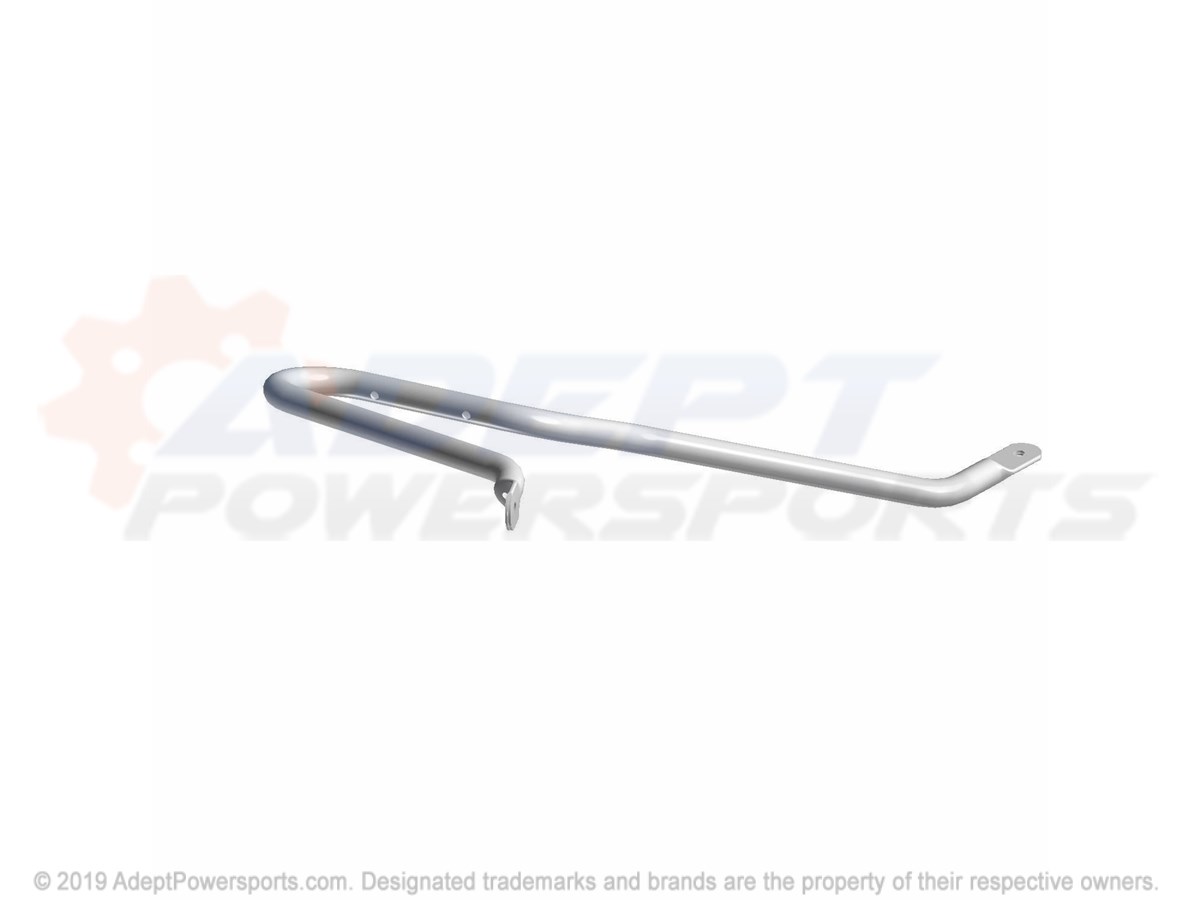

9	TUBE-FOOTWELL, SUPPORT, LH, BLK Part #: 5338574-329 Required per assembly: 1 Currently Not Available
10	TUBE-FOOTWELL, SUPPORT, RH, BLK Part #: 5338575-329 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7517610 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
12	PAD, FOOTWELL, SHORT Part #: 5413165 Required per assembly: 2 Currently Not Available
