Battery - A15sye85fs (49Atvbattery14sptrg850) replacement parts for 2015 Polaris Sportsman 850 Touring SP EU

OEM Parts Polaris 2015 Polaris Sportsman 850 Touring SP EU Battery - A15sye85fs (49Atvbattery14sptrg850)

Battery - A15SYE85FS (49ATVBATTERY14SPTRG850) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE-BATTERY/SOLENOID Part #: 4012710 Required per assembly: 1 Currently Not Available
2	STOP, TORQUE Part #: 3021354 Required per assembly: 2 Currently Not Available
3	BATTERY BRACKET Part #: 5253600 Required per assembly: 1 Note: USED W/4011224 Currently Not Available
3	BRKT-BATTERY STRAP 18A-H Part #: 5253372 Required per assembly: 1 Note: USED W/4011496 Currently Not Available
5	COVER, BATTERY Part #: 5438299 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7517854 Required per assembly: 3 Note: Screw Currently Not Available
7	RETAINER, BOLT Part #: 7670154 Required per assembly: 1 Currently Not Available
7	WELD-NUT, PLATE, REAR Part #: 1015202 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7519145 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518644 Required per assembly: 4 Currently Not Available
12	MOUNT-ENGINE, RUBBER, BOTTOM Part #: 5411686 Required per assembly: 1 Currently Not Available
13	MOUNT-ENGINE, RUBBER, TOP Part #: 5411685 Required per assembly: 1 Currently Not Available
13	NUT Part #: 7547274 Required per assembly: 1 Note: Nut, Flange Currently Not Available

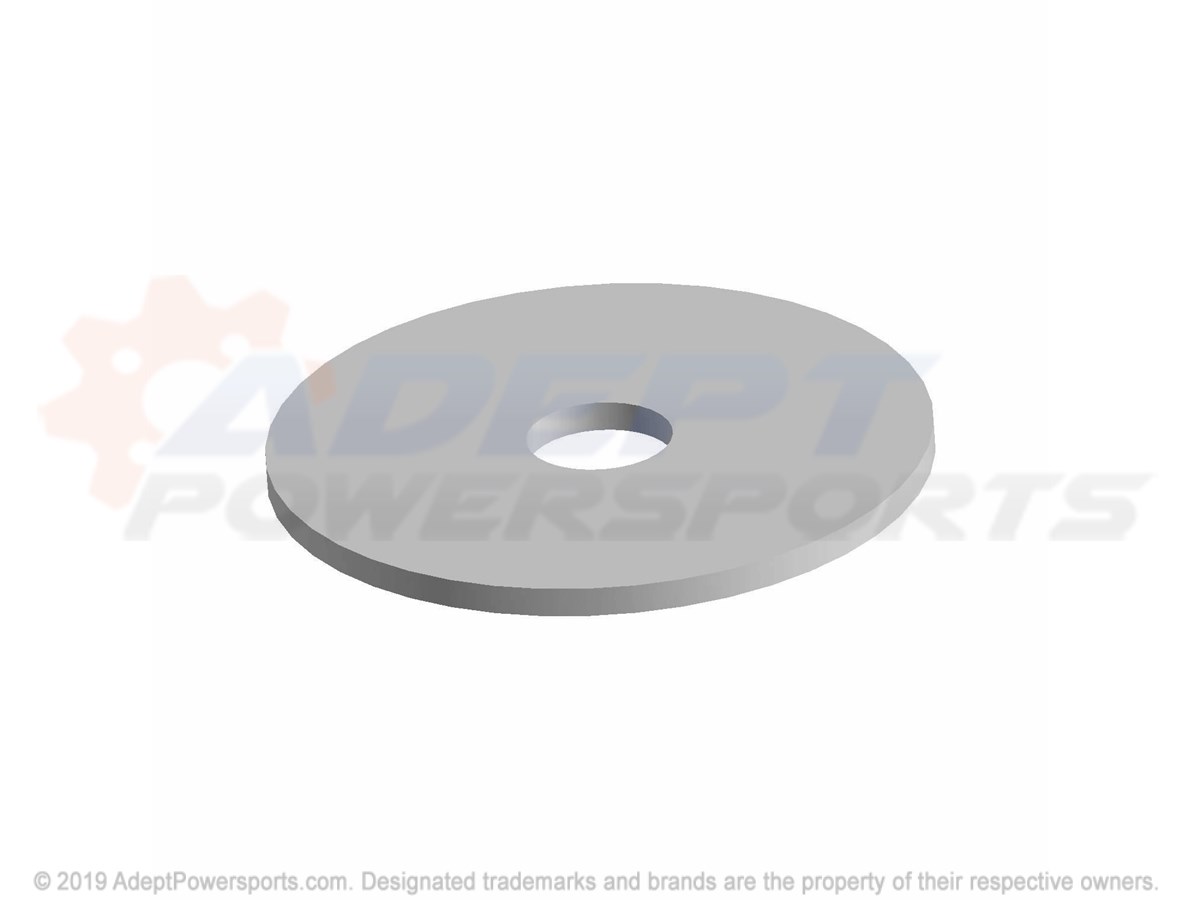

14	WASHER, FLAT Part #: 7555915 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
15	CABLE, BATTERY Part #: 4014525-360 Required per assembly: 1 Currently Not Available
