Cooling System - A15sye85hs (49Atvcool13spxp850) replacement parts for 2015 Polaris Sportsman 850 Touring SP MD

OEM Parts Polaris 2015 Polaris Sportsman 850 Touring SP MD Cooling System - A15sye85hs (49Atvcool13spxp850)

Cooling System - A15SYE85HS (49ATVCOOL13SPXP850) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

3	BATTERY-30AH, 12, VOLT, AGM Part #: 4014609 Required per assembly: 1 Currently Not Available
4	CABLE-STARTER, 71", RED Part #: 4012683 Required per assembly: 1 Currently Not Available
5	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413509 Required per assembly: 2 Currently Not Available
5	CABLE, STARTER, BLACK, 65, INCH Part #: 4012251 Required per assembly: 1 Currently Not Available
6	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
7	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 2 Currently Not Available
8	CAP, PRESSURE Part #: 1240466 Required per assembly: 1 Currently Not Available
9	RADIATOR Part #: 1240404 Required per assembly: 1 Currently Not Available

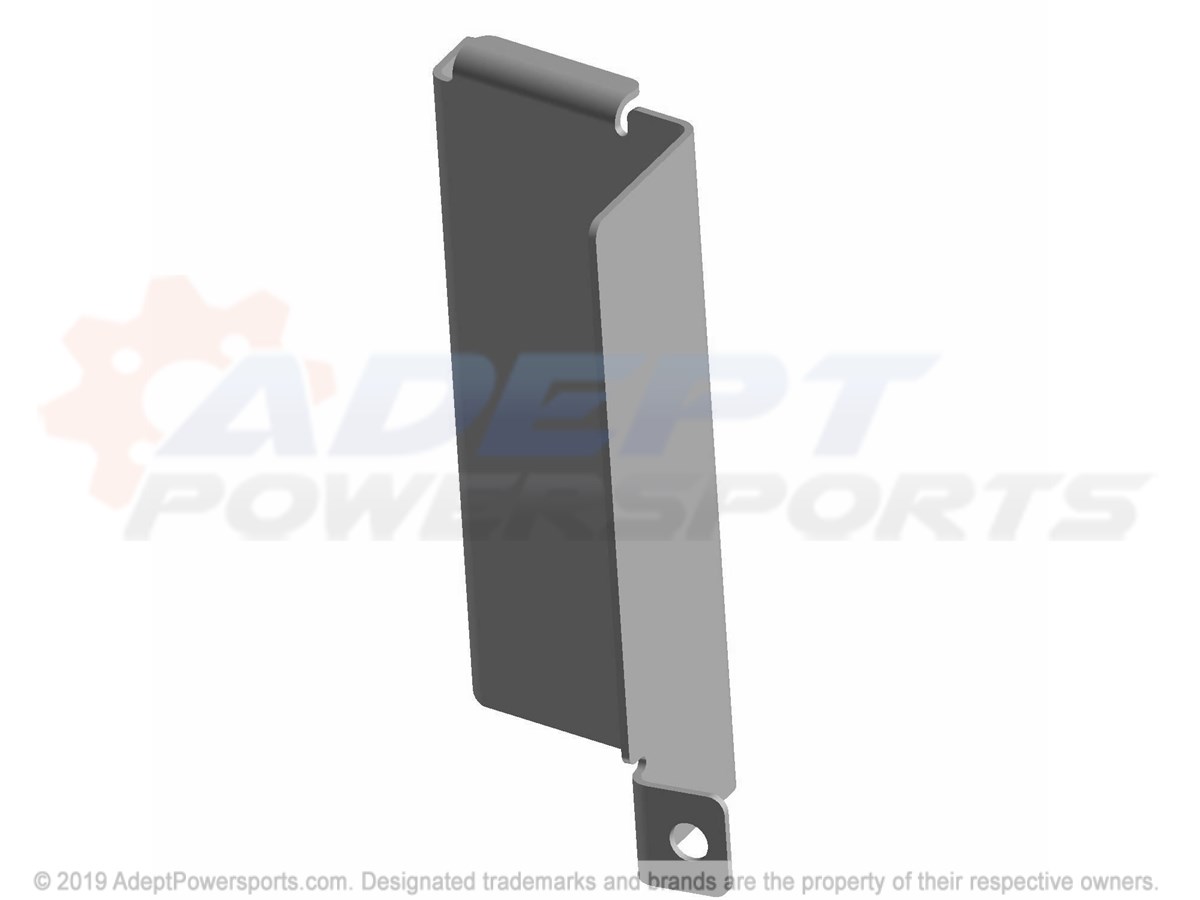

9	PROTECTOR, HARNESS, REAR Part #: 5252352 Required per assembly: 1 Currently Not Available
9	ASM-RADIATOR, 850, SPMN, LED Part #: 1241437 Required per assembly: 1 Note: INCL. 3,4,8-10,18 Currently Not Available
10	GROMMET, RADIATOR, MOUNT, LOWER Part #: 5413510 Required per assembly: 2 Currently Not Available
10	NUT-LOCK Part #: 7542122 Required per assembly: 3 Currently Not Available
11	CLAMP, HOSE Part #: 7080908 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7518513 Required per assembly: 1 Currently Not Available
13	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 2 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
14	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
15	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
16	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
17	ASSEMBLY, BOTTLE, COOLANT, RECOVERY Part #: 1240406 Required per assembly: 1 Currently Not Available
18	FAN-12", SHROUD, SPMN, LED Part #: 2415279 Required per assembly: 1 Currently Not Available
19	CLAMP, HOSE Part #: 7081192 Required per assembly: 1 Currently Not Available
