Hood, Dash And Grill - R15rma32aa/Aj (49Rgrhood15325) replacement parts for 2015 Polaris Ranger ETX

OEM Parts Polaris 2015 Polaris Ranger ETX Hood, Dash And Grill - R15rma32aa/Aj (49Rgrhood15325)

Hood, Dash and Grill - R15RMA32AA/AJ (49RGRHOOD15325) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

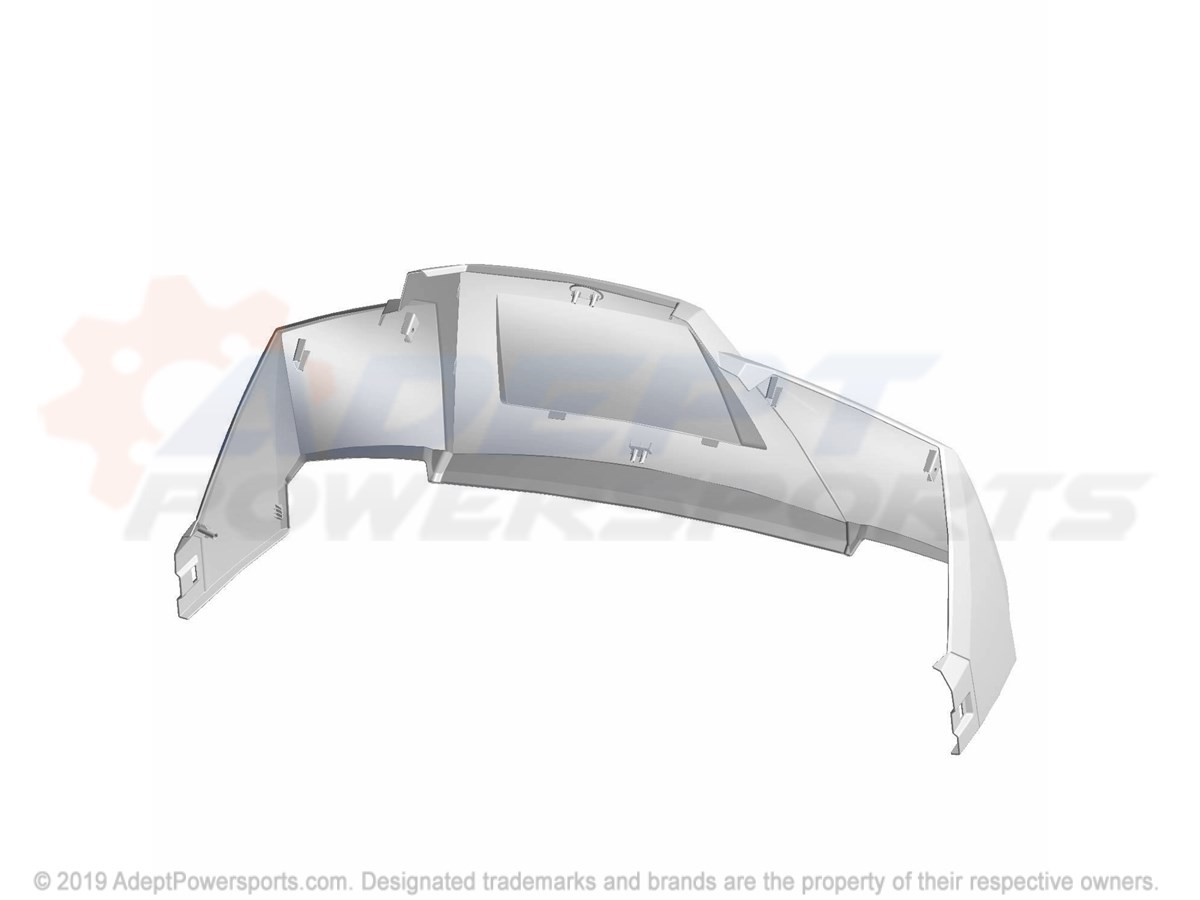

1	HOOD-BASIC, WHITE, LIGHT Part #: 5451006-599 Required per assembly: 1 Note: AJ Currently Not Available
1	HOOD-BASIC, SAFEBRUSH, GRN Part #: 5451006-498 Required per assembly: 1 Note: AA Currently Not Available
2	FASCIA-FRONT, RANGER, BLK Part #: 5451005-070 Required per assembly: 1 Currently Not Available
3	STRAP-RETAINER, HOOD Part #: 5415295 Required per assembly: 2 Currently Not Available
4	DASH-PANEL, LOWER, CPI, BLK Part #: 5451129-070 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 7519650 Required per assembly: 4 Currently Not Available
6	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available
7	CLEVIS (US ONLY) Part #: 7661843 Required per assembly: 2 Note: Pin, Clevis Currently Not Available
8	PIN, HITCH Part #: 7662139 Required per assembly: 2 Currently Not Available
9	COVER-GLOVEBOX, BLK Part #: 5451007-070 Required per assembly: 1 Currently Not Available
10	SEAL-GLOVEBOX Part #: 5522052 Required per assembly: 1 Currently Not Available
11	GROMMET Part #: 5412504 Required per assembly: 1 Currently Not Available
13	DASH-PANEL, UPPER, BLK Part #: 5451009-070 Required per assembly: 1 Currently Not Available
14	CLIP, DASH, TRIM, METAL Part #: 7519806 Required per assembly: 2 Currently Not Available
15	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
16	RETAINER Part #: 7670146 Required per assembly: 2 Currently Not Available
17	PLUG, HOLE, ROCKER, SWITCH Part #: 5434192 Required per assembly: 1 Currently Not Available
18	GROMMET, SHIFT, LEVER Part #: 5414249 Required per assembly: 1 Currently Not Available
19	GROMMET-STEERING Part #: 5415087 Required per assembly: 1 Currently Not Available
20	RETAINER, BOLT Part #: 7670154 Required per assembly: 5 Currently Not Available
21	NUT, U-TYPE Part #: 7547674 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
