Cooling System - R15rma57fa (49Rgrcool15570) replacement parts for 2015 Polaris Ranger 570 EU

OEM Parts Polaris 2015 Polaris Ranger 570 EU Cooling System - R15rma57fa (49Rgrcool15570)

Cooling System - R15RMA57FA (49RGRCOOL15570) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
2	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE ~~$11.99~~ $6.90 - + Add to cart
3	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
4	BRKT-SURGE TANK Part #: 5254763 Required per assembly: 1 Currently Not Available
5	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
6	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
7	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
8	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
9	U-CLIP Part #: 7547366 Required per assembly: 4 Note: Clip, U ~~$5.39~~ $3.89 - + Add to cart
10	HOSE-BYPASS 1IN FORMED Part #: 5414162 Required per assembly: 1 Currently Not Available
11	HOSE, BYPASS, 1/2, INCH, FORMED Part #: 5414590 Required per assembly: 1 Currently Not Available
12	CONNECTOR-TEE 1X1X0.5 Part #: 7052530 Required per assembly: 1 Currently Not Available
13	CLAMP, HOSE Part #: 7080474 Required per assembly: 1 Note: Clamp, Hose ~~$9.44~~ $6.81 - + Add to cart
14	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 8 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
15	HOSE-LOWER, RAD Part #: 5414977 Required per assembly: 1 Currently Not Available
16	HOSE-ENGINE, OUTLET, REAR Part #: 5415053 Required per assembly: 1 Currently Not Available
17	HOSE-LOWER, ENGINE, SHORT Part #: 5415054 Required per assembly: 1 Currently Not Available
18	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 ~~$4.04~~ $2.91 - + Add to cart
19	CAP-PRESSURE Part #: 1240899 Required per assembly: 1 Currently Not Available
20	HOSE-UPPER, RAD Part #: 5415269 Required per assembly: 1 Currently Not Available
21	ASM-GROMMET & INSERT Part #: 5415268 Required per assembly: 2 Currently Not Available
22	VALVE-PLASTIC RAD/COOLER DRAIN Part #: 7052617 Required per assembly: 1 Currently Not Available
23	ASSEMBLY, FAN Part #: 2410865 Required per assembly: 1 Currently Not Available
24	BRACKET-COOLANT TUBE Part #: 5451221 Required per assembly: 3 Currently Not Available
25	SHROUD, FAN Part #: 5436852 Required per assembly: 1 Currently Not Available
26	CLAMP, HOSE Part #: 7081192 Required per assembly: 2 Currently Not Available
27	SCREW Part #: 7516822 Required per assembly: 8 Currently Not Available
28	SCREW Part #: 7519001 Required per assembly: 2 Currently Not Available
29	GROMMET-FLANGED Part #: 7052616 Required per assembly: 2 Currently Not Available
30	TUBE-COOLANT, 1" Part #: 5139239 Required per assembly: 2 Currently Not Available

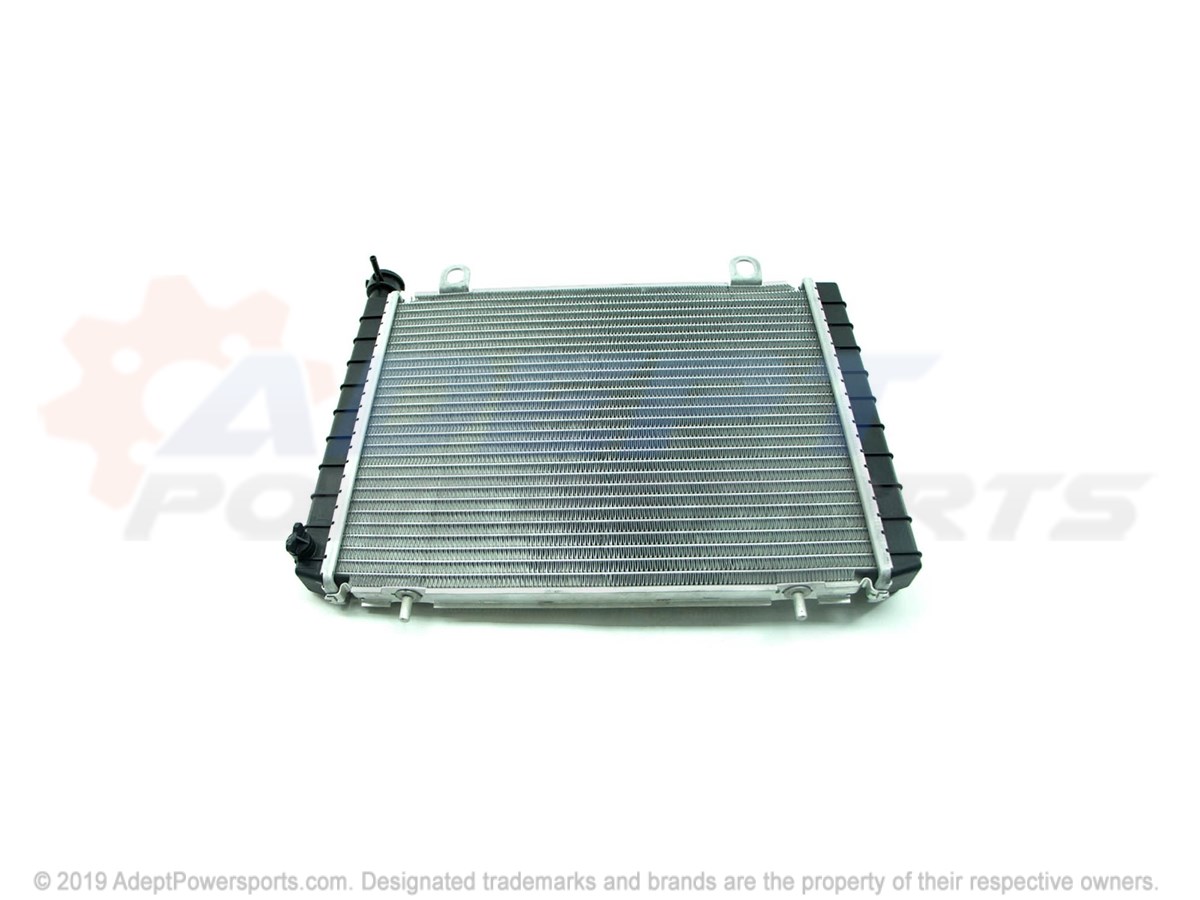

31	ASM-RADIATOR, CORE Part #: 1240772 Required per assembly: 1 Currently Not Available
32	CLAMP, HOSE Part #: 7080474 Required per assembly: 1 Note: Clamp, Hose ~~$9.44~~ $6.81 - + Add to cart
33	SCREW Part #: 7512026 Required per assembly: 3 Note: Screw Currently Not Available
