Dash Instruments And Controls - R15rmaegj/Gc/Ej (49Rgrdash12ev) replacement parts for 2015 Polaris Ranger EV

OEM Parts Polaris 2015 Polaris Ranger EV Dash Instruments And Controls - R15rmaegj/Gc/Ej (49Rgrdash12ev)

Dash Instruments and Controls - R15RMAEGJ/GC/EJ (49RGRDASH12EV) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-KEY SWITCH 48V Part #: 4013084 Required per assembly: 1 Currently Not Available
2	PANEL-INDICATOR EV Part #: 4012693 Required per assembly: 1 Currently Not Available
3	INDICATOR-CHARGE LED Part #: 4013024 Required per assembly: 1 Currently Not Available
4	SWITCH-FNR LIGHTED Part #: 4012982 Required per assembly: 1 Currently Not Available
5	SWITCH-MODE 3 POS Part #: 4012702 Required per assembly: 1 Currently Not Available
6	RECEPTACLE, POD, MOUNT, 12V Part #: 4012393 Required per assembly: 1 Currently Not Available
7	SWITCH, HEADLIGHT Part #: 4011500 Required per assembly: 1 Currently Not Available
8	GAUGE, CHARGE, INDICATOR Part #: 4015096 Required per assembly: 1 Currently Not Available
9	SWITCH-AWD Part #: 4012747 Required per assembly: 1 Currently Not Available
10	SCREW Part #: 7512026 Required per assembly: 3 Note: Screw Currently Not Available

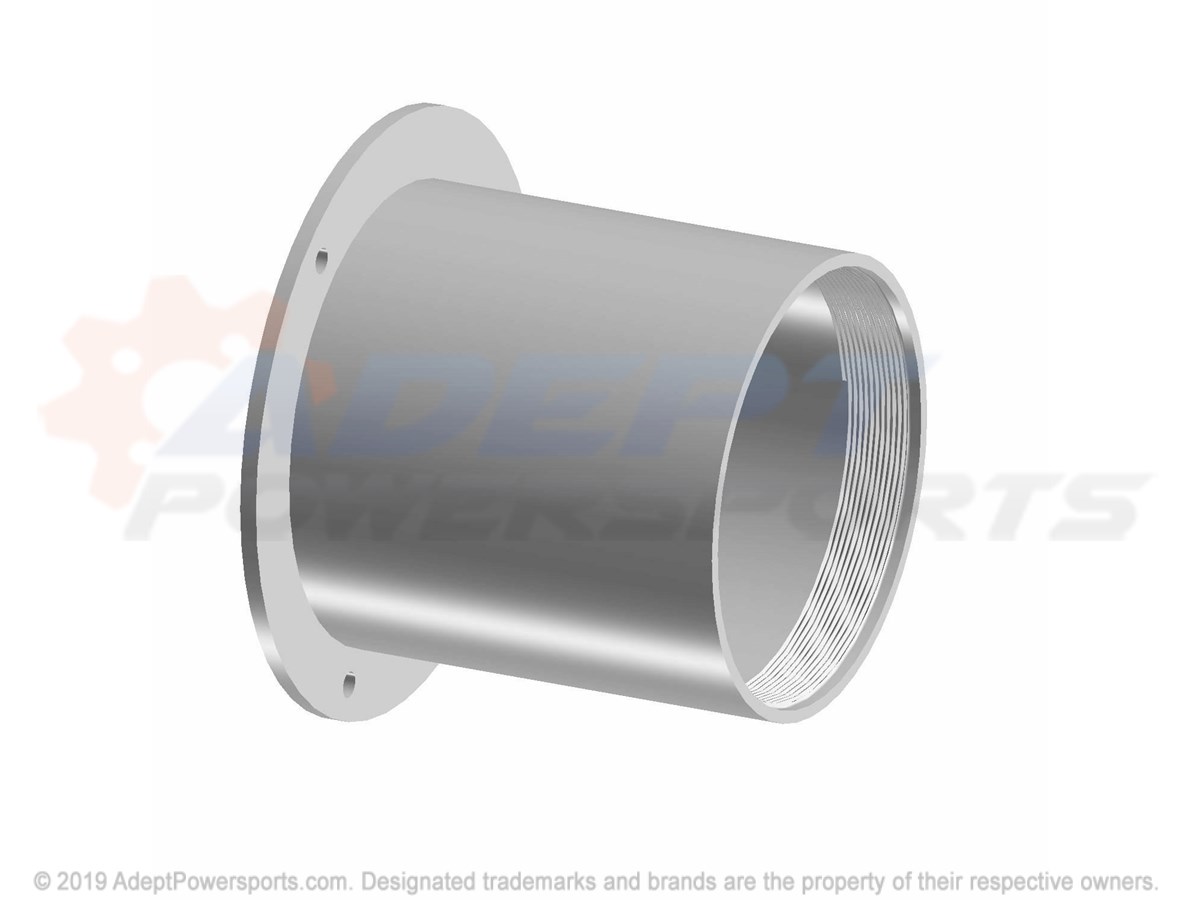

11	COVER, RECEPTACLE, PLUG Part #: 5450017 Required per assembly: 1 Currently Not Available

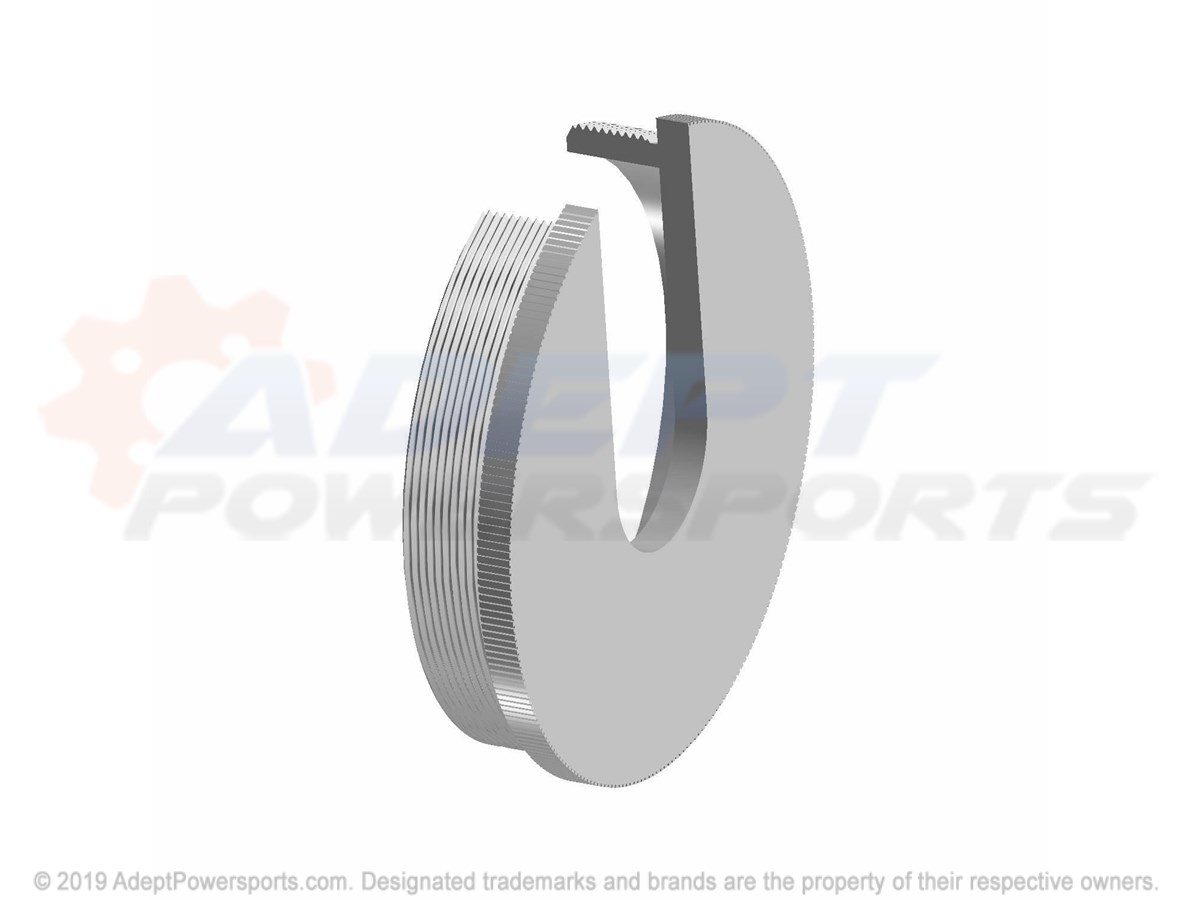

11	END, RECEPTACLE, PLUG Part #: 5450018 Required per assembly: 1 Currently Not Available

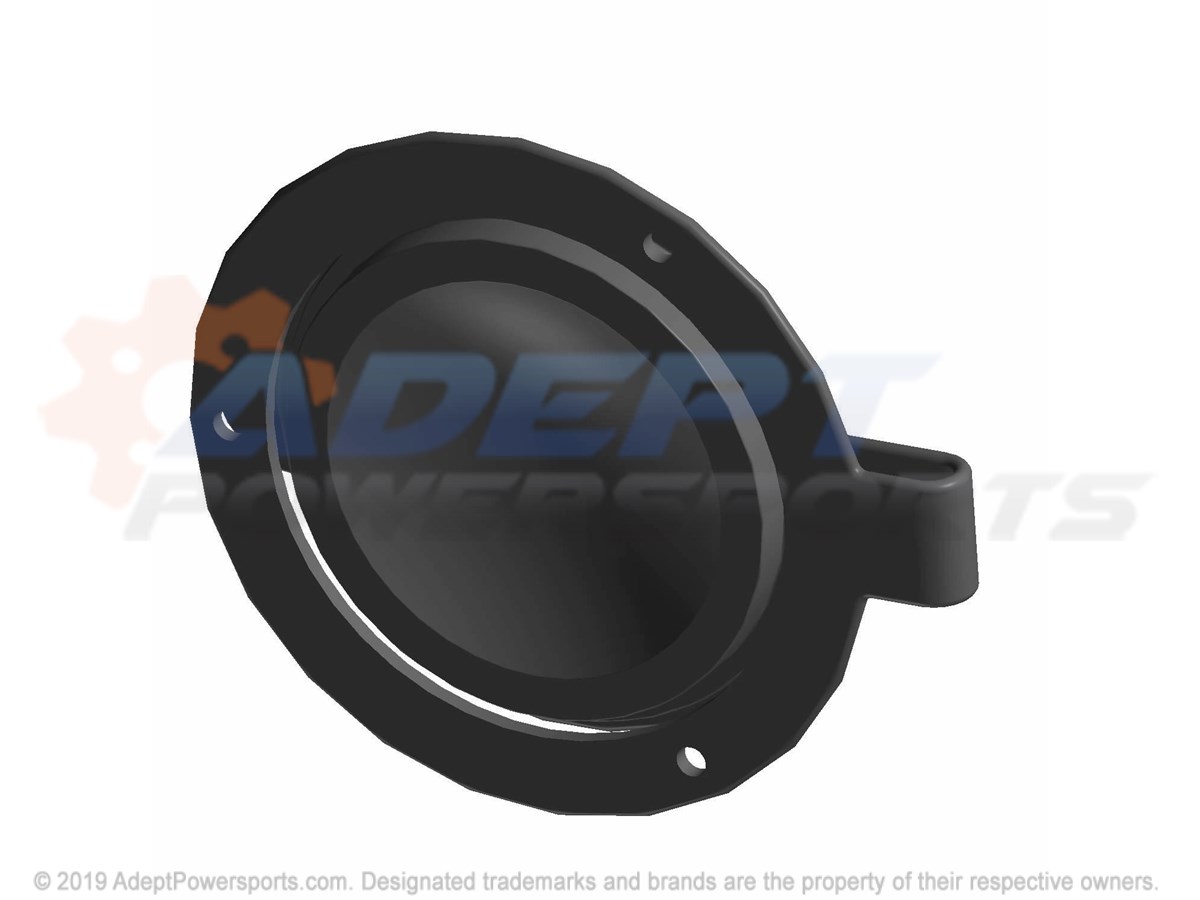

11	RECEPTACLE, PLUG Part #: 5450008 Required per assembly: 1 Note: HOLDS 110V CORD IN PLACE Currently Not Available
12	GROMMET-PARK BRAKE Part #: 5413882 Required per assembly: 1 Currently Not Available
