Primary Clutch - R15rtad1fa (49Rgrclutchdrv15dls) replacement parts for 2015 Polaris Ranger 1000 Diesel EU

OEM Parts Polaris 2015 Polaris Ranger 1000 Diesel EU Primary Clutch - R15rtad1fa (49Rgrclutchdrv15dls)

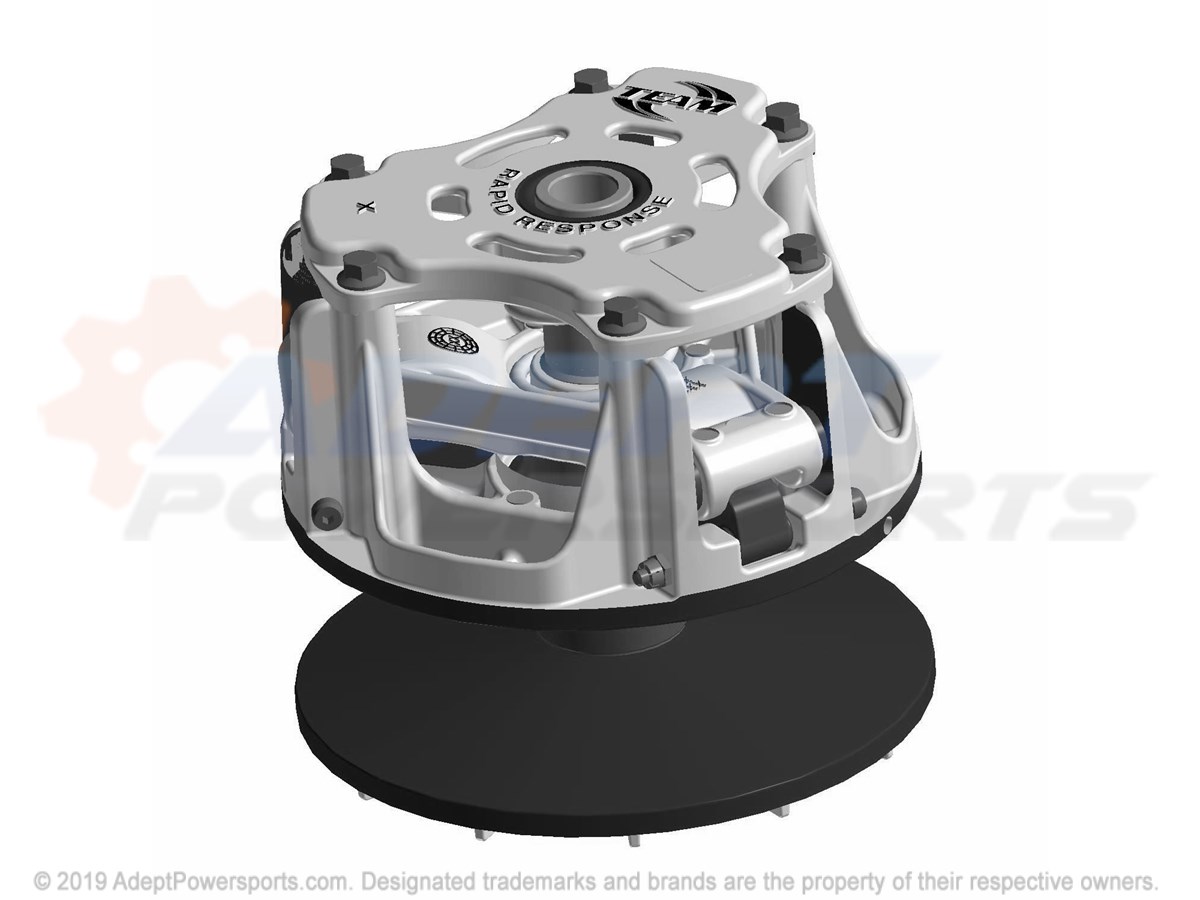

Primary Clutch - R15RTAD1FA (49RGRCLUTCHDRV15DLS) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-DRIVE, CLUTCH, DSL Part #: 1323179 Required per assembly: 1 Note: Incl 2-10 Currently Not Available
1	ASM-DRIVE, CLUTCH, EBS, DSL Part #: 1323225 Required per assembly: 1 Note: INCL. 2-10 Currently Not Available
2	WASHER-THRUST Part #: 7556595 Required per assembly: 3 Currently Not Available
3	SUB, ASSEMBLY, IDLER, SLEEVE, PRIMARY Part #: 1323234 Required per assembly: 1 Currently Not Available
4	CAP, IDLER, SLEEVE Part #: 5259848 Required per assembly: 6 Currently Not Available
5	SCREW Part #: 3235321 Required per assembly: 1 Currently Not Available
6	WEIGHT, CLUTCH, PRIMARY, 153G Part #: 5139249 Required per assembly: 1 Note: AA Currently Not Available
6	WEIGHT-EBS DIESEL 212 GRAM Part #: 5140009 Required per assembly: 1 Note: ED1EA Currently Not Available
7	NUT FLEX LOC Part #: 7541906 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
8	SPRING, COMPRESSION, 82-170 Part #: 7044446 Required per assembly: 1 Note: ED1EA Currently Not Available
8	SPRING-CLUTCH, 75-105 Part #: 7044236 Required per assembly: 1 Note: AA Currently Not Available
9	SCREW Part #: 3235322 Required per assembly: 3 Currently Not Available
10	COLLAR, PRIMARY, SHIFT, STOP Part #: 3235714 Required per assembly: 6 Currently Not Available
11	SCR-M14X1.5X215 HX 10.9 Y35 R Part #: 7518412 Required per assembly: 1 Currently Not Available
12	WASHER Part #: 7556003 Required per assembly: 1 Currently Not Available
13	WASHER, CLUTCH, RETAINER Part #: 5132441 Required per assembly: 1 Currently Not Available
