Exhaust - R15rte87fa (49Rgrexhaust13900xp) replacement parts for 2015 Polaris Ranger 900 XP EU

OEM Parts Polaris 2015 Polaris Ranger 900 XP EU Exhaust - R15rte87fa (49Rgrexhaust13900xp)

Exhaust - R15RTE87FA (49RGREXHAUST13900XP) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, HEADPIPE Part #: 1262292 Required per assembly: 1 Note: INCL. HEADPIPE AND ALL SHIELDS AND CLAMPS Currently Not Available

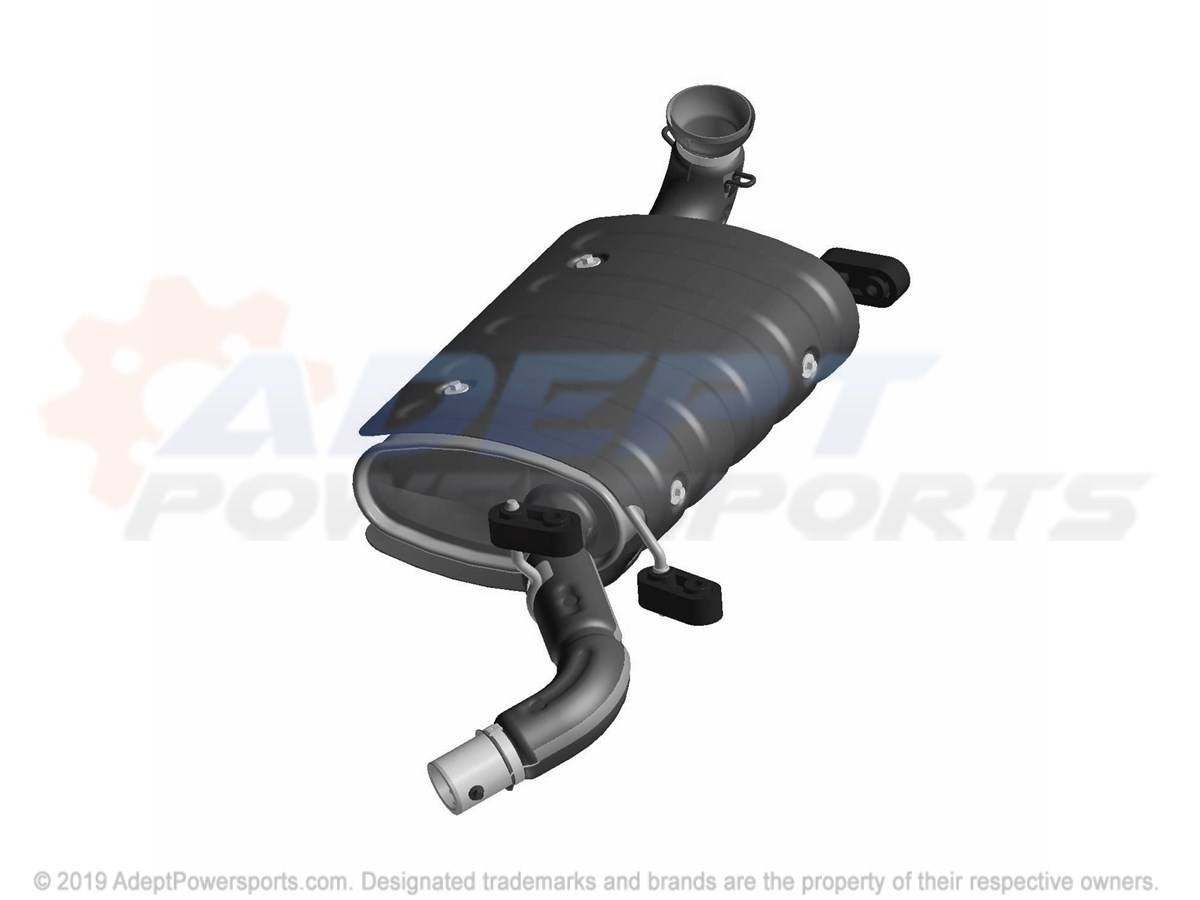

2	ASM-SILENCER, RGR Part #: 1262574 Required per assembly: 1 Note: INCL. 3-5,10-13, ALL SHIELDS AND CLAMPS Currently Not Available
3	WELD-SPARK ARRESTOR AVA875 Part #: 1262123 Required per assembly: 1 Currently Not Available

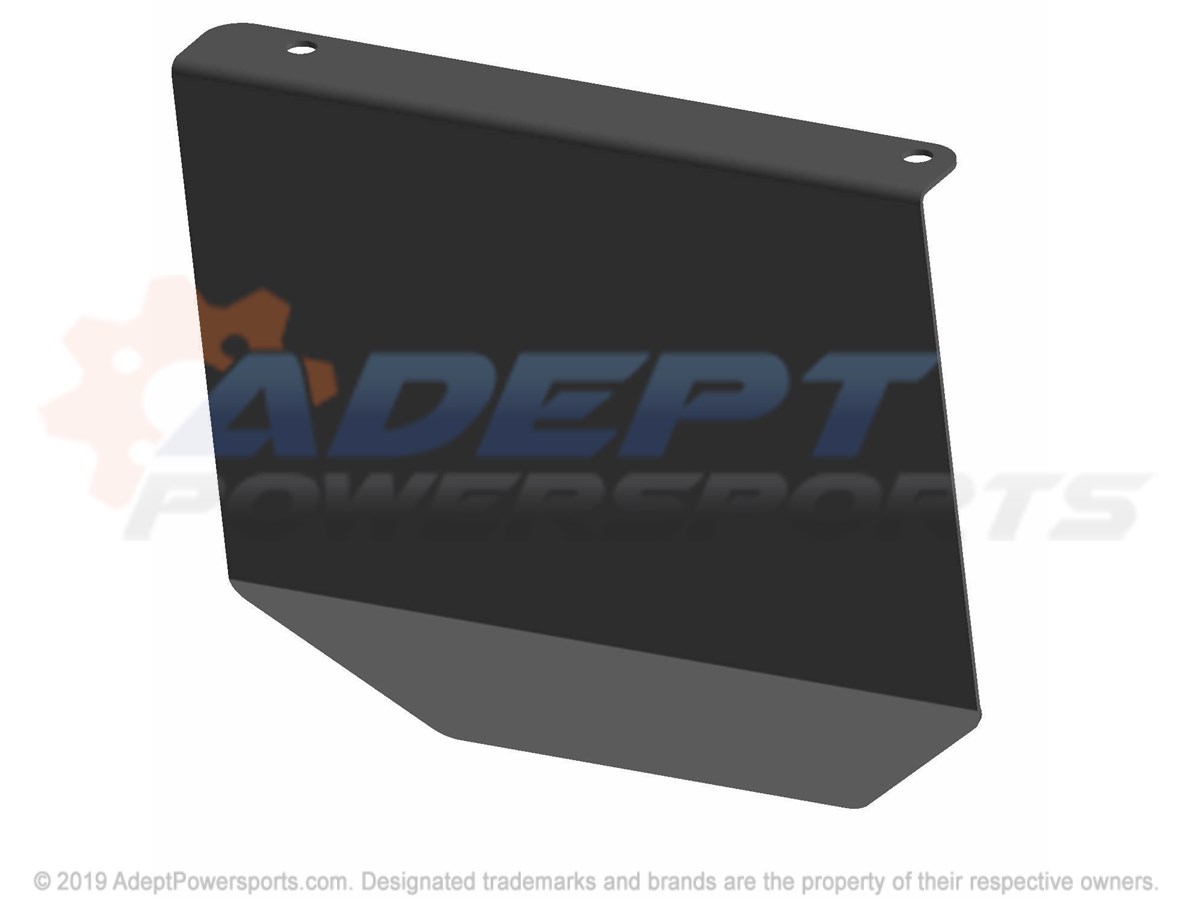

4	SHIELD, SILENCER Part #: 5257719 Required per assembly: 1 Currently Not Available
5	MOUNT-ISOLATOR Part #: 5415027 Required per assembly: 3 Currently Not Available

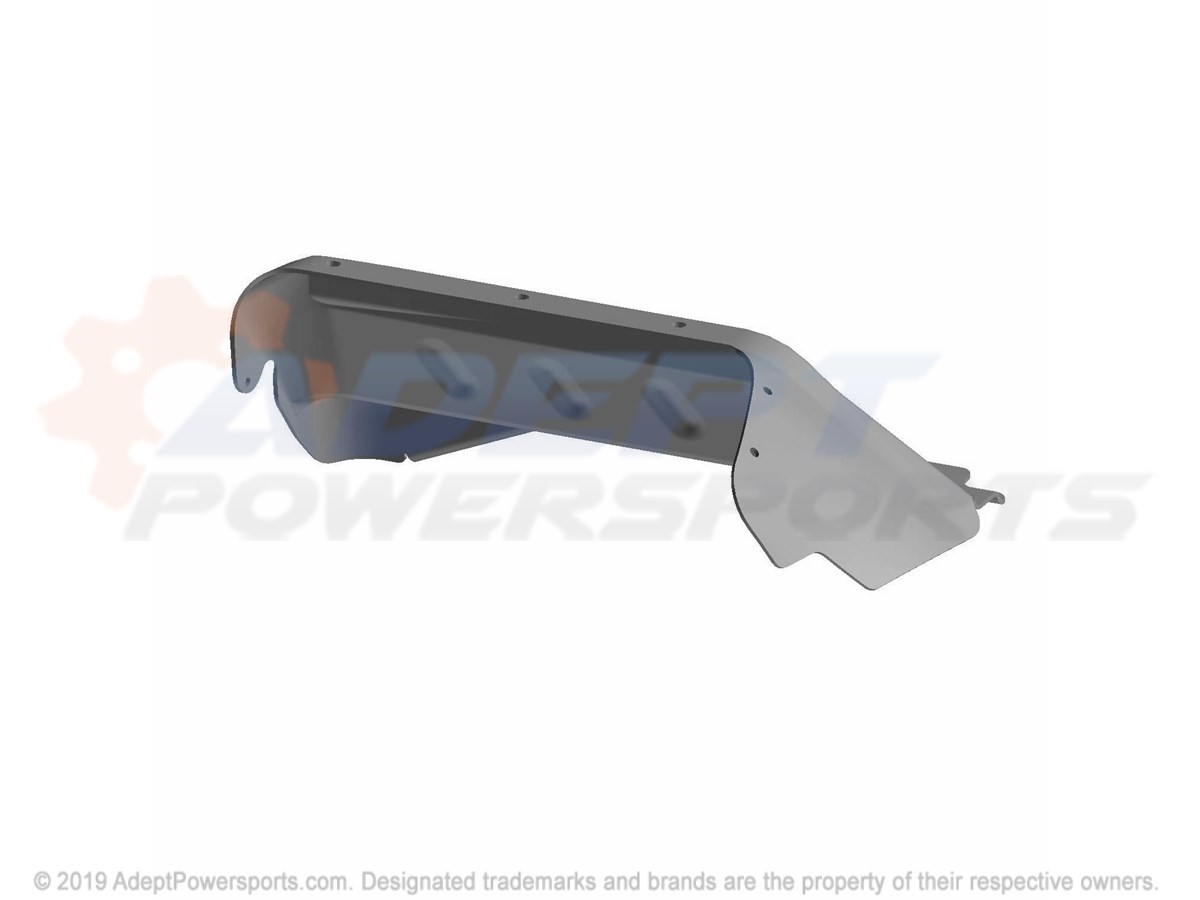

6	SHIELD, HEAT, FOIL, TOP Part #: 5813762 Required per assembly: 1 Currently Not Available
7	SHIELD, HEAT, FOIL, BOTTOM Part #: 5813763 Required per assembly: 1 Currently Not Available
8	GASKET, EXHAUST, SEAL Part #: 3610184 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7518984 Required per assembly: 6 Currently Not Available
10	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518490 Required per assembly: 6 Note: Screw, Flange Currently Not Available
12	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available
13	WASHER Part #: 7555935 Required per assembly: 6 Note: Washer, Flat Currently Not Available
14	SEAL, EXHAUST Part #: 3610204 Required per assembly: 1 Currently Not Available
15	SPRING-EXHAUST Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
16	SCREW (W/O INSERT) Part #: 7512098 Required per assembly: 2 Note: SCREW ~~$2.99~~ $1.73 - + Add to cart
17	SCREW Part #: 7518529 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
18	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
19	BRACKET, BOX, CLOSE, OFF Part #: 5257289 Required per assembly: 1 Currently Not Available
