Exhaust System - R15rua57aa/E57ac (49Rgrexhaust15570f) replacement parts for 2015 Polaris Ranger 570 EFI FULL SIZE Crew

OEM Parts Polaris 2015 Polaris Ranger 570 EFI FULL SIZE Crew Exhaust System - R15rua57aa/E57ac (49Rgrexhaust15570f)

Exhaust System - R15RUA57AA/E57AC (49RGREXHAUST15570F) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

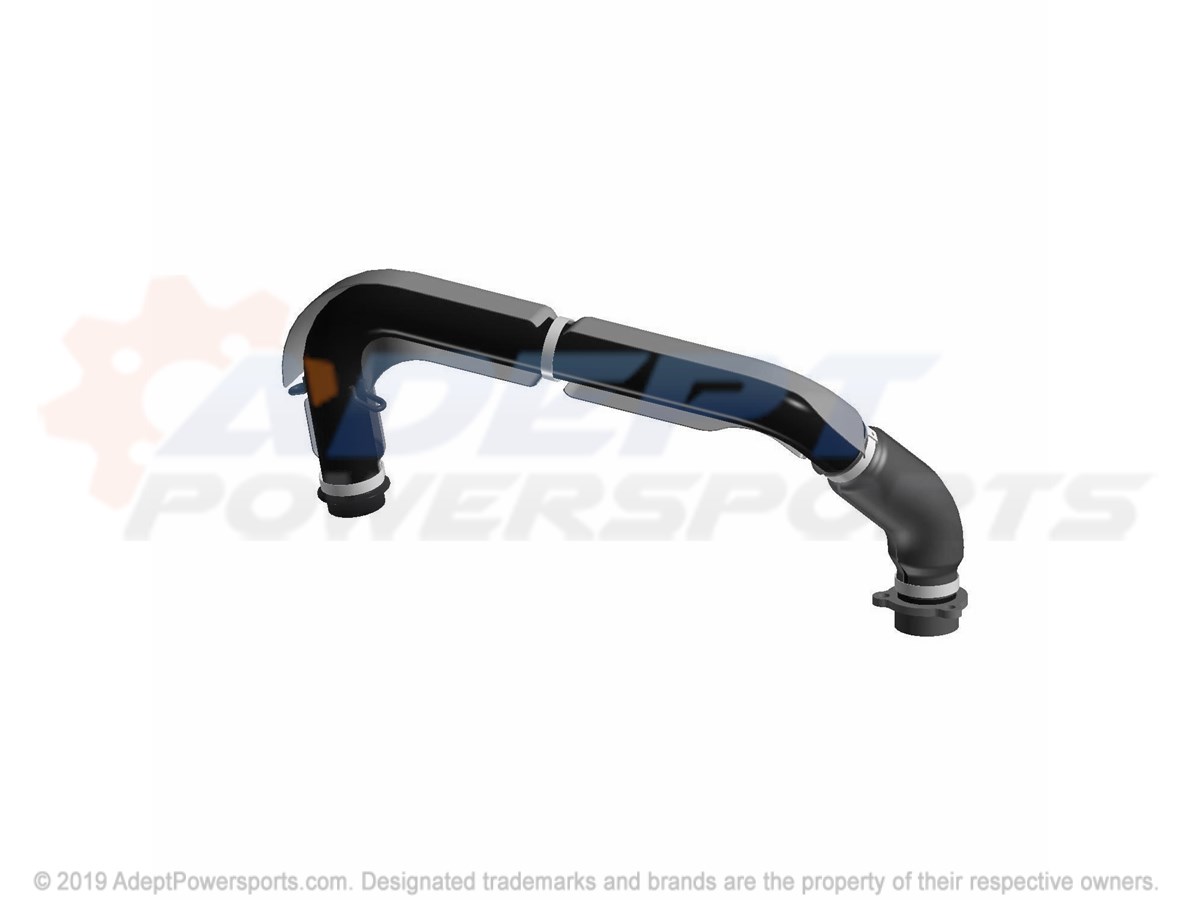

1	ASM-HEADPIPE Part #: 1262579 Required per assembly: 1 Currently Not Available
2	GASKET-EXHAUST SEALING Part #: 5253989 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7518984 Required per assembly: 3 Currently Not Available

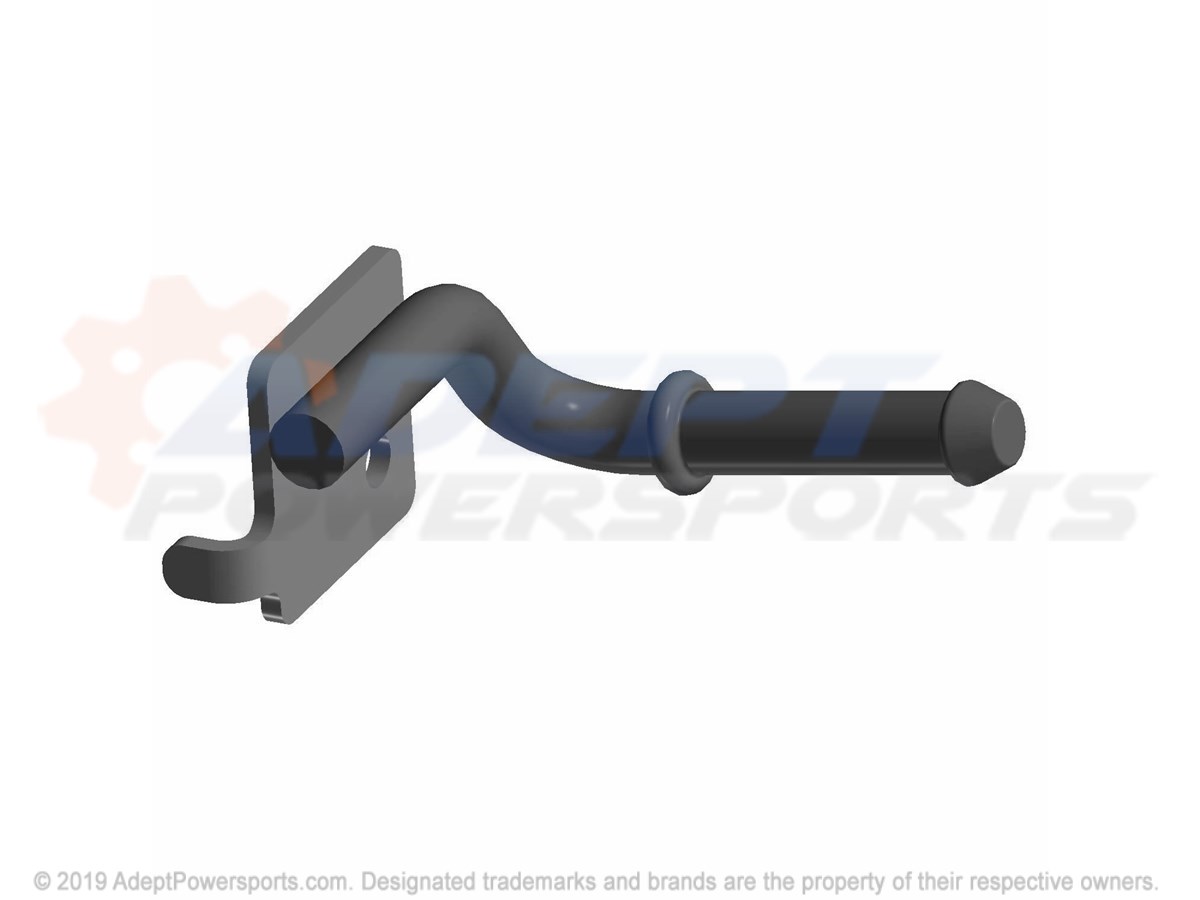

4	WELD-EXHAUST, HANGER, FRAME, BLK Part #: 1020778-329 Required per assembly: 1 Currently Not Available

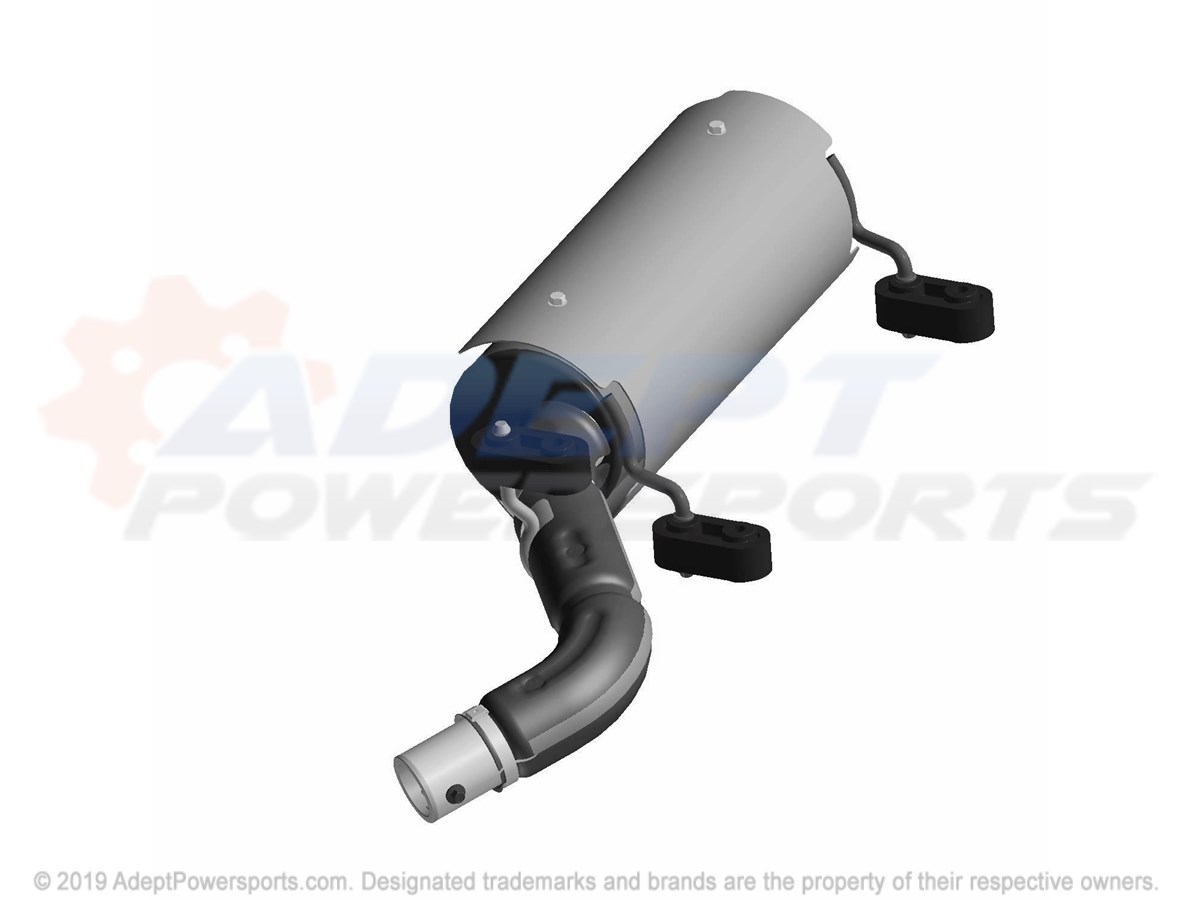

5	ASM-SILENCER Part #: 1262580 Required per assembly: 1 Note: INCL. 6-11 Currently Not Available
6	WELD-SPARK ARRESTOR AVA875 Part #: 1262123 Required per assembly: 1 Currently Not Available

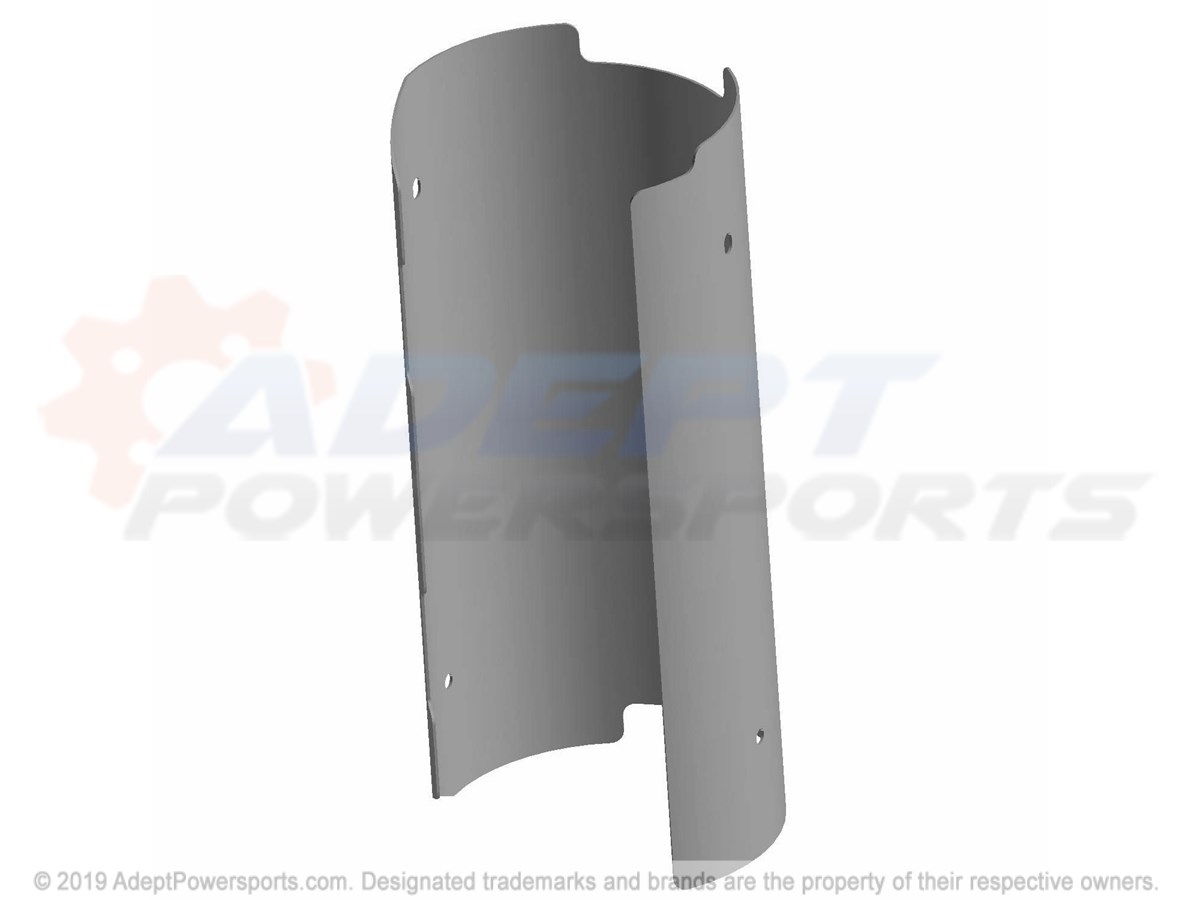

7	SHIELD-SILENCER Part #: 5259626 Required per assembly: 1 Currently Not Available
8	MOUNT-ISOLATOR Part #: 5415027 Required per assembly: 3 Currently Not Available
9	SCREW Part #: 7515197 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
10	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
11	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available
12	SEAL-EXHAUST SOCKET Part #: 3610181 Required per assembly: 1 Currently Not Available
13	SPRING-EXHAUST Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
14	SHIELD, HEAT, FOIL, TOP Part #: 5813762 Required per assembly: 1 Currently Not Available
15	SHIELD, HEAT, FOIL, BOTTOM Part #: 5813763 Required per assembly: 1 Currently Not Available
16	SCREW (W/O INSERT) Part #: 7512098 Required per assembly: 2 Note: SCREW ~~$2.99~~ $1.73 - + Add to cart
17	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
18	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
