Rear Control Arms - Z15VA87 All Options (49RGRSUSPRR15Z90050) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

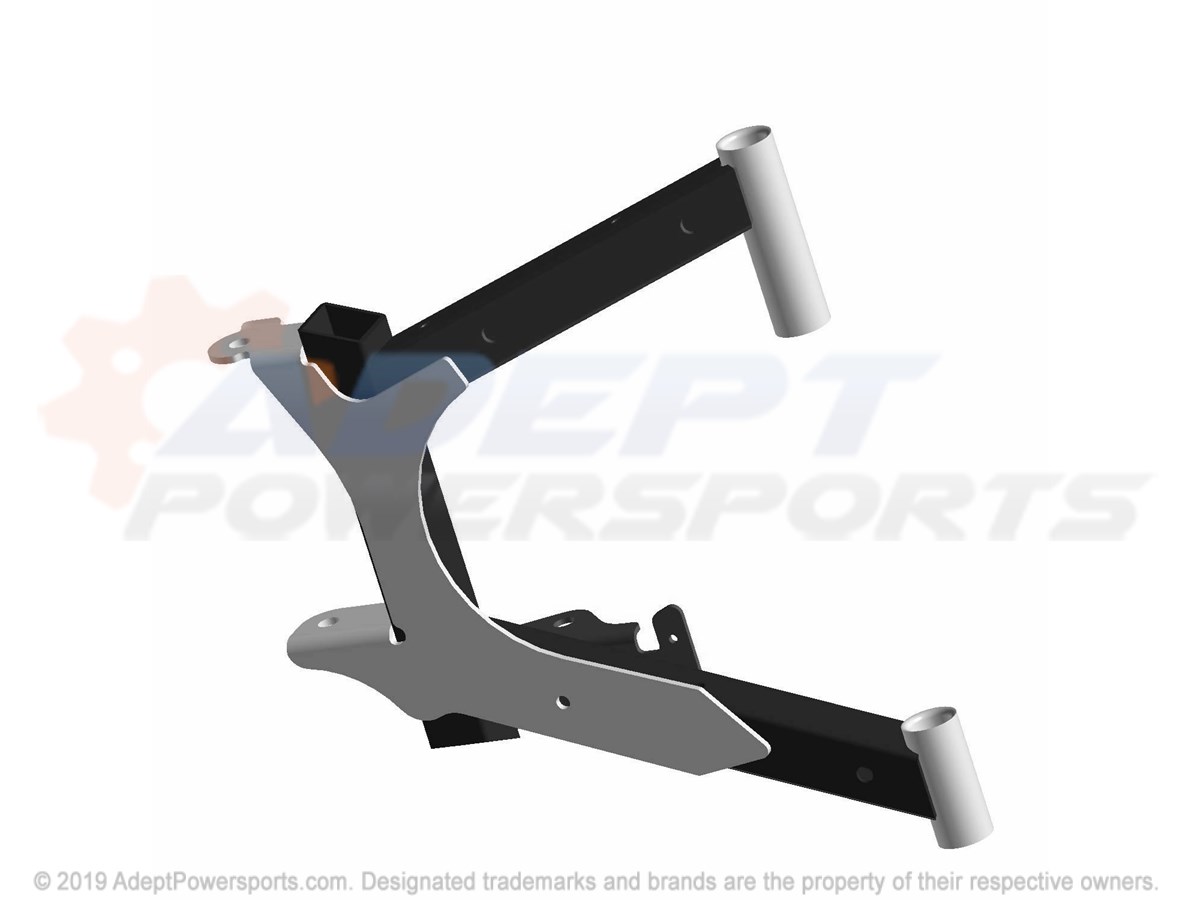

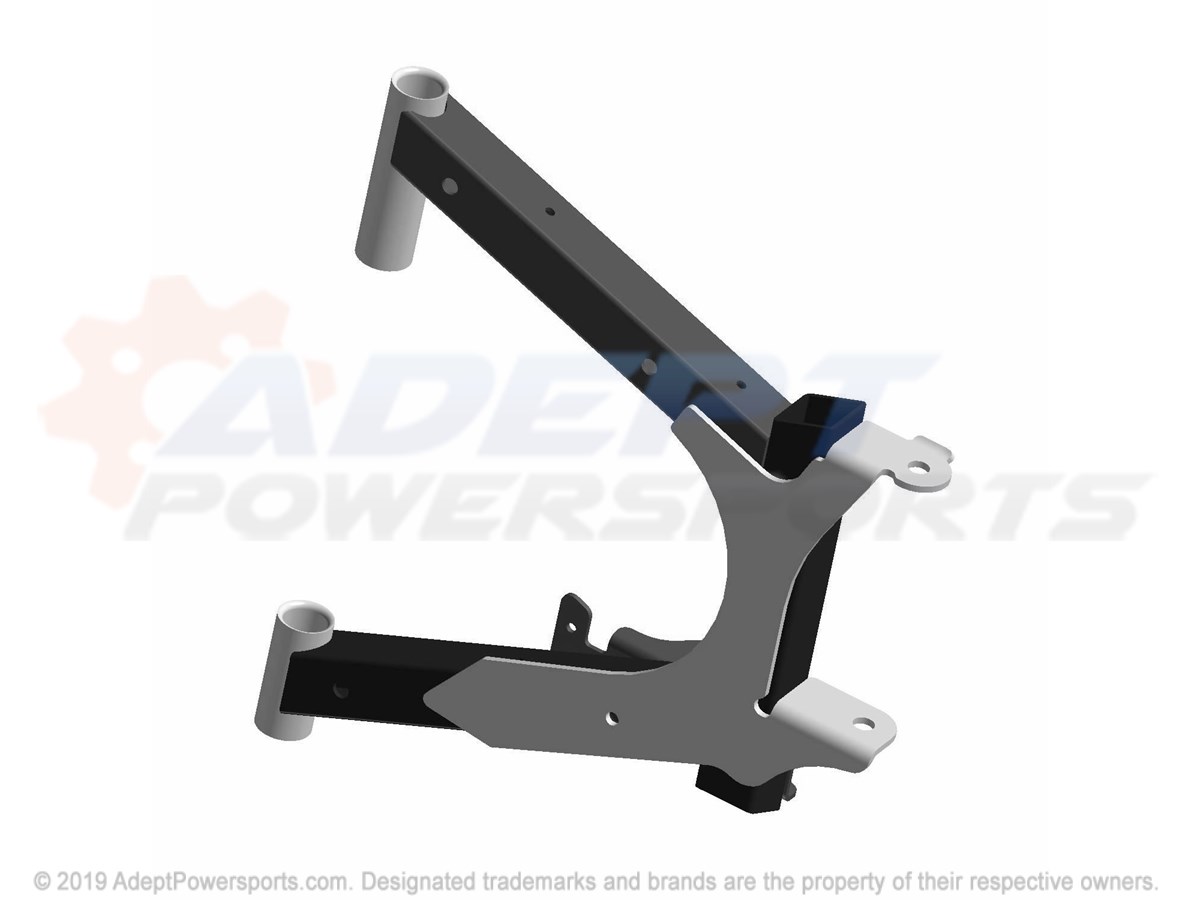

1	WELD-CTRL, ARM, LWR, RR, RH, SLV Part #: 1019948-385 Required per assembly: 1 Note: AK Currently Not Available
1	WELD-CTRL, ARM, LWR, RR, RH, BLK Part #: 1019948-458 Required per assembly: 1 Note: AC Currently Not Available
1	WELD-CTRL, ARM, LWR, RR, LH, SLV Part #: 1019947-385 Required per assembly: 1 Note: AK Currently Not Available
1	WELD-CTRL, ARM, LWR, RR, LH, BLK Part #: 1019947-458 Required per assembly: 1 Note: AC Currently Not Available
2	SHAFT, PIVOT Part #: 5138797 Required per assembly: 2 Currently Not Available
3	SHAFT-PIVOT, 107.26MM, 15.88OD Part #: 5138798 Required per assembly: 4 Currently Not Available
4	BUSHING Part #: 5439874 Required per assembly: 20 Currently Not Available
5	SCREW Part #: 7519043 Required per assembly: 2 Note: Bolt Currently Not Available
6	SCR-HH-M10X1.25X140, 10.9, ZOD Part #: 7519897 Required per assembly: 4 Currently Not Available
7	NUT, FLANGE Part #: 7547333 Required per assembly: 10 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
8	WASHER, FLAT Part #: 7556153 Required per assembly: 16 Note: Washer ~~$3.99~~ $2.30 - + Add to cart

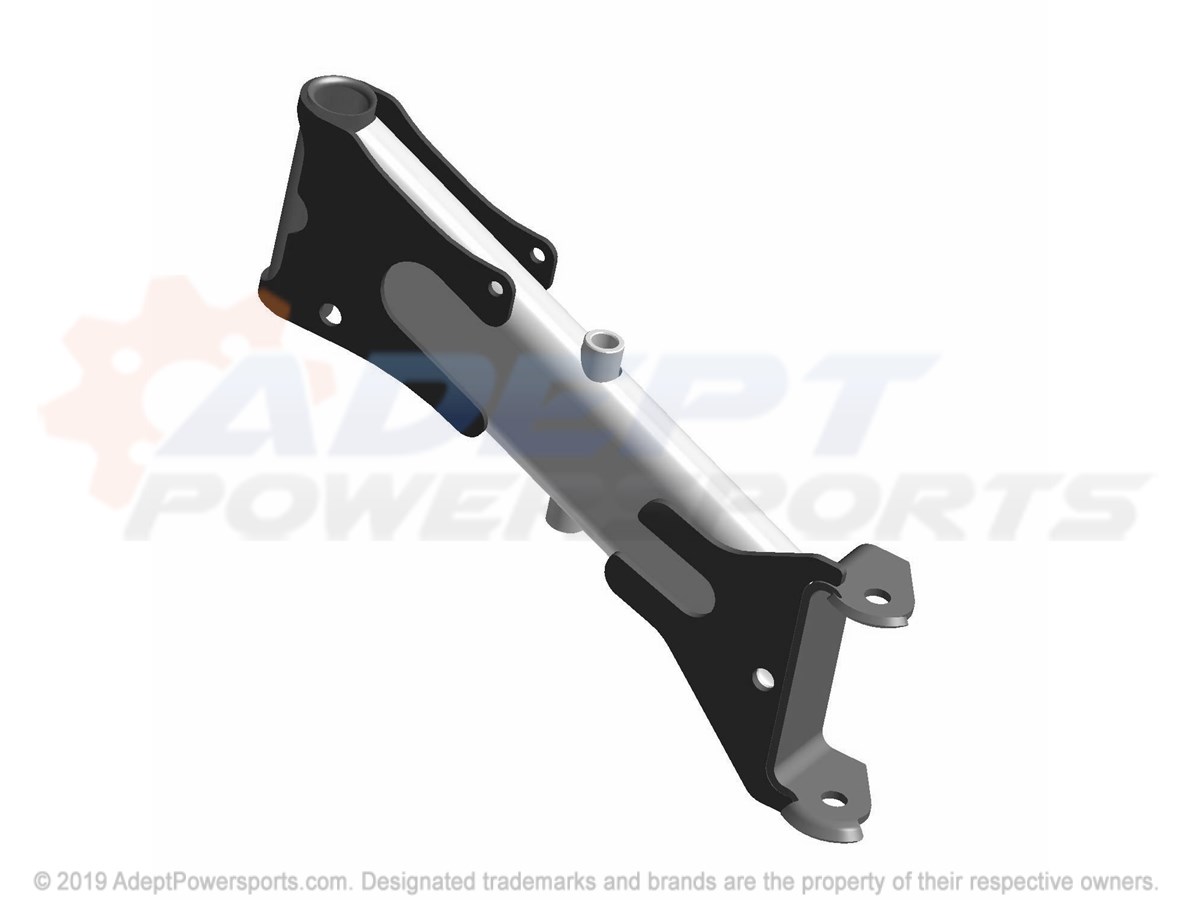

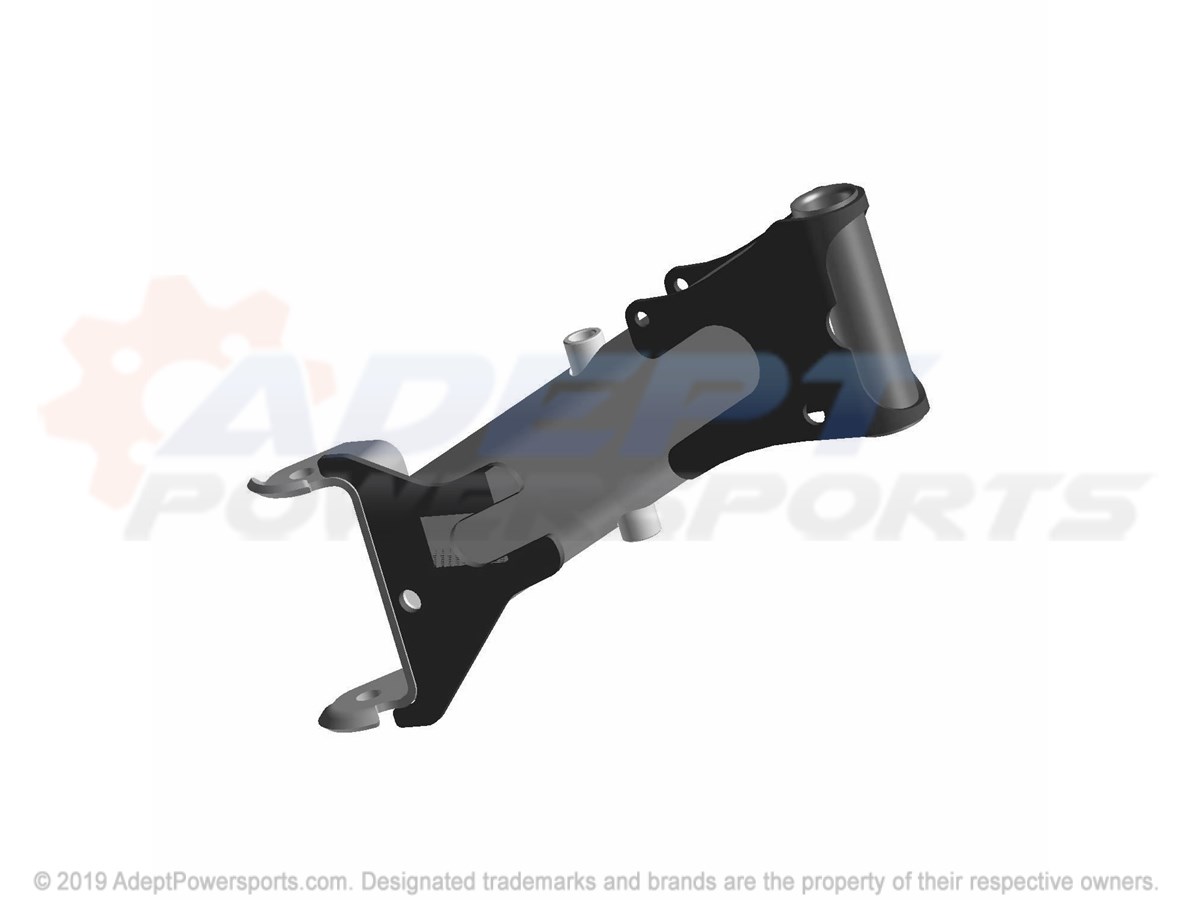

9	WELD-CTRL, ARM, UPPER, RR, LH, SLV Part #: 1019945-385 Required per assembly: 1 Note: AK Currently Not Available
9	WELD-CTRL, ARM, UPPER, RR, RH, SLV Part #: 1019946-385 Required per assembly: 1 Note: AK Currently Not Available
9	WELD-CTRL, ARM, UPPER, RR, RH, BLK Part #: 1019946-458 Required per assembly: 1 Note: AC Currently Not Available
9	WELD-CTRL, ARM, UPPER, RR, LH, BLK Part #: 1019945-458 Required per assembly: 1 Note: AC Currently Not Available
10	SCREW Part #: 7519365 Required per assembly: 2 Currently Not Available
11	SHAFT, PIVOT Part #: 5138794 Required per assembly: 2 Currently Not Available
12	SHAFT-PIVOT, 107.26MM, 15.88OD Part #: 5138798 Required per assembly: 2 Currently Not Available
13	CARRIER-BEARING, WHEEL, RH Part #: 5143079 Required per assembly: 1 Currently Not Available
13	CARRIER-BEARING, WHEEL, LH Part #: 5143078 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7519042 Required per assembly: 2 Currently Not Available
15	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 8 Note: FITTING, ZERK (90o) Currently Not Available
16	BUSHING, PIVOT Part #: 5136102 Required per assembly: 4 Currently Not Available
17	FITTING, LUBE. Part #: 7080438 Required per assembly: 2 Currently Not Available
17	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 2 Note: AI Currently Not Available
18	GUARD-SHOCK, ROD, BLK Part #: 5451898-070 Required per assembly: 2 Currently Not Available
19	RIVET, BLIND Part #: 7621467 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
