Rear Control Arms - Z15vbe87fk/Jk (700053) replacement parts for 2015 Polaris Z15VBE87FK/JK RZR 900 60 Inch PS INTL

OEM Parts Polaris 2015 Polaris Z15VBE87FK/JK RZR 900 60 Inch PS INTL Rear Control Arms - Z15vbe87fk/Jk (700053)

Rear Control Arms - Z15VBE87FK/JK (700053) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

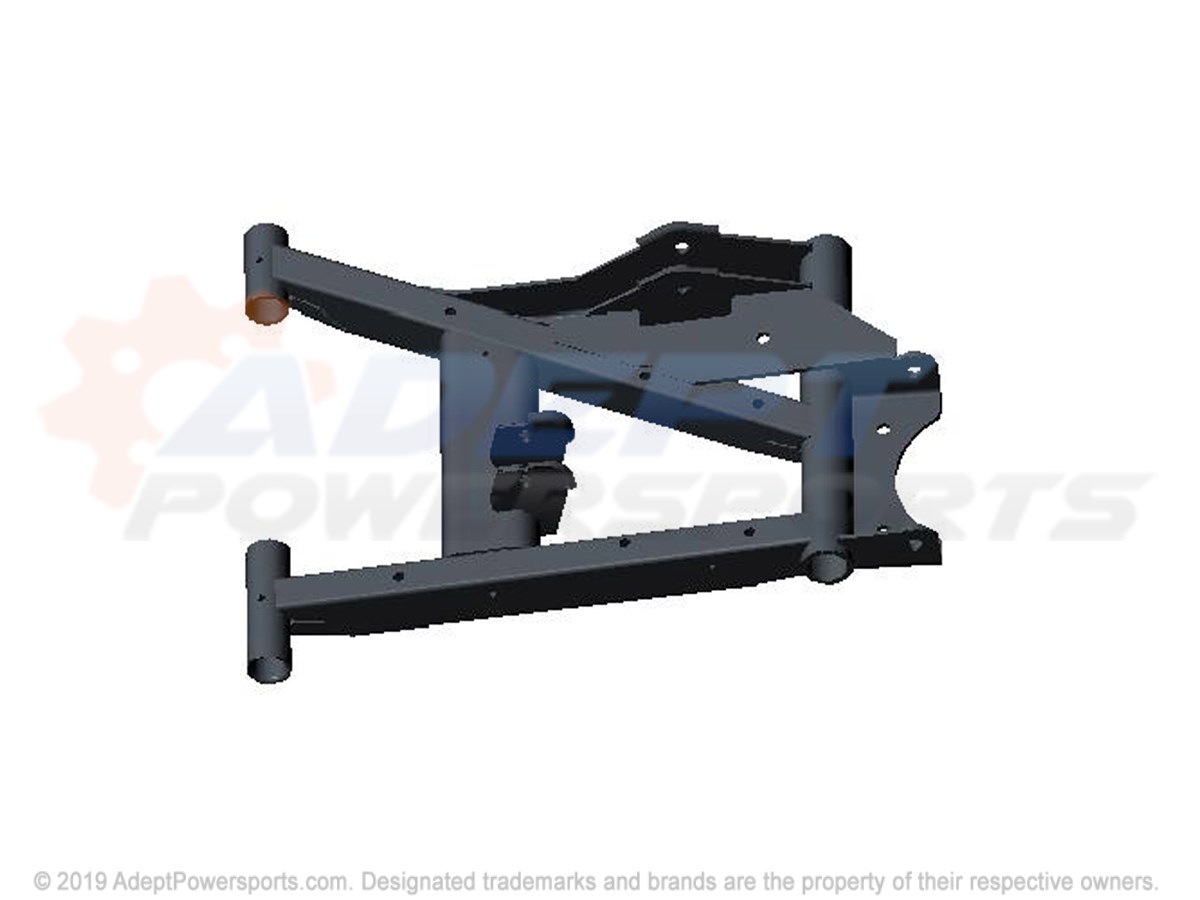

1	WELD-A-ARM, REAR, LWR, LH, 60, BLK Part #: 1018822-458 Required per assembly: 1 Currently Not Available
1	WELD-A-ARM, REAR, LWR, RH, 60, BLK Part #: 1018823-458 Required per assembly: 1 Currently Not Available
2	SHAFT, PIVOT Part #: 5138797 Required per assembly: 2 Currently Not Available
3	SHAFT-PIVOT, 107.26MM, 15.88OD Part #: 5138798 Required per assembly: 4 Currently Not Available
4	BUSHING Part #: 5439874 Required per assembly: 20 Currently Not Available
5	SCREW Part #: 7519043 Required per assembly: 2 Note: Bolt Currently Not Available
6	SCR-HH-M10X1.25X140, 10.9, ZOD Part #: 7519897 Required per assembly: 4 Currently Not Available
7	NUT, FLANGE Part #: 7547333 Required per assembly: 10 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
8	WASHER, FLAT Part #: 7556153 Required per assembly: 14 Note: Washer ~~$3.99~~ $2.30 - + Add to cart

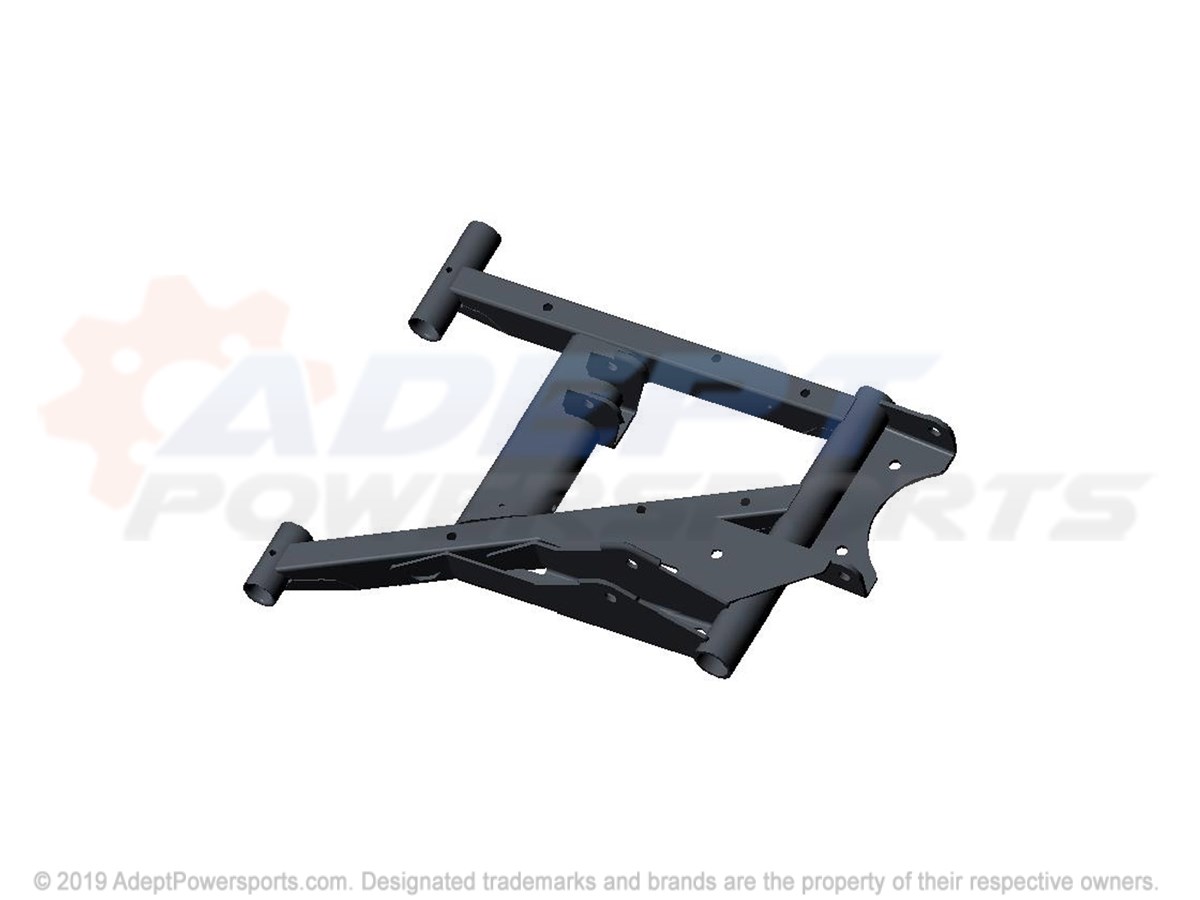

9	WELD-A-ARM, REAR, UPR, RH, 60, BLK Part #: 1018821-458 Required per assembly: 1 Currently Not Available
9	WELD-A-ARM, REAR, UPR, LH, 60, BLK Part #: 1018820-458 Required per assembly: 1 Currently Not Available
10	RIVET, BLIND Part #: 7621467 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
11	SHAFT, PIVOT Part #: 5138794 Required per assembly: 2 Currently Not Available
12	SHAFT-PIVOT, 107.26MM, 15.88OD Part #: 5138798 Required per assembly: 2 Currently Not Available
13	CARRIER-BEARING, WHEEL, RH Part #: 5143079 Required per assembly: 1 Currently Not Available
13	CARRIER-BEARING, WHEEL, LH Part #: 5143078 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7519042 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 7519365 Required per assembly: 2 Currently Not Available
16	SHIELD-CV, REAR, BLK Part #: 5451336-070 Required per assembly: 2 Currently Not Available
17	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 10 Note: FITTING, ZERK (90o) Currently Not Available
18	BUSHING, PIVOT Part #: 5136102 Required per assembly: 4 Currently Not Available
