Main Gearcase Internals - Z15vfe99at/Av/Ap (49Rgrgearcase1510004) replacement parts for 2015 Polaris RZR XP 4 1000

OEM Parts Polaris 2015 Polaris RZR XP 4 1000 Main Gearcase Internals - Z15vfe99at/Av/Ap (49Rgrgearcase1510004)

Main Gearcase Internals - Z15VFE99AT/AV/AP (49RGRGEARCASE1510004) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	O-RING Part #: 3234302 Required per assembly: 1 Currently Not Available
-	PIN, DOWEL Part #: 3234330 Required per assembly: 2 ~~$6.99~~ $4.03 - + Add to cart

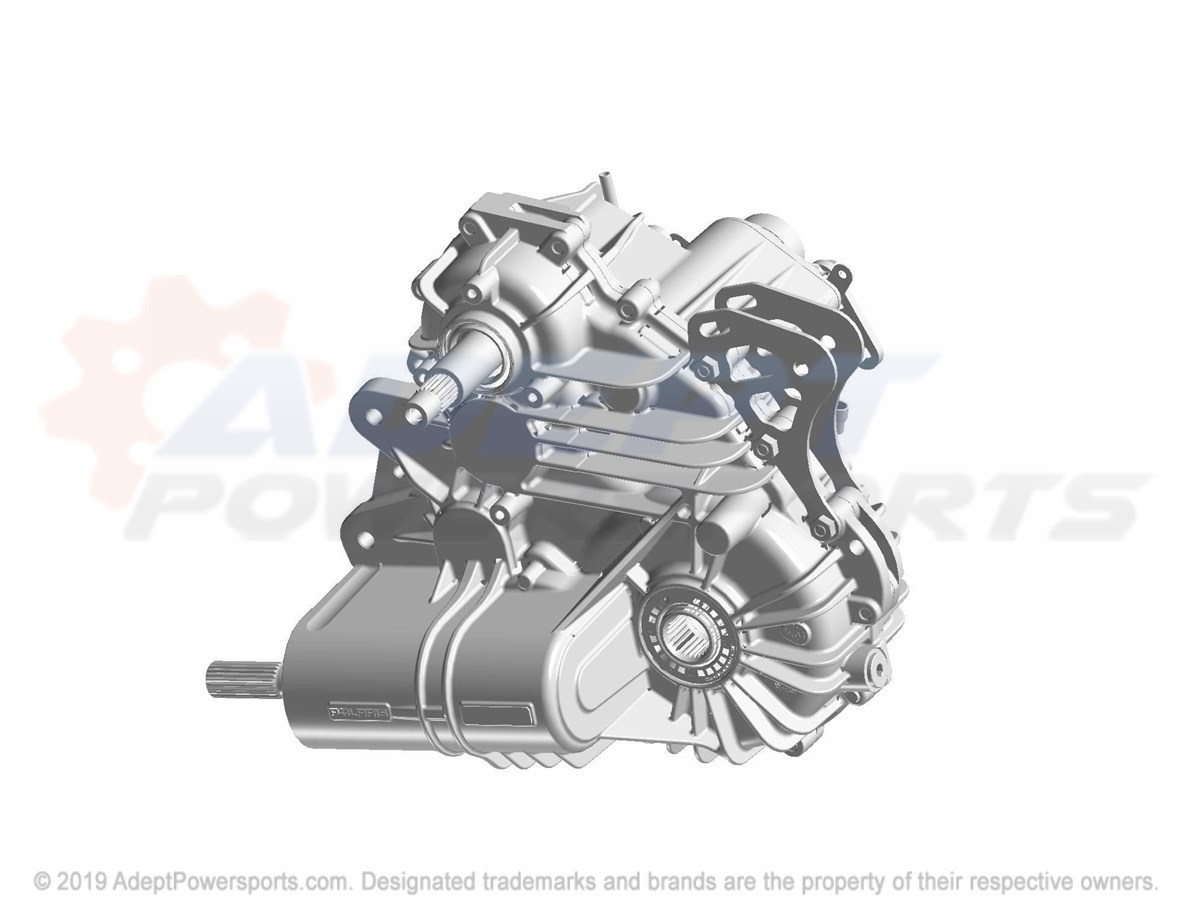

-	ASM-GEARCASE, COMPLETE Part #: 1333363 Required per assembly: 1 Currently Not Available
1	PLUG, SOCKET, HEAD Part #: 3234755 Required per assembly: 1 Note: Plug Currently Not Available
2	PLUG, SOCKET, HEAD, W/MAGNET Part #: 3234756 Required per assembly: 1 Note: Plug, Socket Head Currently Not Available
3	SCREW, HEX, FLANGE, HEAD, M8, X, 1.25, X, 30 Part #: 3234898 Required per assembly: 14 Note: Screw ~~$9.99~~ $5.75 - + Add to cart
4	SCREW Part #: 3235206 Required per assembly: 6 Currently Not Available
5	SCREW Part #: 3235207 Required per assembly: 3 Currently Not Available
6	SCR-M6X1.0X40 SOC/CAP(105344) Part #: 3235208 Required per assembly: 1 Currently Not Available
7	SCR-SCKT HD CP M6X1X18(105355) Part #: 3235332 Required per assembly: 6 Currently Not Available
8	NUT, LOCK, HEX, FLANGE, NYLON Part #: 3235210 Required per assembly: 1 Currently Not Available
9	WASHER Part #: 3234091 Required per assembly: 2 Note: Washer, Cup Currently Not Available
10	WASHER Part #: 3235211 Required per assembly: 3 Currently Not Available
11	WASHER Part #: 3235212 Required per assembly: 1 Currently Not Available
12	WASHER Part #: 3235213 Required per assembly: 1 ~~$24.99~~ $14.38 - + Add to cart
14	SPRING-SLOTTED PIN 6MM Part #: 7043746 Required per assembly: 1 Currently Not Available
15	RING, SNAP Part #: 3233106 Required per assembly: 1 Currently Not Available
16	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
17	RING, RETAINING Part #: 3233364 Required per assembly: 1 Currently Not Available
18	RING, RETAINING Part #: 3234318 Required per assembly: 1 ~~$4.99~~ $2.88 - + Add to cart
19	RING, RETAINING Part #: 3234269 Required per assembly: 1 Currently Not Available
20	RING, RETAINING Part #: 3234090 Required per assembly: 2 Currently Not Available
21	RING, RETAINING, [1322419] Part #: 3234205 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
22	RING RETAINING EXTERNAL Part #: 3235214 Required per assembly: 3 Currently Not Available
23	RING RETAINING Part #: 3235216 Required per assembly: 1 Currently Not Available
24	WASHER, THRUST Part #: 3233378 Required per assembly: 2 Currently Not Available
25	WASHER THRUST .446X.88X.025 Part #: 3234642 Required per assembly: 1 Currently Not Available
26	SHIM Part #: 3234272 Required per assembly: 1 Currently Not Available
27	SHIM Part #: 3234273 Required per assembly: 1 Currently Not Available
28	BEARING, NEEDLE Part #: 3233014 Required per assembly: 2 Currently Not Available
29	BEARING Part #: 3233019 Required per assembly: 2 Currently Not Available
30	BEARING Part #: 3233020 Required per assembly: 1 Currently Not Available
31	BEARING, BALL Part #: 3233268 Required per assembly: 2 Currently Not Available
32	BEARING, BALL Part #: 3234065 Required per assembly: 3 Currently Not Available
33	BEARING NEEDLE Part #: 3233384 Required per assembly: 1 Currently Not Available
34	BEARING BALL Part #: 3235218 Required per assembly: 1 Currently Not Available
35	BEARING, BALL Part #: 3234652 Required per assembly: 2 Currently Not Available
36	BEARING, BALL Part #: 3235496 Required per assembly: 1 Currently Not Available
37	SPRING, TORSION Part #: 3233820 Required per assembly: 1 Currently Not Available
38	SPRING, COMPRESSION Part #: 3234078 Required per assembly: 2 Currently Not Available
39	SPRING, COMPRESSION Part #: 3234089 Required per assembly: 2 ~~$24.99~~ $14.65 - + Add to cart
40	SPRING WASHER Part #: 3235327 Required per assembly: 1 Currently Not Available
41	TUBE, SNORKEL Part #: 3234278 Required per assembly: 1 Currently Not Available
42	COVER W/PINS Part #: 3234188 Required per assembly: 1 Note: For gasket use p/n 3234123 Currently Not Available
43	DRUM, SHIFT Part #: 3235463 Required per assembly: 1 Currently Not Available
44	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
45	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available
46	PLATE, PARK Part #: 3235456 Required per assembly: 1 Currently Not Available
47	DETENT STAR Part #: 3235603 Required per assembly: 1 Currently Not Available
48	SHAFT IDLER 29T Part #: 3235223 Required per assembly: 1 Currently Not Available
49	SHAFT, REVERSE, 27T Part #: 3235380 Required per assembly: 1 Currently Not Available
50	SHAFT, FRONT, OUTPUT Part #: 3235394 Required per assembly: 1 Currently Not Available
51	SHAFT, INPUT, SLEEVED Part #: 3235492 Required per assembly: 1 Currently Not Available
52	BELLCRANK Part #: 3235227 Required per assembly: 1 Currently Not Available
53	COLLAR, SHIFT Part #: 3234073 Required per assembly: 1 Currently Not Available
54	TUBE, VENT, (1332366) Part #: 3234230 Required per assembly: 1 Note: Tube, Vent [4x4] Currently Not Available
55	SPROCKET-48T 6-FACE (352854) Part #: 3235231 Required per assembly: 1 Currently Not Available
56	GEAR, LOW, 67T Part #: 3235232 Required per assembly: 1 Currently Not Available
57	DOG ENGAGEMENT 6-FACE Part #: 3235233 Required per assembly: 1 Currently Not Available
58	GEAR 53T Part #: 3235234 Required per assembly: 1 Currently Not Available
59	GEAR 46T STAGE 3 Part #: 3235236 Required per assembly: 1 Currently Not Available
60	GEAR-13T FRONT OUTPUT (352957) Part #: 3235237 Required per assembly: 1 Currently Not Available
61	SHAFT SHIFT Part #: 3235238 Required per assembly: 1 Currently Not Available
62	GEAR, 46T, STAGE, 2 Part #: 3235381 Required per assembly: 1 Currently Not Available
63	SHIFT, DOG, PARK/LOW Part #: 3235457 Required per assembly: 1 Currently Not Available
64	RAIL, SHIFT, SHAFT Part #: 3235542 Required per assembly: 1 Currently Not Available
65	BRACKET, REAR, MOUNT Part #: 3235558 Required per assembly: 1 Currently Not Available
66	ASM-SUB OUTPUT GEAR(411753) Part #: 3235335 Required per assembly: 1 Note: INCL. BEARINGS Currently Not Available
67	ASM-SUB PINION SHAFT(411759) Part #: 3235336 Required per assembly: 1 Note: INCL. BEARING, RETAINING RING Currently Not Available
68	FORK, SHIFT Part #: 3235454 Required per assembly: 2 Currently Not Available
69	PAWL, ROLLER Part #: 3235452 Required per assembly: 1 Currently Not Available
70	SUBASM., RH, CASE Part #: 3235515 Required per assembly: 1 Note: INCL. ALL HARDWARE Currently Not Available
71	SUBASM., LH, CASE Part #: 3235514 Required per assembly: 1 Note: INCL. ALL HARDWARE Currently Not Available
72	COVER BEARING CENTER DRIVE Part #: 3235241 Required per assembly: 1 Currently Not Available
73	BRACKET, WIRE, HARNESS Part #: 3235350 Required per assembly: 2 Currently Not Available
74	BRACKET, REAR, MOUNT Part #: 3235559 Required per assembly: 1 Currently Not Available
75	CHAIN, SILENT Part #: 3234737 Required per assembly: 1 Currently Not Available
76	PIN-GEAR POSITION SWITCH Part #: 7661999 Required per assembly: 1 Currently Not Available
77	K-SPEED SENSOR Part #: 3239727 Required per assembly: 1 Currently Not Available
79	O-RING Part #: 3233836 Required per assembly: 1 Currently Not Available
80	O-RING Part #: 3233828 Required per assembly: 1 Currently Not Available
81	SEAL-TRI, LIP, 25X80X10, HI, TEMP Part #: 3235658 Required per assembly: 1 Currently Not Available
82	SEAL-TRIPLE LIP VITON 40X70X7 Part #: 3235052 Required per assembly: 2 Currently Not Available
83	SEAL, TRIPLE, LIP Part #: 3235495 Required per assembly: 1 Currently Not Available
