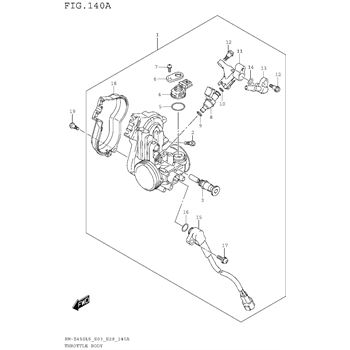

Throttle Body replacement parts for 2015 Suzuki RM-Z450

OEM Parts Suzuki 2015 Suzuki RM Z450 Throttle Body

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BODY, ASSEMBLY, THROTTLE Part #: 13041-28H51 Required per assembly: 1 $736.77 $663.09 - + Add to cart
2	SCREW Part #: 13296-28H00 Required per assembly: 1 Not Available
3	STARTER Part #: 13410-28H10 Required per assembly: 1 $93.67 $84.30 - + Add to cart
4	SENSOR, MAP Part #: 15620-05H00 Required per assembly: 1 $292.61 $250.17 - + Add to cart
5	O RING Part #: 15621-05H01 Required per assembly: 1 $9.79 $8.81 - + Add to cart
6	PLATE, STAY Part #: 13565-28H10 Required per assembly: 1 $25.24 $22.72 - + Add to cart
7	SCREW Part #: 13601-15F20 Required per assembly: 1 Not Available
8	INJECTOR ASSEMBLY Part #: 15710-02J00 Required per assembly: 1 $343.95 $309.56 - + Add to cart
9	O RING Part #: 15722-21H00 Required per assembly: 1 $13.90 $12.51 - + Add to cart
10	O RING Part #: 15721-21H00 Required per assembly: 1 $11.73 $10.56 - + Add to cart
11	FUEL PIPE Part #: 13471-28H00 Required per assembly: 1 $66.06 $59.45 - + Add to cart
12	SCREW Part #: 13452-28H10 Required per assembly: 3 $7.29 $6.56 - + Add to cart
13	JOINT Part #: 13685-28H00 Required per assembly: 1 $44.10 $39.69 - + Add to cart
14	O RING Part #: 15721-24F00 Required per assembly: 1 $11.22 $10.10 - + Add to cart
15	SENSOR, ASSEMBLY, THR Part #: 13580-28H11 Required per assembly: 1 $282.51 $254.26 - + Add to cart
16	O RING Part #: 13575-40F00 Required per assembly: 1 $5.42 $4.88 - + Add to cart
17	SCREW Part #: 13605-40F00 Required per assembly: 1 $4.72 $4.25 - + Add to cart
18	COVER Part #: 13484-28H00 Required per assembly: 1 Not Available
19	BOLT Part #: 13601-28H00 Required per assembly: 2 $4.10 $3.69 - + Add to cart
