Electrical 1 replacement parts for 2015 Yamaha TMAX

OEM Parts Yamaha 2015 Yamaha TMAX Electrical 1

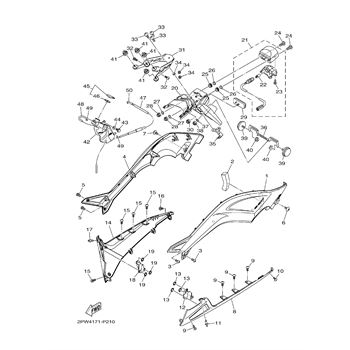

ELECTRICAL 1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ENGINE CONTROL UNI Part #: 2PW-8591A-40-00 Required per assembly: 1 $670.90 $609.91 - + Add to cart
2	NUT, U, FLANGE Part #: 95604-06200-00 Required per assembly: 2 $2.95 $2.31 - + Add to cart
3	YTZ12S YUASA BATTER (GS YUASA YTZ12S) Part #: YTZ-12S00-00-00 Required per assembly: 1 $244.41 - + Add to cart
4	BRACKET 10 Part #: 2PW-2116M-01-00 Required per assembly: 1 $24.71 - + Add to cart
5	BRACKET 11 Part #: 2PW-2114V-00-00 Required per assembly: 1 $8.49 $6.77 - + Add to cart
6	PLATE, COVER Part #: 2PW-2132H-00-00 Required per assembly: 1 $6.49 $4.97 - + Add to cart
7	RIVET Part #: 90269-06008-00 Required per assembly: 6 $9.49 $7.26 - + Add to cart
8	STARTER RELAY ASSEMBLY Part #: 59C-81940-00-00 Required per assembly: 1 $123.98 $102.79 - + Add to cart
9	FUSE (40A-BL) Part #: 5EA-82151-00-00 Required per assembly: 2 $5.49 $4.02 - + Add to cart
10	COVER, LEAD, WIRE Part #: 5SL-82119-10-00 Required per assembly: 1 $5.49 $3.99 - + Add to cart
11	WIRE, PLUS, LEAD Part #: 59C-82115-00-00 Required per assembly: 1 $39.99 $34.23 - + Add to cart
12	WIRE, MINUS, LEAD Part #: 59C-82116-00-00 Required per assembly: 1 $48.99 $42.38 - + Add to cart
13	WIRE, SUB, LEAD Part #: 59C-82583-00-00 Required per assembly: 1 $28.98 $23.72 - + Add to cart
14	BOLT, FLANGE Part #: 95022-06008-00 Required per assembly: 2 $9.49 $6.15 - + Add to cart
15	RECTIFIER & REGULATOR ASSEMBLY Part #: 5VX-81960-00-00 Required per assembly: 1 $241.99 $209.23 - + Add to cart
16	BOLT, FLANGE Part #: 95817-06020-00 Required per assembly: 2 $3.50 $2.65 - + Add to cart
17	WIRE HARNESS ASSEMBLY Part #: 2PW-82590-00-00 Required per assembly: 1 $758.40 $696.46 - + Add to cart
18	DIODE ASSEMBLY Part #: 4WA-81980-00-00 Required per assembly: 2 $32.99 $25.51 - + Add to cart
19	DIODE ASSEMBLY Part #: 3WP-81980-00-00 Required per assembly: 2 $24.98 $18.52 - + Add to cart
20	FUSE (15A) Part #: 67F-82151-50-00 Required per assembly: 3 Note: (15A) (15A) $4.04 $3.78 - + Add to cart
21	FUSE - 5 A - BLADE (1/PKG) Part #: 67F-82151-20-00 Required per assembly: 2 $6.04 $5.67 - + Add to cart
22	FUSE (75A-BL) Part #: 5JJ-82151-00-00 Required per assembly: 4 $7.49 $6.29 - + Add to cart
23	FUSE (10A) Part #: 67F-82151-40-00 Required per assembly: 3 Note: (10A) $7.09 $6.65 - + Add to cart
24	CLAMP Part #: 90464-22004-00 Required per assembly: 1 $4.00 $3.30 - + Add to cart
25	SWITCH, SIDE, STAND Part #: 59C-82566-00-00 Required per assembly: 1 $60.99 $54.46 - + Add to cart
26	BOLT, BUTTON, HEAD Part #: 92012-05020-00 Required per assembly: 2 $1.39 $1.15 - + Add to cart
27	NUT, S/L, FLANGE Part #: 95607-05200-00 Required per assembly: 2 $10.49 $6.73 - + Add to cart
28	STEERING LOCK ASSEMBLY Part #: 2PW-23480-00-00 Required per assembly: 1 $671.43 $610.39 - + Add to cart
29	SCREW Part #: 90149-08036-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
30	SWITCH ASSEMBLY Part #: 59C-81860-00-00 Required per assembly: 1 $37.99 $32.69 - + Add to cart
31	SCREW, BIND Part #: 98902-03008-00 Required per assembly: 1 $0.50 $0.41 - + Add to cart
32	SENSOR, LEAN, ANGLE Part #: 5PS-82576-02-00 Required per assembly: 1 $96.98 $83.11 - + Add to cart
33	BOLT, HEXAGON, SOCKET, HEAD Part #: 91312-04025-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
34	WASHER, PLATE Part #: 90201-04027-00 Required per assembly: 2 $2.45 $1.84 - + Add to cart
35	RELAY ASSEMBLY (1ST-00) Part #: 1ST-81950-00-00 Required per assembly: 6 $19.98 $14.68 - + Add to cart
36	HOLDER, RELAY Part #: 5JJ-81952-00-00 Required per assembly: 1 $10.99 $7.80 - + Add to cart
37	RELAY ASSEMBLY (G8HN-1C4T-DJ-Y51) Part #: 5JJ-81950-11-00 Required per assembly: 1 $31.98 $24.30 - + Add to cart
38	REMOTE CONTROL UNI Part #: 2PW-86260-19-00 Required per assembly: 1 $421.97 $383.61 - + Add to cart
39	KEY, MAIN, SWITCH Part #: 2PW-82511-18-00 Required per assembly: 1 $470.99 $460.60 - + Add to cart
40	REMOTE CONTROL UNIT SET Part #: 2PW-W862A-40-00 Required per assembly: 1 $2,444.98 $2,400.47 - + Add to cart
41	SWITCH ASSEMBLY Part #: 2PW-8259E-00-00 Required per assembly: 1 $182.99 $170.67 - + Add to cart
42	CLAMP 1 Part #: 5Y9-12491-00-00 Required per assembly: 1 $7.49 $6.27 - + Add to cart
43	CLAMP Part #: 80L-26397-00-00 Required per assembly: 1 $7.99 $5.49 - + Add to cart
44	RELAY ASSEMBLY (1TP-00) Part #: 1TP-81950-00-00 Required per assembly: 2 $16.48 $13.93 - + Add to cart
45	HOLDER, RELAY Part #: 5EA-81952-00-00 Required per assembly: 1 $8.49 $6.67 - + Add to cart
46	BAND Part #: 2PW-85546-00-00 Required per assembly: 1 $11.49 $9.24 - + Add to cart
47	CLAMP Part #: 80L-26397-00-00 Required per assembly: 1 $7.99 $5.49 - + Add to cart
