Starter Motor replacement parts for 2016 Honda CBR500R

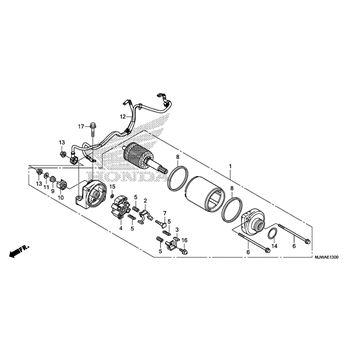

OEM Parts Honda 2016 Honda CBR500R Starter Motor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	STARTER MOTOR ASSEMBLY Part #: 31200-MGZ-J01 Required per assembly: 1 $359.76 $294.09 - + Add to cart
002	BRUSH, SET, A, CARBON Part #: 31201-MEW-921 Required per assembly: 1 $9.34 $8.07 - + Add to cart
003	BRUSH, SET, B, CARBON Part #: 31202-MEW-921 Required per assembly: 1 $15.17 $12.64 - + Add to cart
004	HOLDER, BRUSH Part #: 31203-MEW-921 Required per assembly: 1 $9.01 $7.78 - + Add to cart
005	SPRING, CARBON, BRUSH Part #: 31204-MEW-921 Required per assembly: 4 $15.08 $12.19 - + Add to cart
006	BOLT, SETTING Part #: 31205-HP5-601 Required per assembly: 2 $3.67 $2.87 - + Add to cart
007	BOLT, TERMINAL Part #: 31206-MEW-921 Required per assembly: 1 $3.60 - + Add to cart
008	RING Part #: 31207-HP5-601 Required per assembly: 2 $3.11 $2.90 - + Add to cart
009	INSULATOR Part #: 31208-MEW-921 Required per assembly: 1 $8.36 $7.27 - + Add to cart
010	STOPPER, TERMINAL Part #: 31209-MEW-921 Required per assembly: 1 $12.42 $10.05 - + Add to cart
011	WASHER Part #: 31210-MEW-921 Required per assembly: 1 $2.81 $2.61 - + Add to cart
012	CABLE Part #: 32405-MGZ-J00 Required per assembly: 1 $34.79 $27.74 - + Add to cart
013	NUT-WASHER (6MM) Part #: 90071-MB0-000 Required per assembly: 2 $3.04 $2.83 - + Add to cart
014	O-RING (24.4X3.1) Part #: 91312-MG7-003 Required per assembly: 1 $7.61 $6.11 - + Add to cart
014	O-RING (24.4X3.1) Part #: 91312-MG7-003 Required per assembly: 1 $7.61 $6.11 - + Add to cart
015	O-RING Part #: 91320-MB0-000 Required per assembly: 1 $3.47 $3.15 - + Add to cart
016	SCREW-WASHER (5X12) Part #: 93892-05012-08 Required per assembly: 1 $2.18 $2.02 - + Add to cart
017	BOLT, FLANGE, (6X28) Part #: 95801-06028-00 Required per assembly: 2 $2.81 $2.61 - + Add to cart
