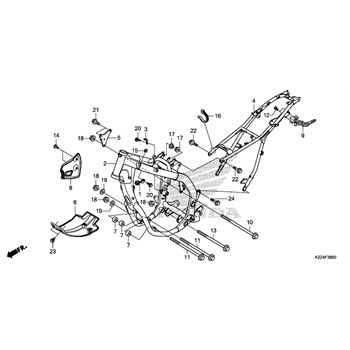

Frame replacement parts for 2016 Honda CRF250L

OEM Parts Honda 2016 Honda CRF250L Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CLAMP, HARNESS Part #: 32111-KZZ-900 Required per assembly: 1 $13.75 $11.24 - + Add to cart
002	FRAME NH146M Part #: 50100-KZZ-900ZB Note: ACCURATE SILVER METALLIC $634.73 $581.20 - + Add to cart
003	STAY, STOP, SWITCH Part #: 50175-KZZ-900 Required per assembly: 1 $2.78 $2.58 - + Add to cart
004	FRAME, RR., NH146M Part #: 50200-KZZ-900ZB Note: ACCURATE SILVER METALLIC $210.47 - + Add to cart
005	PLATE, R., ENG, HGR Part #: 50351-KZZ-900 Required per assembly: 1 $9.96 $8.45 - + Add to cart
006	PLATE, SKID Part #: 50355-KZZ-900 Required per assembly: 1 $21.62 $17.24 - + Add to cart
007	COLLAR, ENG, HGR Part #: 50361-KZZ-900 Required per assembly: 3 $3.28 - + Add to cart
008	GUARD, HEEL Part #: 50615-KZZ-900 Required per assembly: 1 $5.42 $5.11 - + Add to cart
009	HOLDER, ASSEMBLY, HELMET Part #: 50710-KCZ-J71 Required per assembly: 1 $43.94 $36.63 - + Add to cart
010	BOLT, FLG, (10X150) Part #: 90102-KZZ-900 Required per assembly: 1 $4.00 - + Add to cart
011	BOLT, FLG, (10X140) Part #: 90104-HP6-A00 Required per assembly: 2 $6.29 - + Add to cart
012	BOLT, ONE-WAY, (6X10) Part #: 90105-KGA-B00 Required per assembly: 2 $3.15 - + Add to cart
013	BOLT, FLG, (10X130) Part #: 90127-KR3-000 Required per assembly: 1 $9.45 $8.16 - + Add to cart
014	SCREW, PAN, (6X14) Part #: 90133-KPP-T00 Required per assembly: 2 $2.33 $2.16 - + Add to cart
015	NUT, CLIP, (6MM) Part #: 90201-KPR-901 Required per assembly: 4 $2.86 $2.65 - + Add to cart
017	NUT, FLANGE, (8MM) Part #: 94050-08000 Required per assembly: 2 Note: Sold in multiples of 5 only $2.01 $1.96 - + Add to cart
018	NUT, FLANGE, (10MM) Part #: 94050-10000 Required per assembly: 4 $2.60 $2.41 - + Add to cart
019	WASHER, PLAIN, (10MM) Part #: 94101-10800 Required per assembly: 2 $2.87 $2.67 - + Add to cart
020	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 2 $2.63 $2.44 - + Add to cart
021	BOLT, FLANGE, (8X16) Part #: 95701-08016-00 Required per assembly: 2 $2.79 $2.60 - + Add to cart
022	BOLT, FLANGE, (8X18) Part #: 95701-08018-00 Required per assembly: 2 $2.79 $2.60 - + Add to cart
023	BOLT, FLANGE, (6X10) Part #: 96300-06010-08 Required per assembly: 2 $2.76 $2.57 - + Add to cart
024	BOLT, FLANGE, (8X20) Part #: 96300-08020-00 Required per assembly: 2 $2.57 $2.39 - + Add to cart
