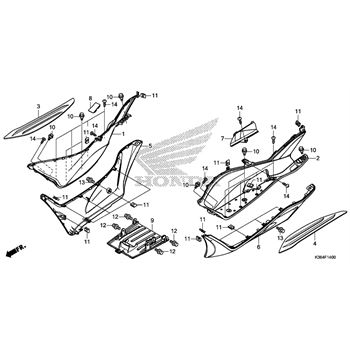

2016 Honda PCX150 - Floor Step

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
001

STEP, R., FLOOR, *NH1*, (BLACK)

Part #: 64311-K35-V00ZA
$30.11
002

STEP, L., FLOOR, *NH1*, (BLACK)

Part #: 64321-K35-V00ZA
$30.19
003

FLOOR, MAT, R.

Part #: 64325-K35-V00 Required per assembly: 1
$4.26
004

FLOOR, MAT, L.

Part #: 64326-K35-V00 Required per assembly: 1
$4.26
005
$116.84
$103.18
005
$131.07
$104.53
006
$136.49
$118.85
006
$136.47
$108.84
007

LID *NH1* (BLACK)

Part #: 64434-K35-V00ZA
$2.73
$2.54
008

LID *NH1* (BLACK)

Part #: 64435-K35-V00ZB
$7.29
009

COVER (LOWER)

Part #: 64530-KWN-711 Required per assembly: 1
$4.19
010

BOLT, FLANGE, (6MM)

Part #: 90116-KVB-900 Required per assembly: 8
$2.06
$1.90
011

NUT, SPRING, (4MM)

Part #: 90302-KWW-A00 Required per assembly: 17
$2.04
$1.88
012

BOLT-WASHER (6X12)

Part #: 93404-06012-00 Required per assembly: 4
$2.63
$2.44
013

BOLT-WASHER (6X12)

Part #: 93404-06012-07 Required per assembly: 2
$2.63
$2.44
014

SCREW, TAP, (4X16)

Part #: 93903-34420 Required per assembly: 13
$1.87
$1.73
