Headlight replacement parts for 2016 Honda RC213V-S

OEM Parts Honda 2016 Honda RC213V S Headlight

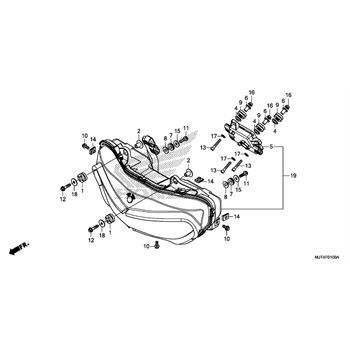

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	RUBBER Part #: 19051-KA3-830 Required per assembly: 2 $4.64 $4.22 - + Add to cart
002	COLLAR Part #: 19052-MAC-680 Required per assembly: 2 $6.18 $5.50 - + Add to cart
003	HEADLIGHT UNIT Part #: 33102-MJT-E01 Required per assembly: 1 $9,439.28 $7,640.73 - + Add to cart
004	COLLAR, LED, DRIVER Part #: 33104-MJT-E00 Required per assembly: 3 $5.16 - + Add to cart
005	LED UNIT Part #: 33109-MJN-H01 Required per assembly: 1 $287.36 $232.61 - + Add to cart
006	COLLAR Part #: 33718-GAS-900 Required per assembly: 3 $4.85 $4.41 - + Add to cart
007	GROMMET, A, TUBE Part #: 36037-657-000 Required per assembly: 2 $7.39 $7.04 - + Add to cart
008	COLLAR, RR. Part #: 50609-MFF-D00 Required per assembly: 2 $5.26 $5.25 - + Add to cart
009	RUBBER, TAILLIGHT Part #: 77209-MJM-D60 Required per assembly: 3 $5.31 $4.83 - + Add to cart
010	BOLT, FLANGE, (6X14) Part #: 90124-MJT-E00 Required per assembly: 3 $98.03 $79.36 - + Add to cart
011	BOLT, FLANGE, (6X20) Part #: 90127-MJT-E00 Required per assembly: 2 $105.74 $85.59 - + Add to cart
012	BOLT, FLANGE, (6X25) Part #: 90129-MJT-E00 Required per assembly: 2 $110.82 $89.70 - + Add to cart
013	BOLT, SOCKET, (5X30) Part #: 90159-MJT-E00 Required per assembly: 3 $29.79 $24.11 - + Add to cart
014	NUT, CLIP, (6MM) Part #: 90201-KPR-901 Required per assembly: 3 $2.86 $2.65 - + Add to cart
015	WASHER (6MM) Part #: 90406-KV3-780 Required per assembly: 2 $3.47 $3.15 - + Add to cart
016	NUT, FLANGE, (5MM) Part #: 94050-05070 Required per assembly: 3 $2.32 $2.15 - + Add to cart
017	WASHER, PLAIN, (5MM) Part #: 94101-05700 Required per assembly: 3 $2.02 $1.87 - + Add to cart
018	WASHER, PLAIN, (6MM) Part #: 94103-06700 Required per assembly: 2 $1.78 $1.64 - + Add to cart
019	HEADLIGHT ASSEMBLY Part #: 33100-MJT-E01 Required per assembly: 1 $9,911.65 $7,904.54 - + Add to cart
