Front Gearcase Internals - A16daa57n1/E57nm (100202) replacement parts for 2016 Polaris ACE 570 EFI MD

OEM Parts Polaris 2016 Polaris ACE 570 EFI MD Front Gearcase Internals - A16daa57n1/E57nm (100202)

Front Gearcase Internals - A16DAA57N1/E57NM (100202) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

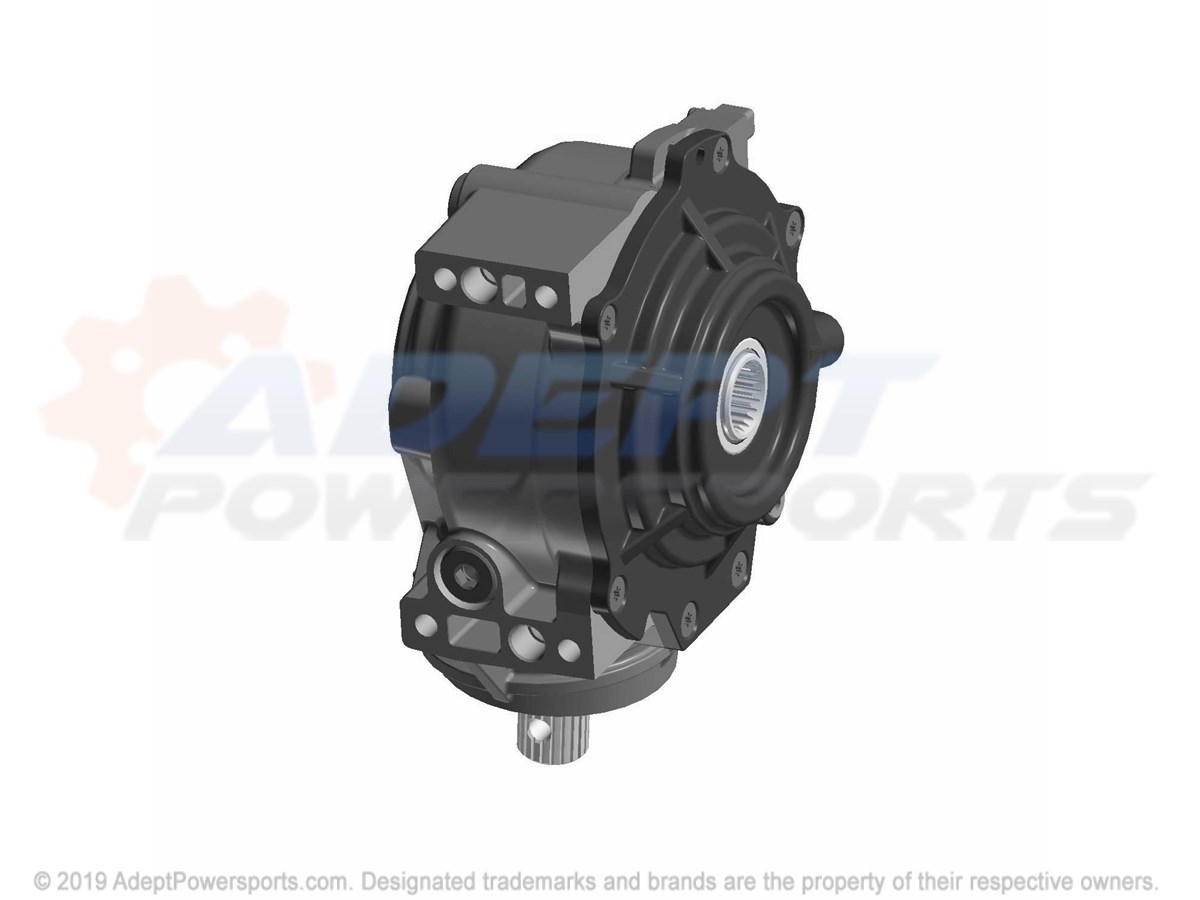

1	ASM-GEARCASE, FRONT-12, POCKET Part #: 1333375 Required per assembly: 1 Currently Not Available
2	ASM-COVER, OUTPUT Part #: 3236681 Required per assembly: 1 Currently Not Available
3	K-HUB, ASM Part #: 3236683 Required per assembly: 1 Currently Not Available
4	KIT-FASTENER Part #: 3235170 Required per assembly: 1 Currently Not Available
5	K-SEAL REPAIR Part #: 3236682 Required per assembly: 1 Currently Not Available
6	PLATE-4WD ARMATURE Part #: 3236048 Required per assembly: 1 Currently Not Available
7	BEARING-PINION 5306 Part #: 3235174 Required per assembly: 1 Currently Not Available
8	K-CLUTCH ROLLS Part #: 3235624 Required per assembly: 1 Note: Sold in multiples of 24 only Currently Not Available
9	ASM-ROLL CAGE Part #: 3235844 Required per assembly: 1 Currently Not Available
10	KIT, GEARCASE, ASSEMBLY, W/HOSE, FITTING, BUSHING, SEAL, GEARCASE, FILL, PLUG, &, DRAIN, PLUG Part #: 3235440 Required per assembly: 1 Currently Not Available
11	PLUG, DRAIN Part #: 2203738 Required per assembly: 1 Currently Not Available
12	PLUG, FILL Part #: 2203739 Required per assembly: 1 Note: Plug, Fill [w/o O-Ring] Currently Not Available
13	K-GEAR CLTCH HOUSING & PINION Part #: 3235628 Required per assembly: 1 Currently Not Available
14	K-TORSION SPRING & RETAINER Part #: 3235712 Required per assembly: 1 Currently Not Available
