OEM Parts Polaris 2016 Polaris Sportsman 570 EFI Headlight Pod - A16sea57a1/7/8/9/L7/E57a1/5/7/9

2016 Polaris Sportsman 570 EFI A16SEA57A1/7/8/9/L7/E57A1/5/7/9 - Headlight Pod - A16sea57a1/7/8/9/L7/E57a1/5/7/9

Headlight Pod - A16SEA57A1/7/8/9/L7/E57A1/5/7/9 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5436819-293 Pod, Headlight, Upper, Indy, Red, [Az]

POD, HEADLIGHT, UPPER, INDY, RED, [AZ]

Part #: 5436819-293 Required per assembly: 1 Note: A7
Currently Not Available
1
Polaris 5436819-498 Pod, Headlight, Upper, Sage, Brush, Green, Metallic, [Ax]

POD, HEADLIGHT, UPPER, SAGE, BRUSH, GREEN, METALLIC, [AX]

Part #: 5436819-498 Required per assembly: 1 Note: A1
Currently Not Available
1
Polaris 5439061-587 Pod, Headlight, Upper, Polaris, Pursuit, Camo

POD, HEADLIGHT, UPPER, POLARIS, PURSUIT, CAMO

Part #: 5439061-587 Required per assembly: 1 Note: A9
Currently Not Available
1
Polaris 5436819-053 Pod, Headlight, Upper, Meduim, Yellow

POD, HEADLIGHT, UPPER, MEDUIM, YELLOW

Part #: 5436819-053 Required per assembly: 1 Note: A8
Currently Not Available
1

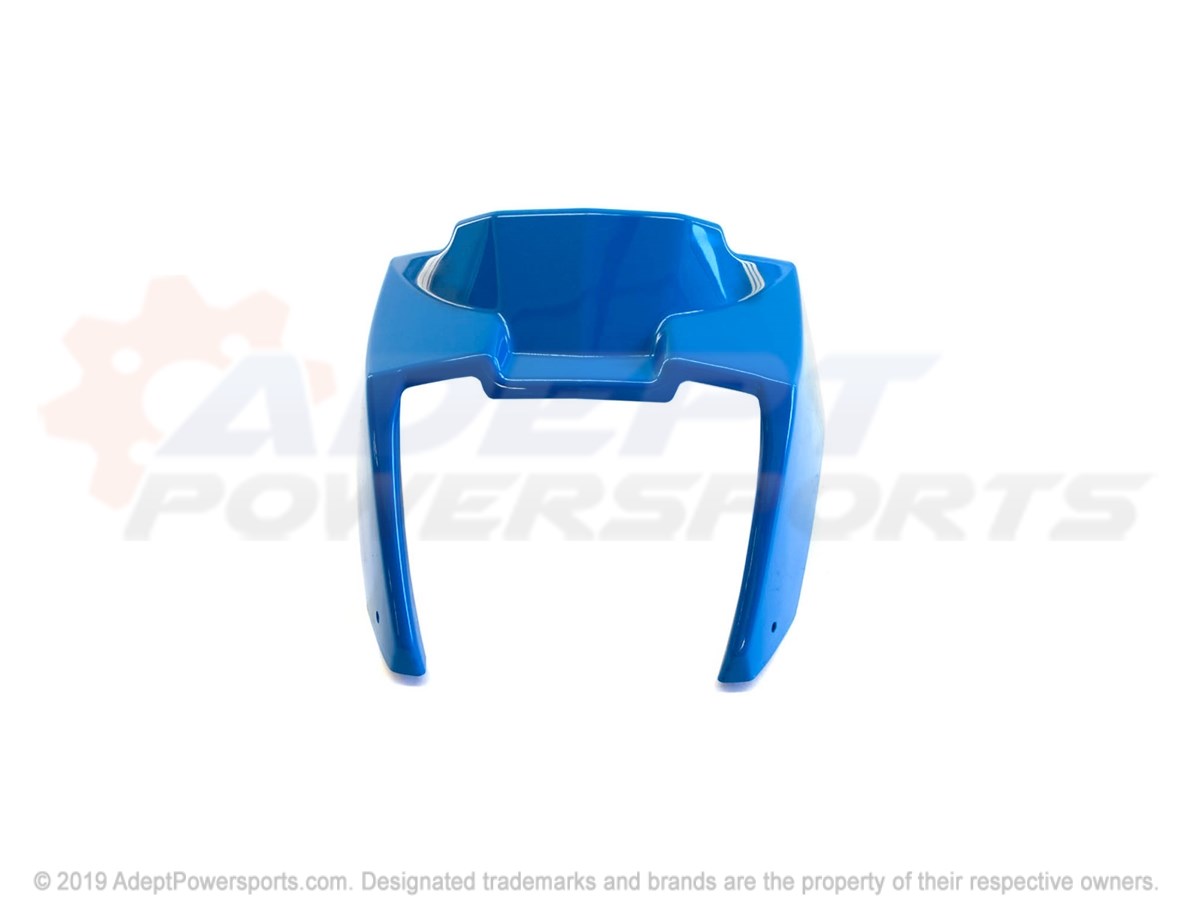

Polaris 5436819-689 Pod-Hdlt, Upper, Snap, Vel.Blue

POD-HDLT, UPPER, SNAP, VEL.BLUE

Part #: 5436819-689 Required per assembly: 1 Note: A5
Currently Not Available
2
Polaris 7511881 Screw

SCREW

Part #: 7511881 Required per assembly: 3
$2.99
$1.73
-
+
Add to cart
3
Polaris 5436747-070 Pod, Headlight, Lower, Snap, Black, [At]

POD, HEADLIGHT, LOWER, SNAP, BLACK, [AT]

Part #: 5436747-070 Required per assembly: 1 Note: Pod, Headlight, Lower, Snap, Black
Currently Not Available
4
Polaris 5410163 O Ring

O RING

Part #: 5410163 Required per assembly: 2
$4.99
$2.92
-
+
Add to cart
5

CLIP-SCREW, #8/10, .03-.10, PANEL

Part #: 7670127 Required per assembly: 1
Currently Not Available
6
Polaris 5413239 Grommet

GROMMET

Part #: 5413239 Required per assembly: 1
Currently Not Available
