Front Cab And Side Panels - A16swe57a1/A7 (100100) replacement parts for 2016 Polaris Sportsman 570 EFI X2 EPS

OEM Parts Polaris 2016 Polaris Sportsman 570 EFI X2 EPS Front Cab And Side Panels - A16swe57a1/A7 (100100)

Front Cab and Side Panels - A16SWE57A1/A7 (100100) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

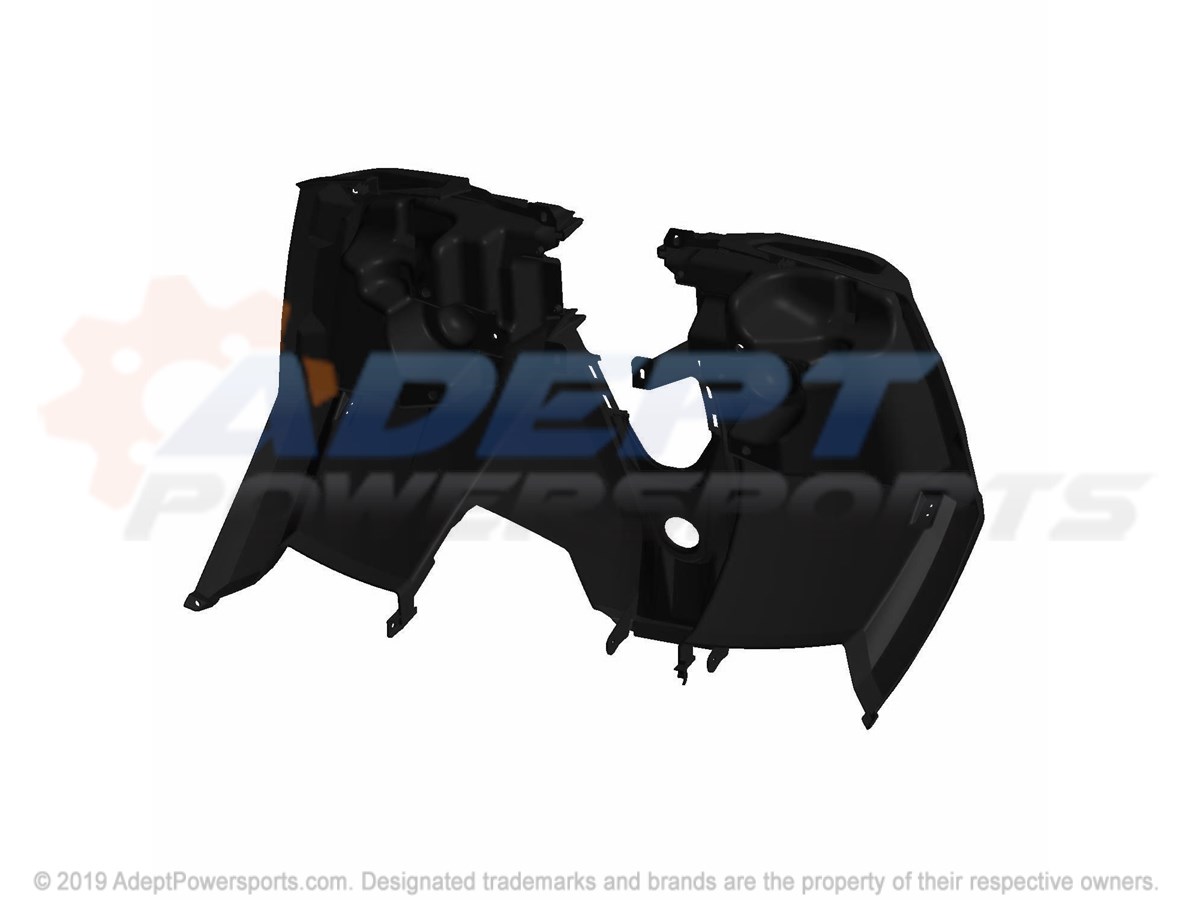

1	ASSEMBLY, CAB, FRONT, INDY, RED, [INCL., WARNING, DECALS] Part #: 2634163-293 Required per assembly: 1 Note: A7 Currently Not Available
1	ASSEMBLY, CAB, FRONT, SAGE, BRUSH, GREEN, METALLIC, [INCL., WARNING, DECALS] Part #: 2634163-498 Required per assembly: 1 Note: A1 Currently Not Available

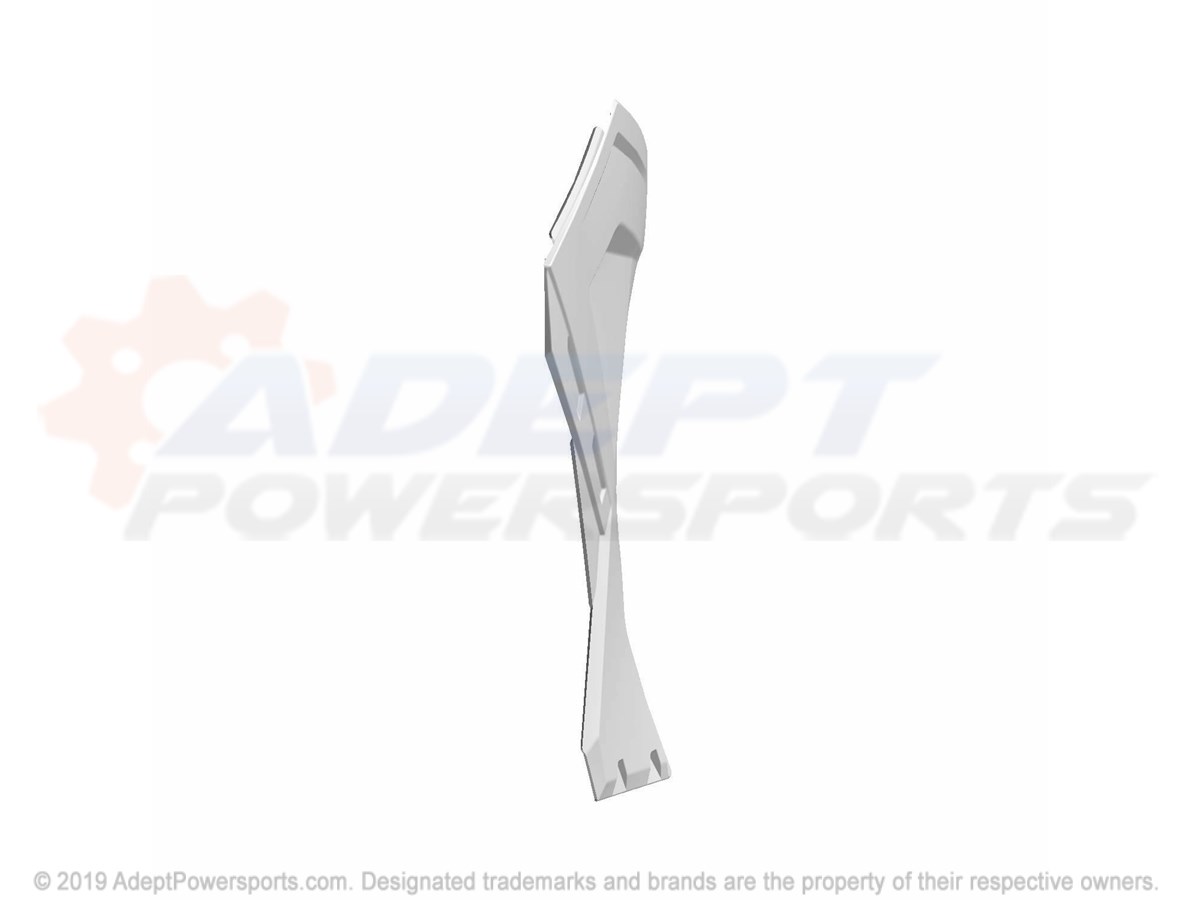

2	PANEL, SIDE, LH, SAGE, BRUSH, GREEN, METALLIC Part #: 5450530-498 Required per assembly: 1 Note: A1 Currently Not Available
2	PANEL-SIDE, LH, INDY, RED Part #: 5450530-293 Required per assembly: 1 Note: A7 Currently Not Available
3	COVER-FRONT SAGEBRUSH GRN MET Part #: 5439069-498 Required per assembly: 1 Note: A1 Currently Not Available
3	COVER-FRONT INDY RED Part #: 5439069-293 Required per assembly: 1 Note: A7 Currently Not Available
4	ASSEMBLY, PANEL/FOIL, RH, SAGE, BRUSH, GREEN, METALLIC, [AA] Part #: 2635299-498 Required per assembly: 1 Note: A1 Currently Not Available
4	ASM-PANEL/SHIELD, RH, INDY, RED Part #: 2636442-293 Required per assembly: 1 Note: A7 Currently Not Available
5	FOIL-SIDE, PANEL, SPMN Part #: 5814317 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7519045 Required per assembly: 4 Currently Not Available
7	WASHER, FLAT Part #: 7555859 Required per assembly: 1 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart
8	BRACKET, PLUG, MOUNT Part #: 5258497 Required per assembly: 1 Currently Not Available
9	BOLT Part #: 7512193 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7515399 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
11	NUT Part #: 7542153 Required per assembly: 2 Note: Nut, Flanged, Nylok ~~$3.47~~ $2.30 - + Add to cart
12	RIVET Part #: 7661855 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
13	WASHER, FLAT Part #: 7555960 Required per assembly: 2 Currently Not Available
14	SEAL-BULB .375 350CM Part #: 5521697-350 Required per assembly: 2 Currently Not Available
15	PLUG Part #: 5412981 Required per assembly: 4 Currently Not Available
16	BOLT Part #: 7512232 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
