Rear Cab And Rear Rack - A16sxe95ag/Ar/D95a9 replacement parts for 2016 Polaris Sportsman 1000 XP

OEM Parts Polaris 2016 Polaris Sportsman 1000 XP Rear Cab And Rear Rack - A16sxe95ag/Ar/D95a9

Rear Cab and Rear Rack - A16SXE95AG/AR/D95A9 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

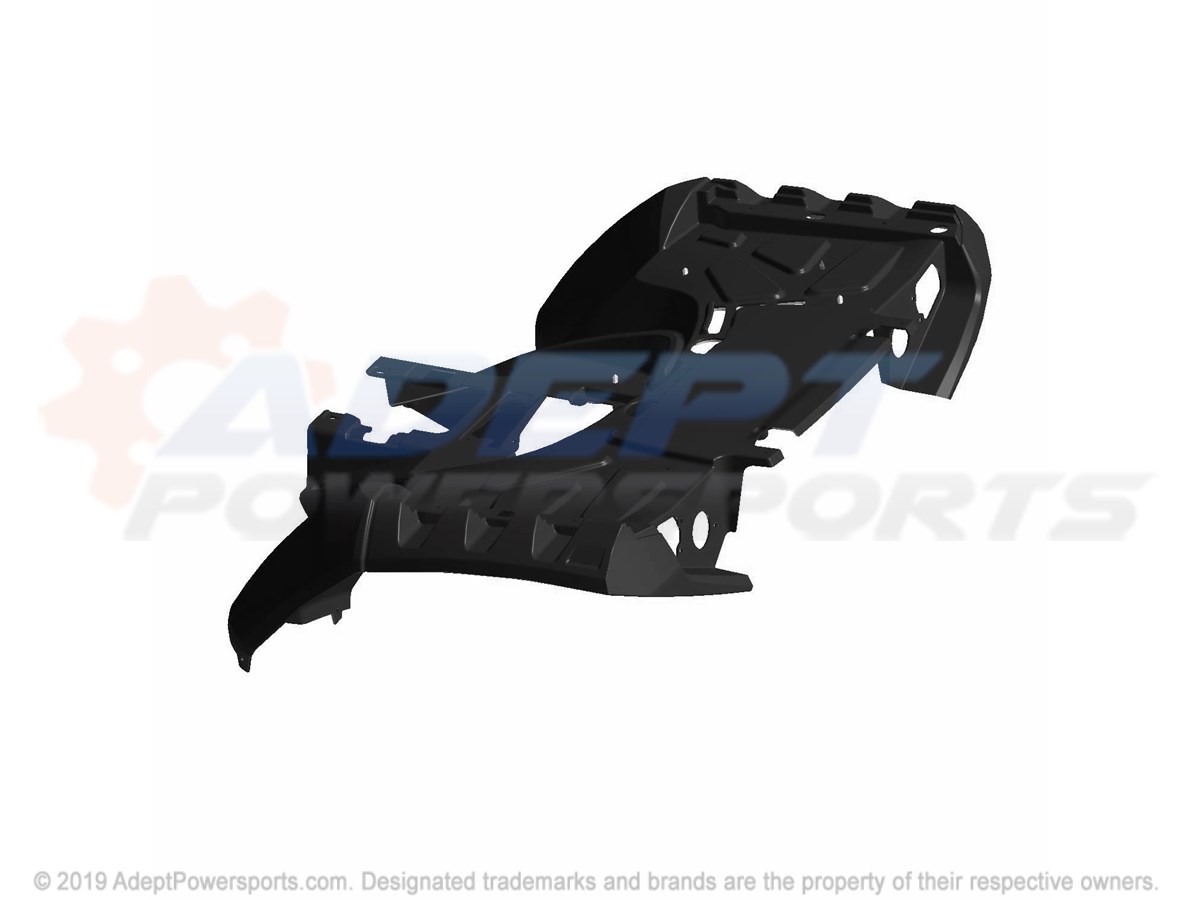

1	ASSEMBLY, CAB, REAR, POLARIS, PURSUIT, CAMO, [BUILT, 10/16/12, AND, AFTER][INCL., 11, 12] Part #: 2635038-587 Required per assembly: 1 Note: A9 Currently Not Available
1	ASM-CAB, REAR, SUEDE, SBG Part #: 2635037-685 Required per assembly: 1 Note: AG Currently Not Available
1	ASM-CAB, REAR, HAVASU, RED, PEARL Part #: 2635037-649 Required per assembly: 1 Note: AR Currently Not Available
2	ASSEMBLY, RACK, REAR, BLACK Part #: 2633429-070 Required per assembly: 1 Note: INCL. WARNING DECAL Currently Not Available
3	WASHER, WROUGHT Part #: 7558302 Required per assembly: 4 Currently Not Available
4	NUT Part #: 7547274 Required per assembly: 8 Note: Nut, Flange Currently Not Available
5	SCREW Part #: 7519001 Required per assembly: 12 Currently Not Available
6	SCREW Part #: 7518555 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
7	RIVET Part #: 7661855 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
8	TUBE, SUPPORT, RACK, REAR, FRONT, BLACK Part #: 5335770-329 Required per assembly: 1 Currently Not Available
9	BRACKET, RACK, REAR, BLACK Part #: 1016782-329 Required per assembly: 1 Currently Not Available
10	SUPPORT, RACK, REAR, BLACK Part #: 1015776-067 Required per assembly: 1 Currently Not Available
11	EXTENDER, RACK, REAR, [AT] Part #: 1016990-418 Required per assembly: 1 Note: A9 Currently Not Available
12	SCREW Part #: 7519090 Required per assembly: 2 Note: A9 Currently Not Available
13	SHIELD-HEAT REAR CAB Part #: 5254434 Required per assembly: 1 Currently Not Available
14	CLIP, PLASTIC, DART, NYLON Part #: 7670090 Required per assembly: 3 Note: Clip, Dart ~~$2.99~~ $1.73 - + Add to cart
16	SHIELD-HEAT Part #: 5260147 Required per assembly: 1 Currently Not Available
17	SHIELD-HEAT FOOTWELL Part #: 5260610 Required per assembly: 1 Currently Not Available
18	FOIL-SHIELD, FENDER, RH Part #: 5814216 Required per assembly: 1 Currently Not Available
