Front Bumper Winch And Mounting - A16sxm95al replacement parts for 2016 Polaris Sportsman 1000 HL

OEM Parts Polaris 2016 Polaris Sportsman 1000 HL Front Bumper Winch And Mounting - A16sxm95al

Front Bumper Winch and Mounting - A16SXM95AL Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

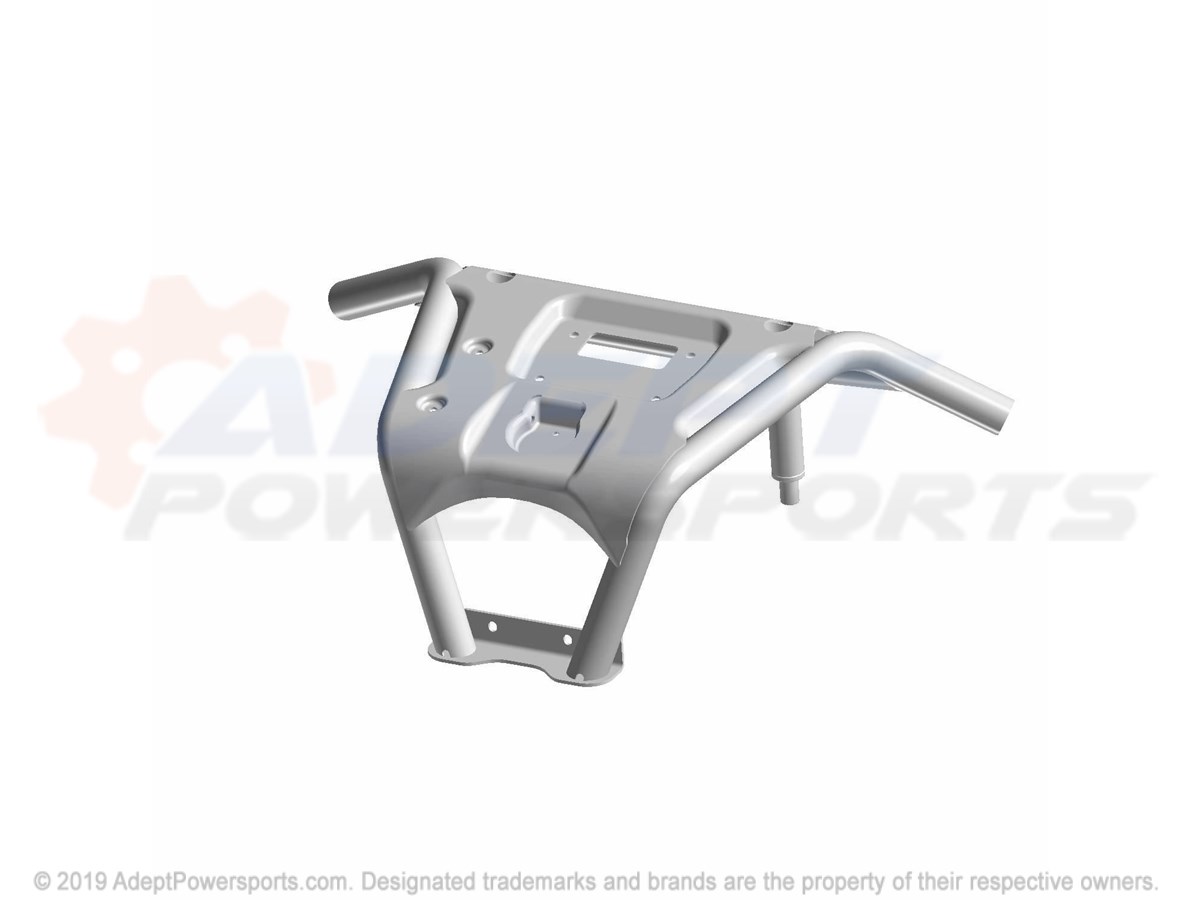

1	WELD-BUMPER, FRONT, ORANGE, BURST Part #: 1021183-647 Required per assembly: 1 Currently Not Available

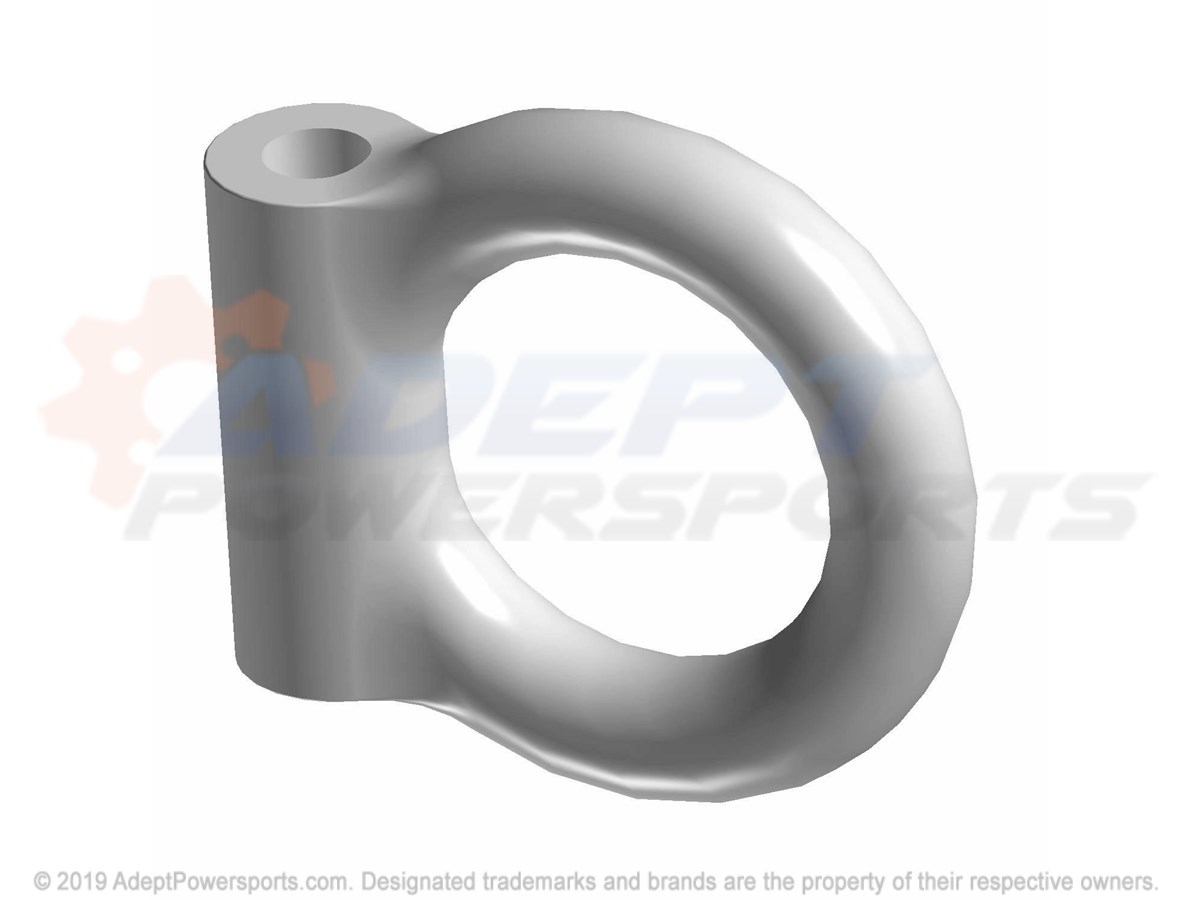

2	FORGING-D-RING, ORANGE, BURST Part #: 5632152-647 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7518911 Required per assembly: 1 Currently Not Available
4	NUT Part #: 7542324 Required per assembly: 1 Currently Not Available
5	LOCK WASHER Part #: 7552901 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
6	K-WINCH, SWITCH, HBR, EU, ATV Part #: 2207175 Required per assembly: 1 Currently Not Available
8	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
9	CONTACTOR-WINCH, POL, LIF, CAP Part #: 4015095 Required per assembly: 1 Currently Not Available
10	CABLE-WINCH, YELLOW, 6, GA, 280MM Part #: 4013468-280 Required per assembly: 1 Currently Not Available
11	CABLE-WINCH, BLUE, 6, GA, 280MM Part #: 4013469-280 Required per assembly: 1 Currently Not Available
12	CABLE-BATT, 6GA, BK, FLAT, 85, M6 Part #: 4014511-470 Required per assembly: 1 Currently Not Available
13	CABLE-BAT, 6GA, RD, FLT, 85, 1C, 510 Part #: 4015517-510 Required per assembly: 1 Currently Not Available
14	FAIRLEAD-CAST Part #: 5633396 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 7516734 Required per assembly: 2 ~~$5.99~~ $3.45 - + Add to cart
16	SCREW, FLANGE Part #: 7518450 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
18	SCREW Part #: 7519217 Required per assembly: 2 Currently Not Available
19	WINCH-POLARIS, 3.5, HL Part #: 2205933 Required per assembly: 1 Currently Not Available
20	KIT, HANDLE, HD, WINCH Part #: 2205265 Currently Not Available
21	K-SVC, HANDLE, WINCH, INT, CAM Part #: 2205497 Currently Not Available
23	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 2 Currently Not Available
24	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
25	HOOK, LATCH Part #: 2411836 Required per assembly: 1 Currently Not Available
26	COVER-MOLD, SWITCH, WINCH Part #: 5415687 Required per assembly: 1 Currently Not Available
