Gps Harness - A16sye95ap replacement parts for 2016 Polaris Sportsman Touring 1000

OEM Parts Polaris 2016 Polaris Sportsman Touring 1000 Gps Harness - A16sye95ap

Gps Harness - A16SYE95AP Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-USB, MFD, RZN Part #: 2412818 Required per assembly: 1 Currently Not Available

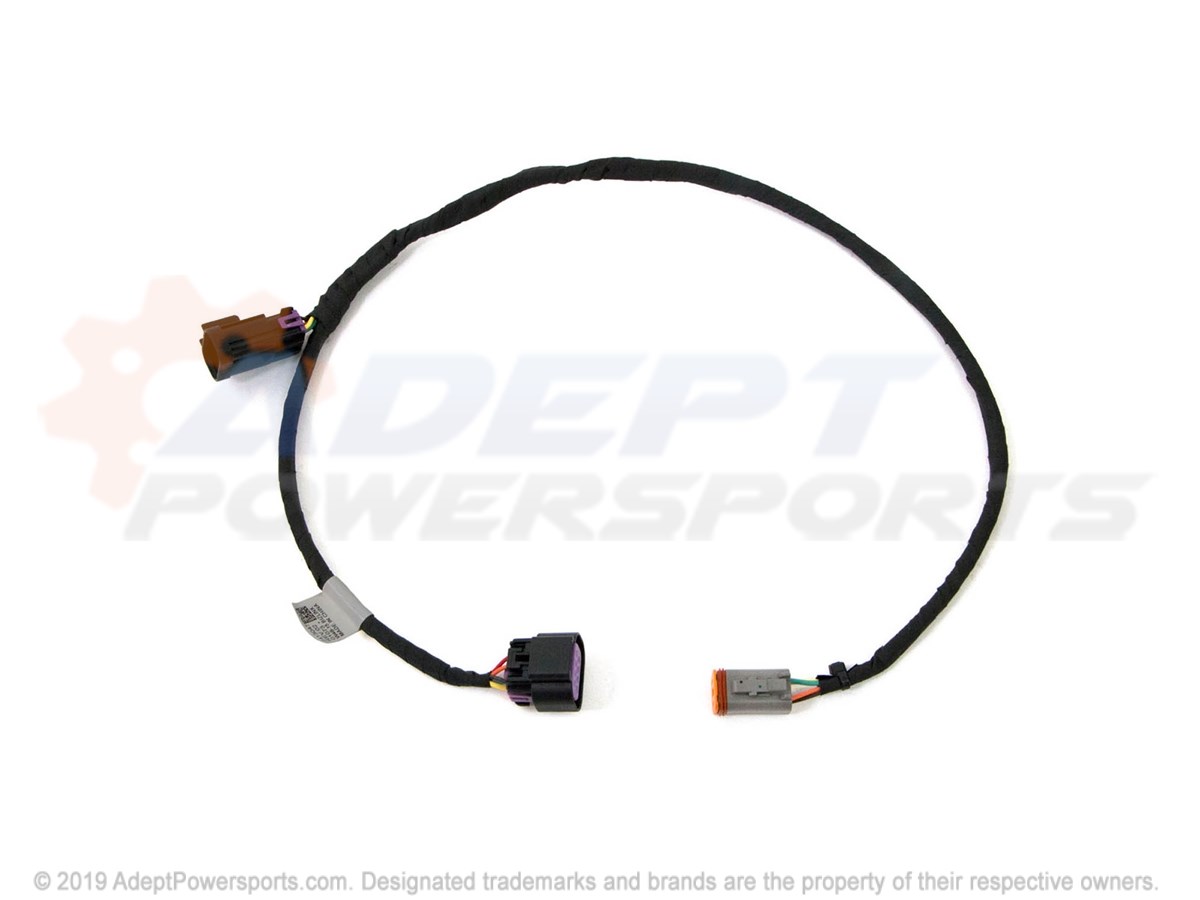

2	HARNESS-GPS, RECEIVER, ATV Part #: 2413047 Required per assembly: 1 Currently Not Available
3	GPS-ANTENNA, RECEIVER, CAN Part #: 4014811 Required per assembly: 1 Currently Not Available
4	BRKT-GPS, SMXP/SPH Part #: 5260355 Required per assembly: 1 Currently Not Available
5	SCR-HXFL M6X1.0X10 10.9 Part #: 7519164 Required per assembly: 3 Currently Not Available
6	STRAP PANDUIT Part #: 7080138 Required per assembly: 5 ~~$1.99~~ $1.15 - + Add to cart
