Front Control Arms - Z16va87 All Options (49Rgrsuspfrt15z90050) replacement parts for 2016 Polaris RZR 900 50/55 Inch All Options

OEM Parts Polaris 2016 Polaris RZR 900 50/55 Inch All Options Front Control Arms - Z16va87 All Options (49Rgrsuspfrt15z90050)

Front Control Arms - Z16VA87 All Options (49RGRSUSPFRT15Z90050) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

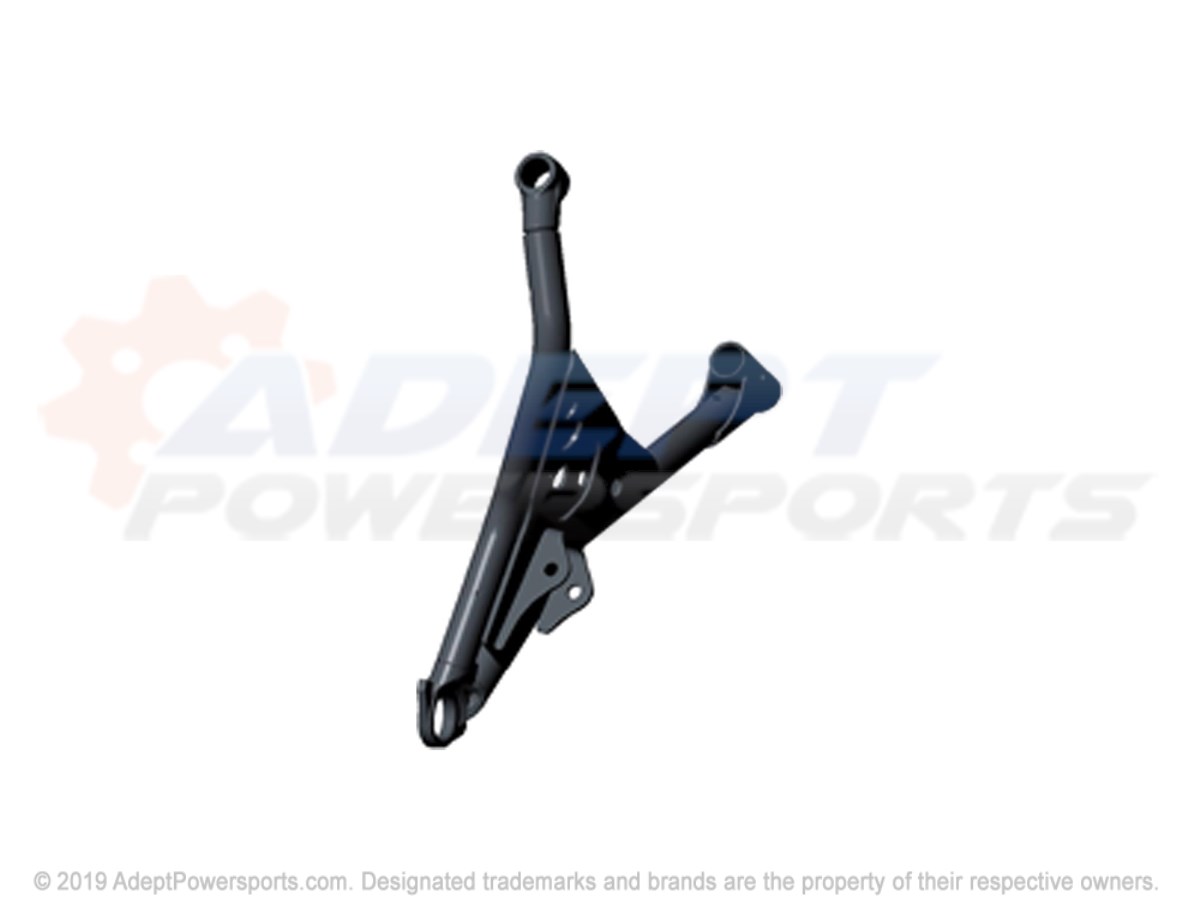

1	WELD-CTRL, AM, LWR, FRT, RH, 50, BLK Part #: 1018817-458 Required per assembly: 1 Note: A2 Currently Not Available
1	WELD-CTRL, ARM, LWR, FRT, RH, 50, SL Part #: 1018817-385 Required per assembly: 1 Note: AR Currently Not Available

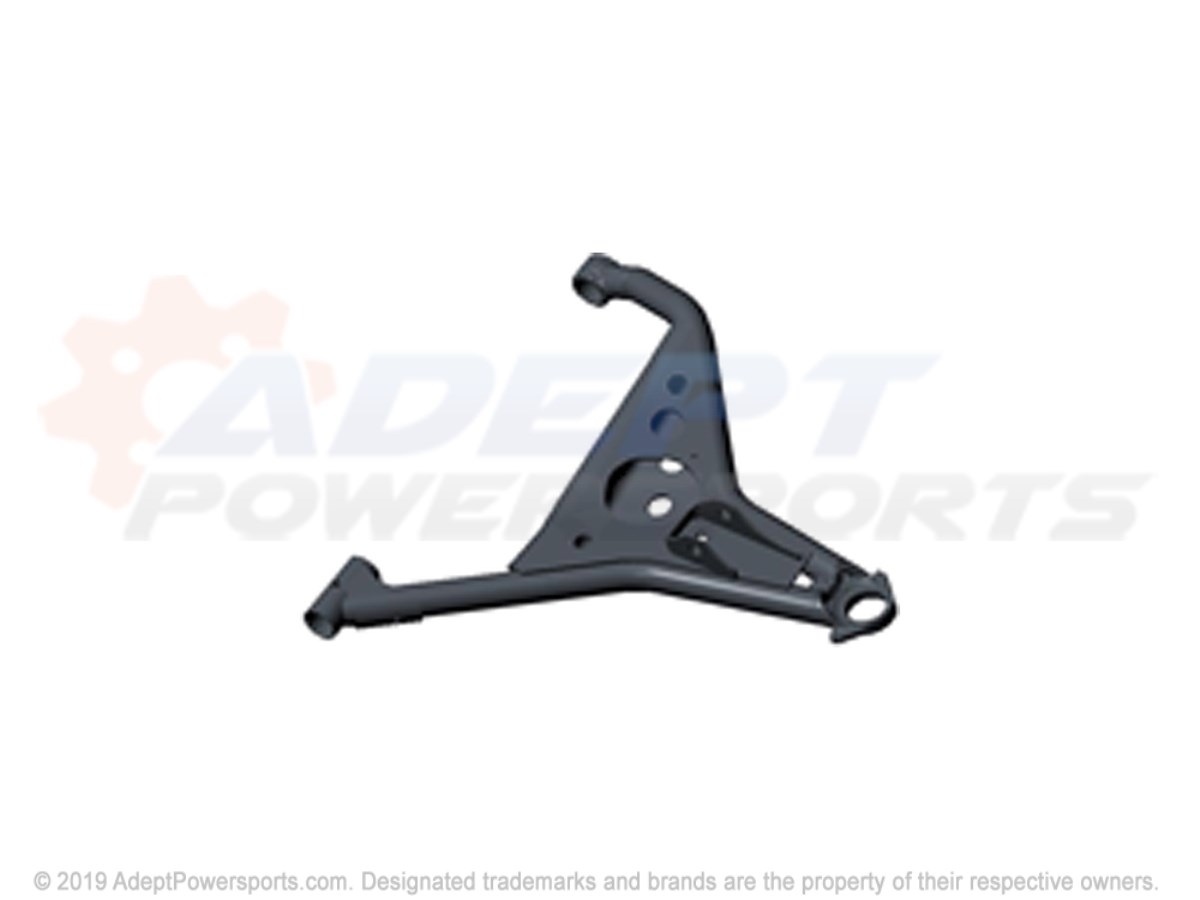

1	WELD-CTRL, ARM, LWR, FRT, LH, 50, SL Part #: 1018816-385 Required per assembly: 1 Note: AR Currently Not Available
1	WELD-CTRL, AM, LWR, FRT, LH, 50, BLK Part #: 1018816-458 Required per assembly: 1 Note: A2 Currently Not Available
2	SHAFT, PIVOT Part #: 5138797 Required per assembly: 6 Currently Not Available
3	BUSHING Part #: 5439874 Required per assembly: 12 Currently Not Available
4	BALL-JOINT, 10MM, STUD Part #: 7082507 Required per assembly: 4 Currently Not Available
5	SCREW Part #: 7519043 Required per assembly: 6 Note: Bolt Currently Not Available
6	NUT, FLANGE Part #: 7547333 Required per assembly: 12 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
7	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
8	RING, RETAINER Part #: 7710533 Required per assembly: 4 Currently Not Available

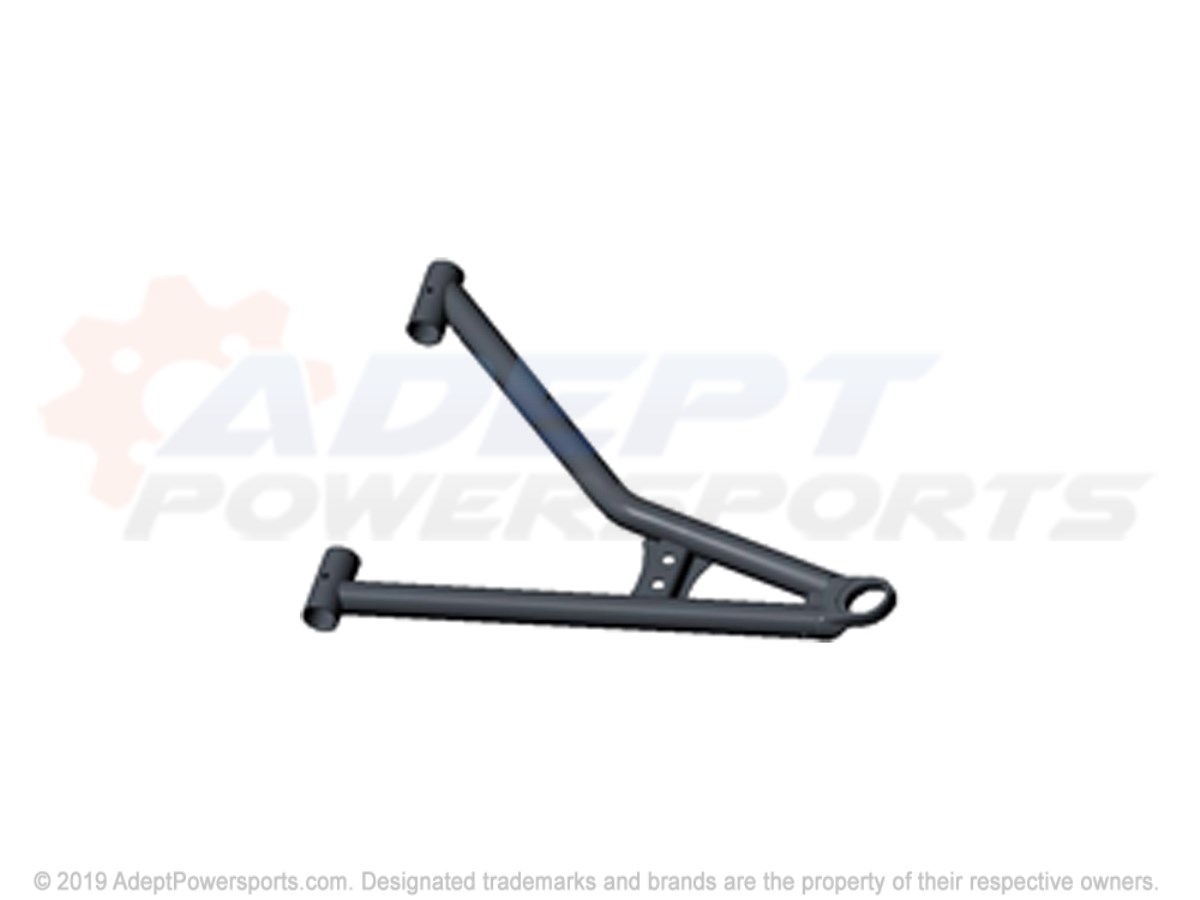

9	WELD-CTRL, AM, UPR, FRT, LH, 50, BLK Part #: 1018818-458 Required per assembly: 1 Note: A2 Currently Not Available
9	WELD-CTRL, ARM, UPR, FRT, LH, 50, SV Part #: 1018818-385 Required per assembly: 1 Note: AR Currently Not Available

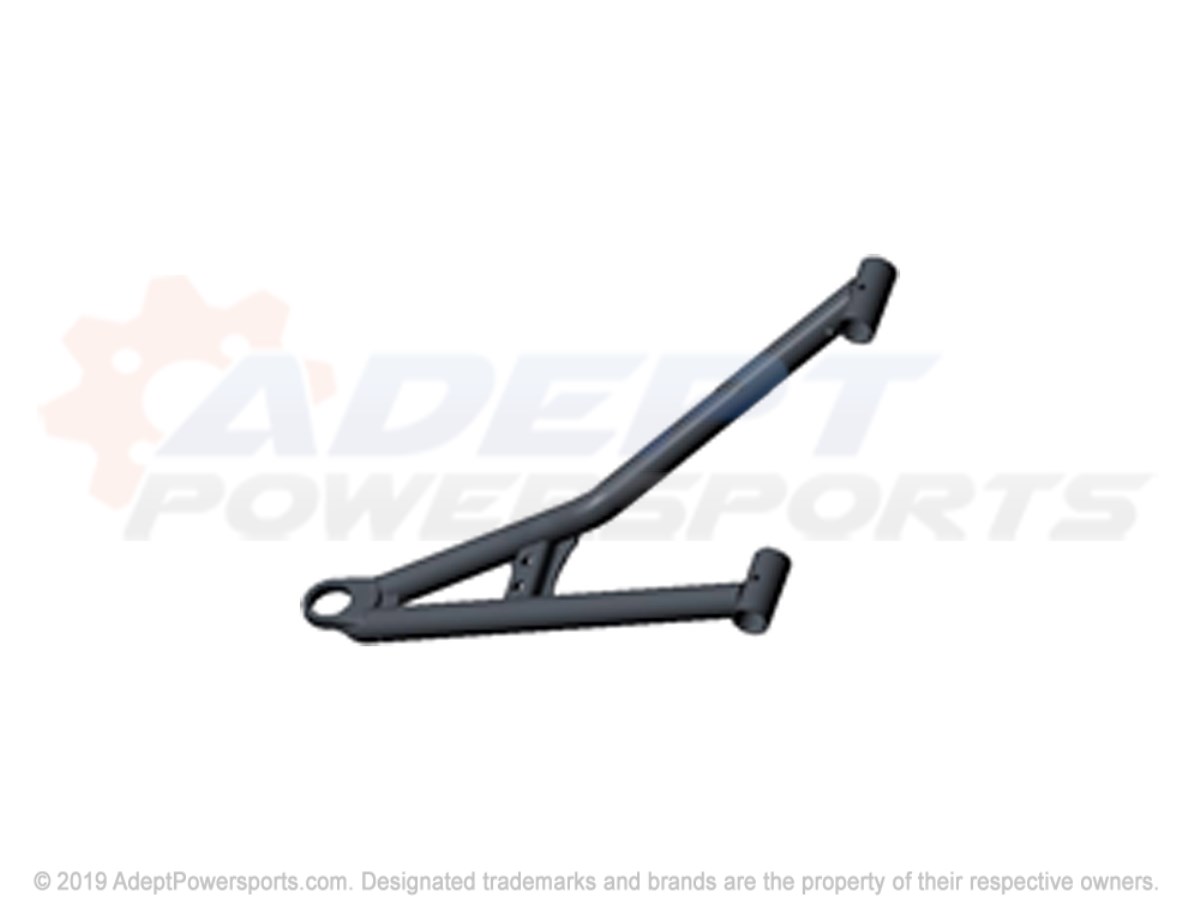

9	WELD-CTRL, AM, UPR, FRT, RH, 50, BLK Part #: 1018819-458 Required per assembly: 1 Note: A2 Currently Not Available
9	WELD-CTRL, ARM, UPR, FRT, RH, 50, SL Part #: 1018819-385 Required per assembly: 1 Note: AR Currently Not Available
10	TUBE, PIVOT Part #: 5138276 Required per assembly: 2 Note: 29.2 MM ~~$19.99~~ $11.50 - + Add to cart
11	BUSHING, CONTROL, ARM Part #: 5450095 Required per assembly: 4 Currently Not Available
12	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 2 Currently Not Available
13	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
14	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 6 Note: FITTING, ZERK (90o) Currently Not Available
