Wire Harness - Z16vbe87ab/Ar/Lb (700611) replacement parts for 2016 Polaris RZR 900 60 Inch All Options (R18)

OEM Parts Polaris 2016 Polaris RZR 900 60 Inch All Options (R18) Wire Harness - Z16vbe87ab/Ar/Lb (700611)

Wire Harness - Z16VBE87AB/AR/LB (700611) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

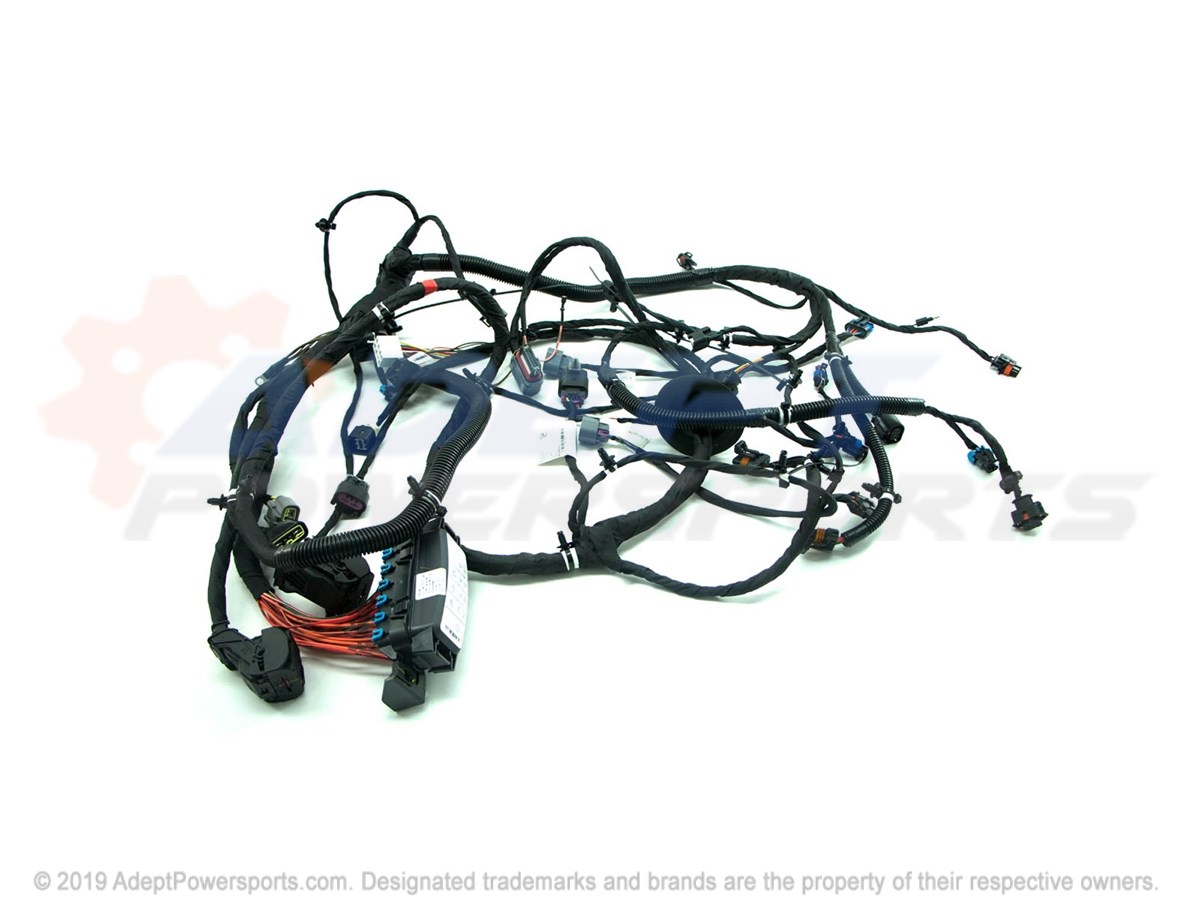

1	HARNESS-CHASSIS, RZR, 900, EPS Part #: 2413110 Required per assembly: 1 Note: INCL 2-13 Currently Not Available
2	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 2 Currently Not Available
3	LED-PANEL, MNT, 12V, BLUE Part #: 2413217 Required per assembly: 1 Currently Not Available
4	FUSE, 10AMP Part #: 2434016 Required per assembly: 6 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
5	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
6	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 5 Currently Not Available
7	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
8	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
9	GROMMET-65MM, BLK Part #: 5813954 Required per assembly: 1 Currently Not Available
10	CLIP-ROUTING Part #: 7081496 Required per assembly: 16 Currently Not Available
11	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 4 Currently Not Available
12	CLIP-ROUTING, DIN, BOX Part #: 7082020 Required per assembly: 1 Currently Not Available
13	LABEL-FUSE BOX Part #: 7179870 Required per assembly: 1 Currently Not Available
14	HARNESS-BOX, RZR Part #: 2412287 Required per assembly: 1 Currently Not Available
15	GROMMET, ELECTRICAL Part #: 5414440 Required per assembly: 1 Currently Not Available
16	SCREW Part #: 7518533 Required per assembly: 2 Note: Screw, Flange Currently Not Available
